BALL GUIDE RAIL CARBON STEEL KSE-030-SNS-H-MA-AK
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Ball guide rails Compact Line BSCL |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R205570331 be shipped?
R205570331 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R205570331 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R205570331 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R205570331, subject to availability and destination.

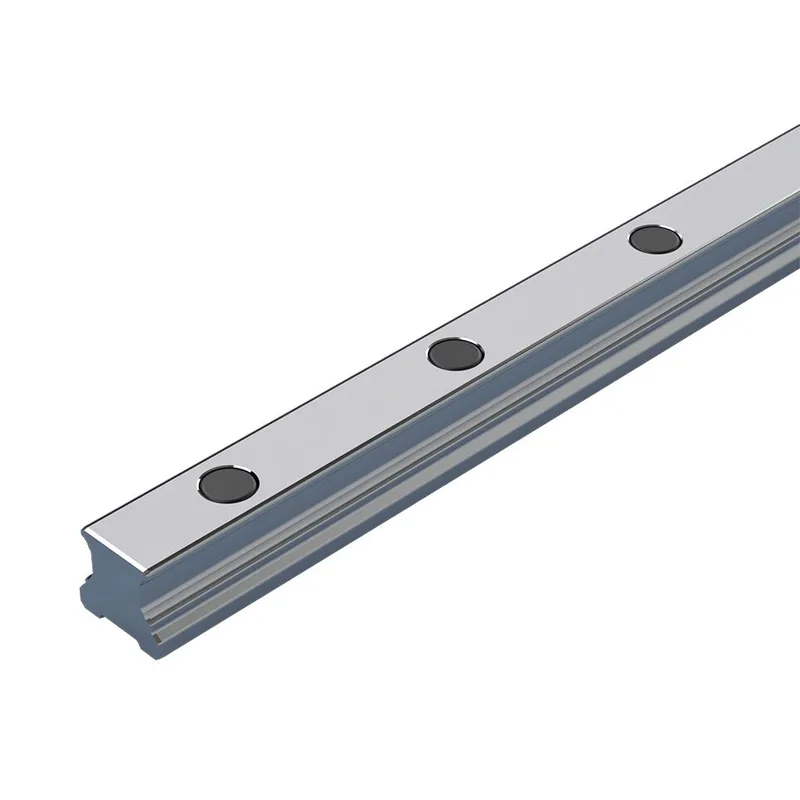

The Compact Line ball guide rail is precise and characterized by the following product features:<br>Size 30<br>Format SNS: Width = slimline, length = normal, height = standard<br>Guide rail made of carbon steel CS<br>Fastener MA: Bolting from above<br>Cover AK: Plastic caps<br>Accuracy class highly accurate<br>Number of partial sections: one-piece<br>Rail in standard version BSCL ball guide rails can be cut to the customer's desired length before delivery. The maximum lengths for a one-piece rail section can be found in the "Ball guide rails" chapter. If longer rails are required, Bosch Rexroth will supply them as multi-piece ball guide rails.
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 30 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Guide rail cover | Plastic caps |
| Max. length Lmax [mm] | 3836.0 |
| Minimum length Lmin [mm] | 104.0 |
| Number of holes nB (profiled rail systems) | 48 |
| Number of sections | 1-piece |
| Mass m (kg/m) [kg/m] | 3.6 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for a short time. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |
| Pitch T guide rail [mm] | 80 |

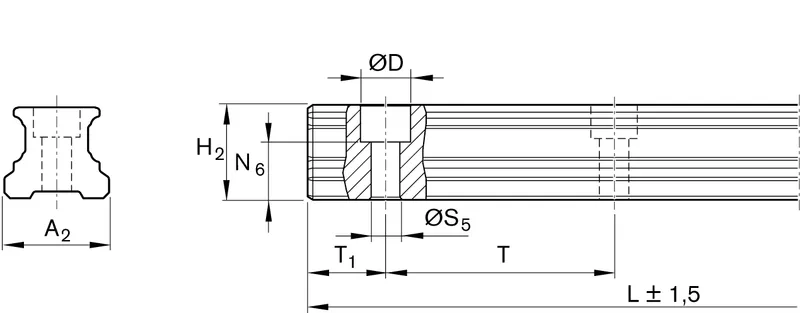

| Dimension A2 (profiled rail systems) [mm] | 28 |
| Dimension D [mm] | 15 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 23 |
| Dimension N6 (profiled rail systems) [mm] | 12 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 9 |
| Dimension T [mm] | 80 |
| Dimension T1 max (profiled rail systems) [mm] | 68 |
| Dimension T1 min [mm] | 12 |
| Dimension T1 s (profiled rail systems) [mm] | 38 |
