LINEAR-SET LSAHO-SH-25-VD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R170342570 be shipped?
R170342570 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R170342570 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R170342570 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R170342570, subject to availability and destination.

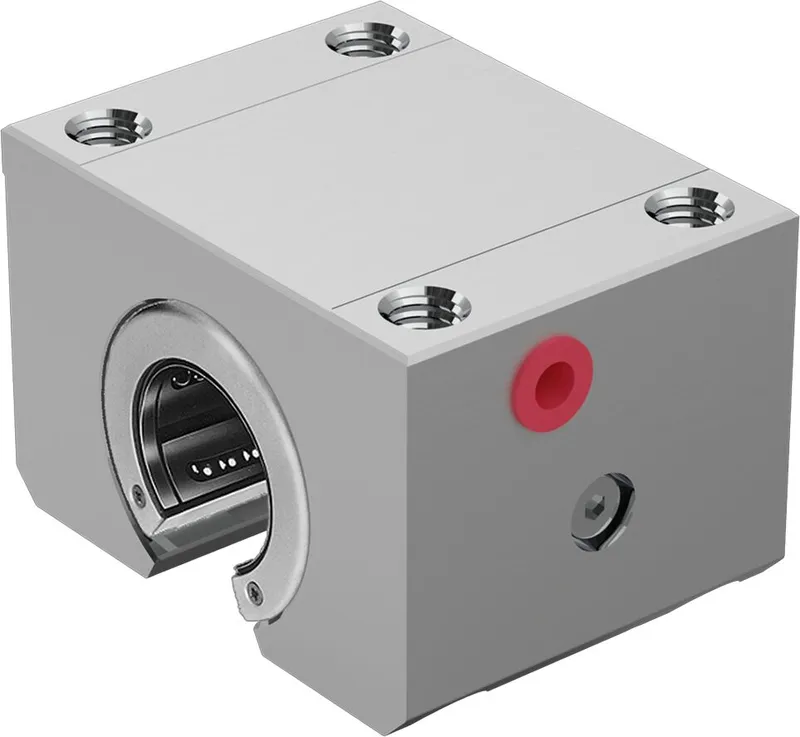

Linear set (aluminum)<br>Heavy-duty, open<br>With super LB SH<br>Shaft diameter d = 25<br>Fully sealed<br>Version: Standard Lightweight precision housing (aluminum) super linear bushings SH Compensate for misalignments of up to 30 ft Fully sealed Secured with bolt Relubricatable
Specifications
Specifications
| Shaft diameter d [mm] | 25.0 |
| Format of linear bushings | HO - Heavy-duty, open |
| Series | Super SH |
| Type | Linear set |
| Dynamic load capacity C [N] | 6190.0 |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Outer diameter D [mm] | 40.0 |
| Permissible ambient temperature (min. ... max.) | -20 °C ... +80 °C |
| Weight [kg] | 0.53 |
| Static load capacity C0 [N] | 4530.0 |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
| Footnote shaft radial clearance h6 | Clamped (fastened). |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 10.5 |
| Dimension A (profiled rail systems) [mm] | 78 |
| Dimension D [mm] | 40 |
| Dimension E1 [mm] | 60 |
| Dimension E2 [mm] | 40 |
| Dimension E3 (profiled rail systems) [mm] | 64 |
| Dimension E4 [mm] | 17 |
| Dimension H [mm] | 30.0 |
| Dimension H1 (profiled rail systems) [mm] | 51 |
| Dimension H3 [mm] | 10 |
| Dimension H4 [mm] | 4 |
| Dimension L [mm] | 59 |
| Dimension L3 [mm] | 21 |
| Dimension M [mm] | 39 |
| Dimension N1 (profiled rail systems) [mm] | 29 |
| Dimension N2 (profiled rail systems) [mm] | 22 |
| Dimension S [mm] | 8.4 |
| Dimension S2 [mm] | 6 |
| Dimension SW [mm] | 3 |
| Dimension V [mm] | 6.5 |
| Dimension W [mm] | 12 |
| Angle α [°] | 55 |
