LINEAR-SET KB-RCS-E-80-VD &

Name: LINEAR-SET KB-RCS-E-80-VD &
Brand: Bosch Rexroth
SKU: R161380000

MPN: R161380000 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear sets with linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R161380000 be shipped?

R161380000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R161380000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R161380000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161380000, subject to availability and destination.

Linear set (steel)<br>With radial LB, compact, with side opening<br>Shaft diameter d = 80<br>Fully sealed<br>Version: Standard Hardened and machined bearing pedestal made of rolling bearing steel Ball retainer made of reinforced PA Balls made of rolling bearing steel Two retaining rings Fully sealed (with integrated wiper seals and longitudinal seals)

Specifications

Shaft diameter d [mm]	80.0
Format of linear bushings	OE - Open, adjustable
Series	Radial compact set
Type	Linear bushing
Dynamic load capacity C [N]	54800.0
Note: dynamic load capacity C	The stated load capacities apply for the main direction of loading ρ = 0°.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	2.0
Radial clearance	Comes with an h5 shaft (lower limit) and set to zero-clearance before delivery
Permissible ambient temperature (min. ... max.)	-20 °C ... +100 °C
Friction coefficient μ	0.001 ... 0.002
Note: friction coefficient μ	Friction coefficients of unsealed radial linear bushings when lubricated with oil.
Weight [kg]	32.6
Static load capacity C0 [N]	61500.0
Note: static load capacity C0	The stated load capacities apply for the main direction of loading ρ = 0°.
Breakaway force [N]	60

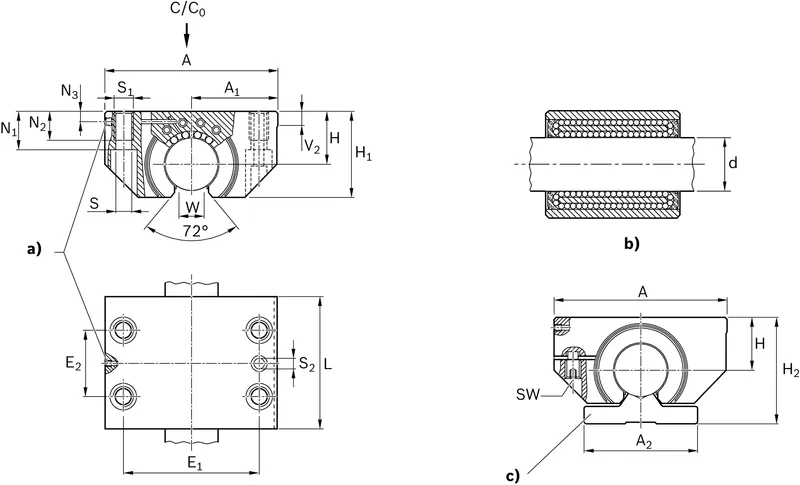

Dimension A (profiled rail systems) [mm]	260
Dimension A1 (profiled rail systems) [mm]	130
Dimension A1 tolerance [mm]	±0.008
Dimension A2 (profiled rail systems) [mm]	170
Dimension E1 [mm]	205
Dimension E2 [mm]	100
Dimension H [mm]	80.0
Dimension H1 (profiled rail systems) [mm]	130
Dimension L [mm]	200
Dimension N1 (profiled rail systems) [mm]	57
Dimension N2 (profiled rail systems) [mm]	36
Dimension N3 (profiled rail systems) [mm]	15
Dimension S [mm]	26
Dimension S2 [mm]	15.7
Dimension SW [mm]	12
Dimension V2 [mm]	16
Dimension W [mm]	39
