PILLOW BLOCK SEB-L-S 50
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball screw assemblies |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R159165020 be shipped?
R159165020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R159165020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R159165020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R159165020, subject to availability and destination.

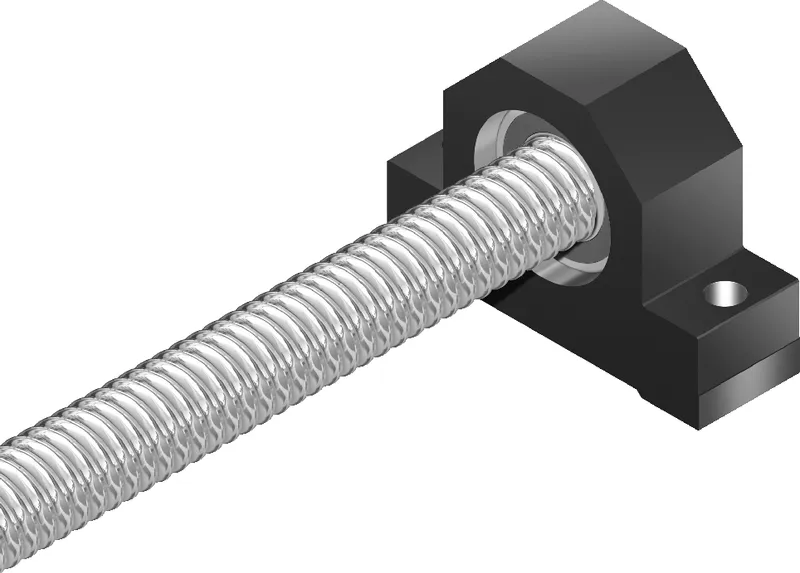

The pillow block unit consists of: Precision pillow block housing made of steel with reference edge on one side, deep-groove ball bearing DIN 625, retaining ring DIN 471, cover The pillow block unit consists of: Precision pillow block housing made of steel with reference edge on one side Deep-groove ball bearing DIN 625 Retaining ring DIN 471 Cover Suitable for screw end form 41
Specifications
Specifications
| Nominal size [mm] | 63 x 10/20/40 |
| Type | Deep-groove ball bearing according to DIN 625 |
| Dynamic load capacity C [N] | 36500.0 |
| Note: dynamic load capacity C | Load capacities (radial) |
| Weight [kg] | 5.3 |
| Static load capacity C0 [N] | 20800.0 |
| Note: static load capacity C0 | Load capacities (radial) |
| Size footnote | without cover |

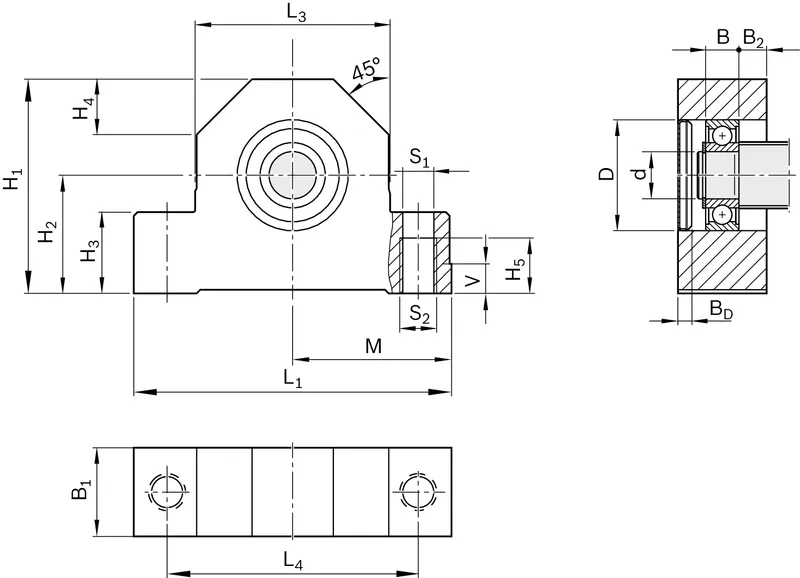

| Dimension B (profiled rail systems) [mm] | 20 |
| Dimension D [mm] | 90 |
| Dimension d [mm] | 50 |
| Dimension H1 (profiled rail systems) [mm] | 138 |
| Dimension H3 [mm] | 50 |
| Dimension H4 [mm] | 35 |
| Dimension H5 [mm] | 22 |
| Dimension L1 [mm] | 190 |
| Dimension L3 [mm] | 130 |
| Dimension L4 [mm] | 160 |
| Dimension V [mm] | 16 |
