PILLOW BLOCK SEB-F-A 35
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball screw assemblies |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R159113530 be shipped?
R159113530 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R159113530 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R159113530 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R159113530, subject to availability and destination.

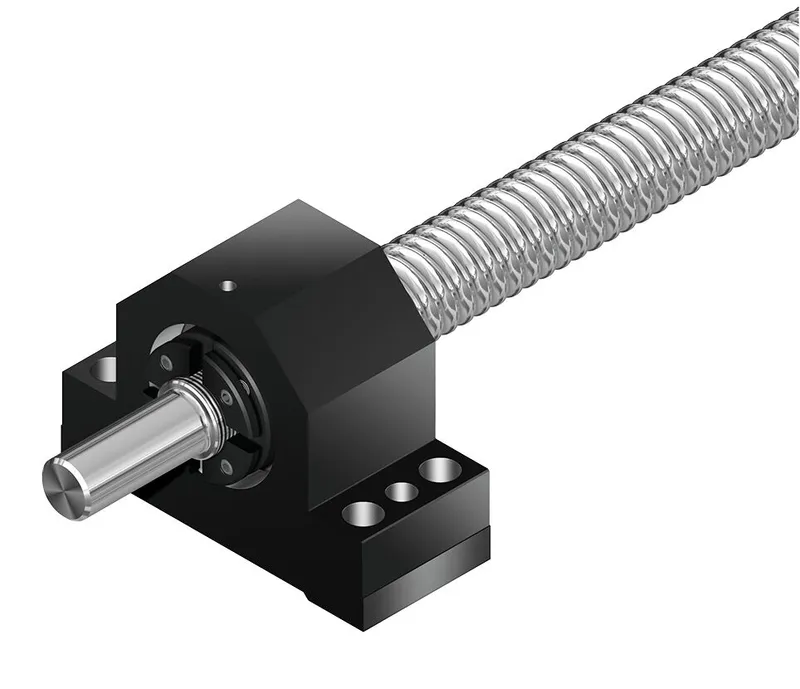

The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides, angular-contact thrust ball bearing LGN, slotted nut NMA or NMZ, threaded rings GWR The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides Angular-contact thrust ball bearing LGN Slotted nut NMA or NMZ threaded rings GWR Suitable for screw end form 51, 51A, 81, 81A, 82, 82A, 91, 91A, 92, 92A, 831, 931
Specifications
Specifications
| Nominal size [mm] | 50 x 5 |
| Type | Angular-contact thrust ball bearing |
| Tightening torque [Nm] | 40 |
| Dynamic load capacity C [N] | 41000.0 |
| Note: dynamic load capacity C | Load capacities (axial) |
| Weight [kg] | 4.86 |
| Limit speed nmin [min⁻¹] | 2000 |
| Static load capacity C0 [N] | 89000.0 |
| Note: static load capacity C0 | Load capacities (axial) |
| Rigidity of the bearing (axial) RFB [N/μm] | 900 |

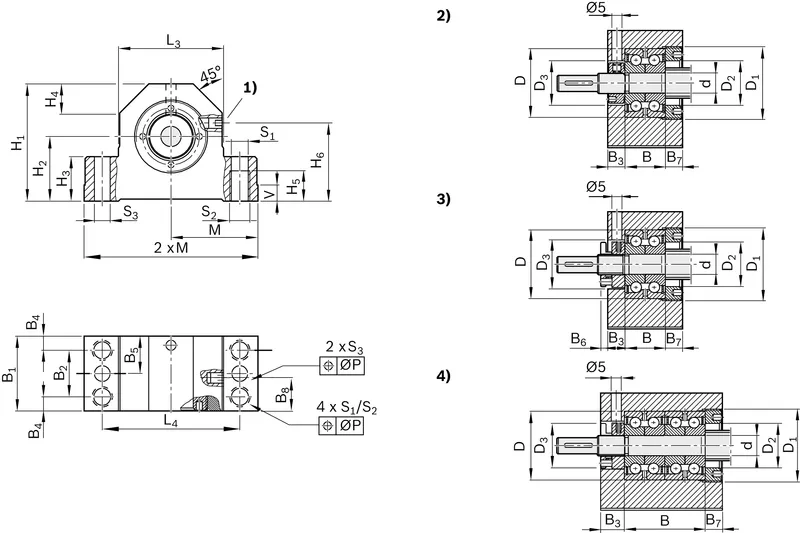

| Dimension B (profiled rail systems) [mm] | 34 |
| Dimension B3 [mm] | 20.5 |
| Dimension B4 [mm] | 13.5 |
| Dimension D [mm] | 72 |
| Dimension d [mm] | 35 |
| Dimension D2 [mm] | 54 |
| Dimension D3 [mm] | 60 |
| Dimension H1 (profiled rail systems) [mm] | 105 |
| Dimension H3 [mm] | 38 |
| Dimension H4 [mm] | 25 |
| Dimension H5 [mm] | 22 |
| Dimension H6 [mm] | 63 |
| Dimension L3 [mm] | 92 |
| Dimension L4 [mm] | 118 |
| Dimension S3 [mm] | 9.7 |
| Dimension SW [mm] | 4 |
| Dimension V [mm] | 12 |
