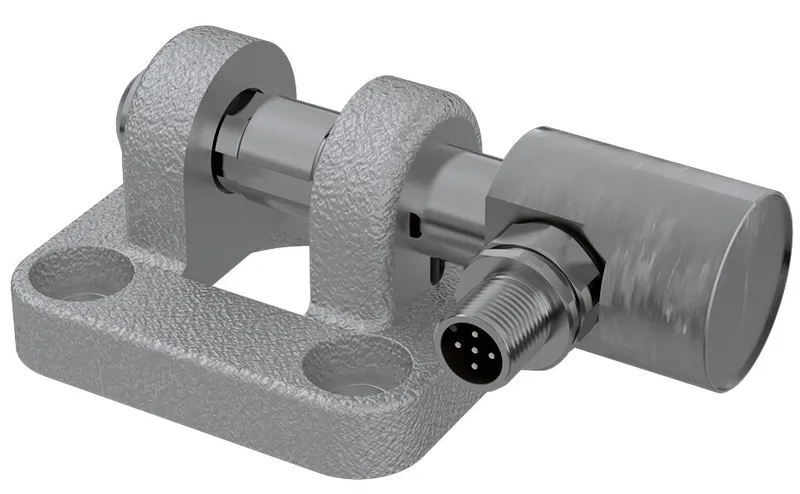

MEASURING ROD EMC63 BG

Name: MEASURING ROD EMC63 BG
Brand: Bosch Rexroth
SKU: R15614B021

MPN: R15614B021 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Fastening elements for electromechanical cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R15614B021 be shipped?

R15614B021 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R15614B021 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R15614B021 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R15614B021, subject to availability and destination.

Group 1, option 02; group 5, option 10 Material: Aluminum/galvanized spheroidal graphite iron

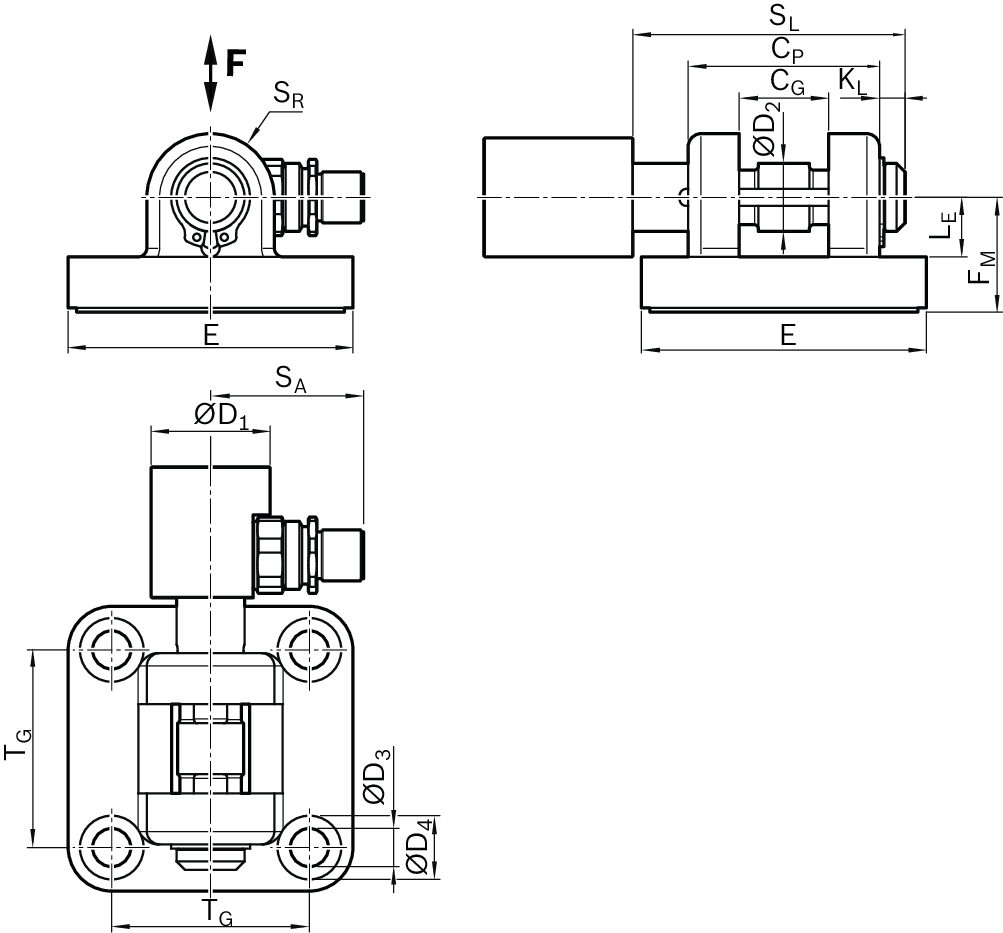

Specifications

Fastening elements for electromechanical cylinders	Clevis mount
Nominal size [mm]	63
Weight [kg]	0.88
Surface finishing	forged
Pitch T guide rail [mm]	4
Material of electromechanical cylinders	Aluminum
Dimension CG D10 [mm]	21
Dimension CP d12 [mm]	51
Dimension D1 [mm]	28
Dimension D2 f8 [mm]	16
Dimension D3 [mm]	9
Dimension D4 [mm]	15
Dimension E [mm]	77
Dimension FM [mm]	32
Dimension FM tolerance [mm]	±0.2
Dimension KL [mm]	6
Dimension LE min. [mm]	14
Dimension SA [mm]	31.5
Dimension SL [mm]	72; 72
Dimension SR [mm]	15
Dimension T [mm]	4
Dimension T tolerance [mm]	±0.2
Dimension Tg [mm]	56.5
Dimension TG [mm]	56.5
Dimension TG tolerance [mm]	±0.2
Dimension hex socket head cap screws DIN 912	M8x20 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M8
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	20
