BALL NUT FEM-E-B 8X2,5RX1,588-3

Name: BALL NUT FEM-E-B 8X2,5RX1,588-3
Brand: Bosch Rexroth
SKU: R153223006

MPN: R153223006 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Ball screw assembly nuts
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R153223006 be shipped?

R153223006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R153223006 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R153223006 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R153223006, subject to availability and destination.

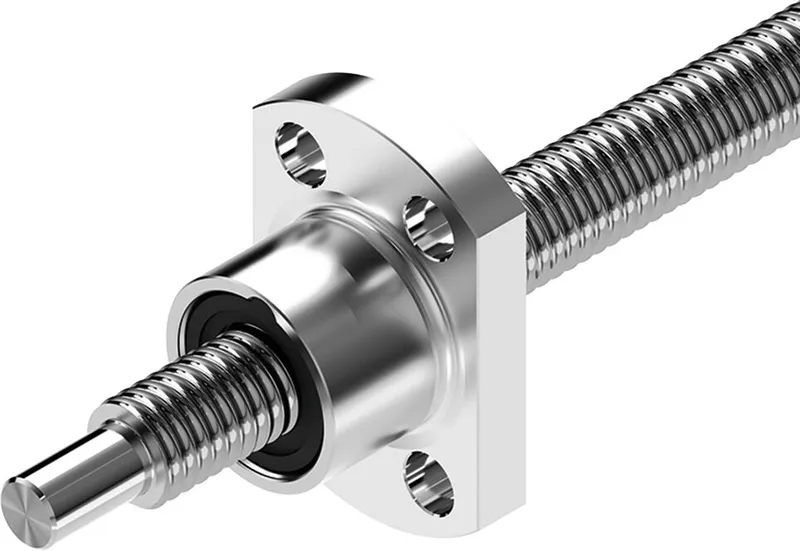

Single nut with flange FEM-E-B with standard seal and standard axial clearance<br>Nominal diameter d0 = 8<br>Lead P = 2.5 (right)<br>Ball diameter Dw = 1.588<br>Number of ball track turns i = 3 Preload class: C0, C00, C1, C2, C3 Rexroth connection dimensions flange type B With seals Preload class: C0, C00 Except for size 8 x 2.5/5 and 12 x 5/10: Preload class C1 Tolerance grade: T5, T7, T9

Specifications

Nominal size [mm]	8 x 2,5R x 1,588 - 3
Series	Miniature series
Dynamic load capacity C [N]	2640.0
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	15.0
Note: maximum permissible speed vmax	See "Characteristic speed d<sub>0 </sub>• n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed n<sub>cr</sub>" (see General Technical Notes and Information, "Project planning notes")
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Nut type	FEM-E-B single nut with flange
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Screw drive seal	With seal
Weight [kg]	0.08
Static load capacity C0 [N]	2800.0
Note: static load capacity C0	The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	A
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15

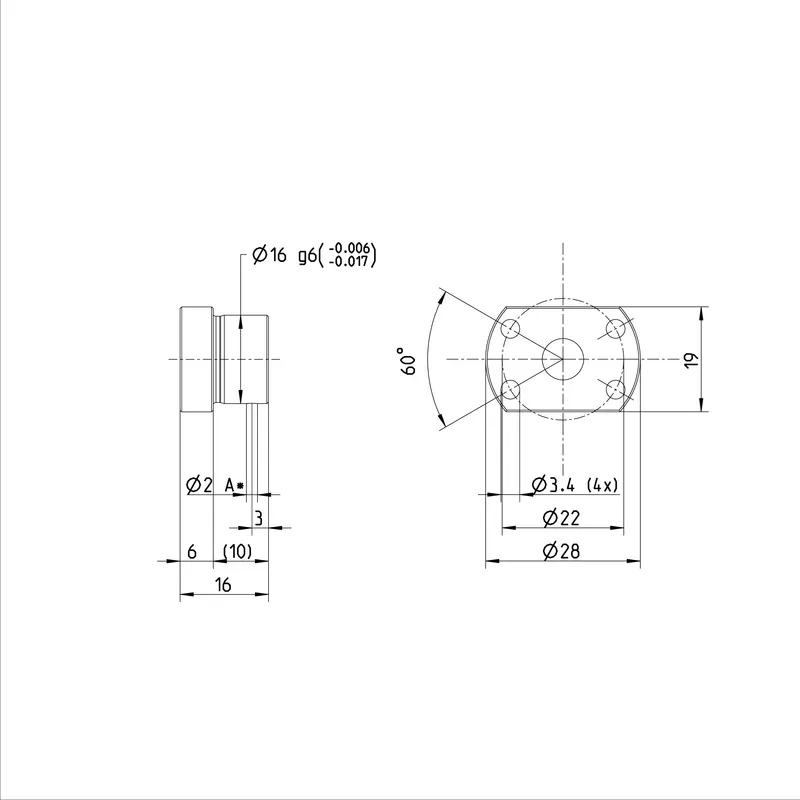

Dimension d1 [mm]	7.5
Dimension D1 g6 [mm]	16
Dimension d2 [mm]	6.3
Dimension D4 [mm]	2
Dimension D5 [mm]	28
Dimension D6 [mm]	22
Dimension D7 [mm]	3.4
Dimension L [mm]	16
Dimension L14 [mm]	19
Dimension L3 [mm]	6
Dimension L4 [mm]	10
Dimension L7 [mm]	3
