HOUSING MGD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball screw assemblies |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R150660051 be shipped?
R150660051 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R150660051 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R150660051 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R150660051, subject to availability and destination.

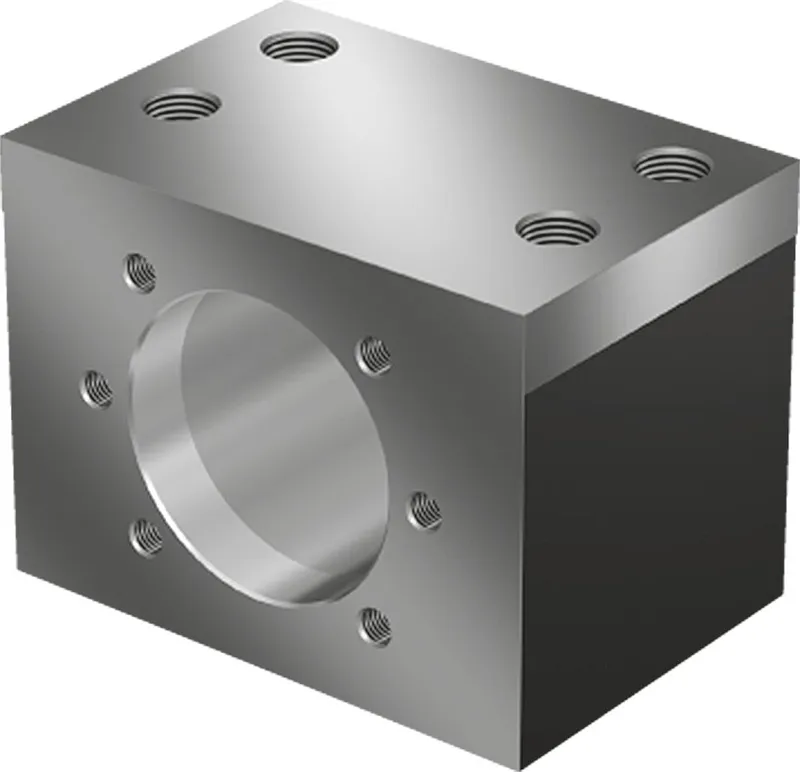

Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts, size 63x20/40 Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts
Specifications
Specifications

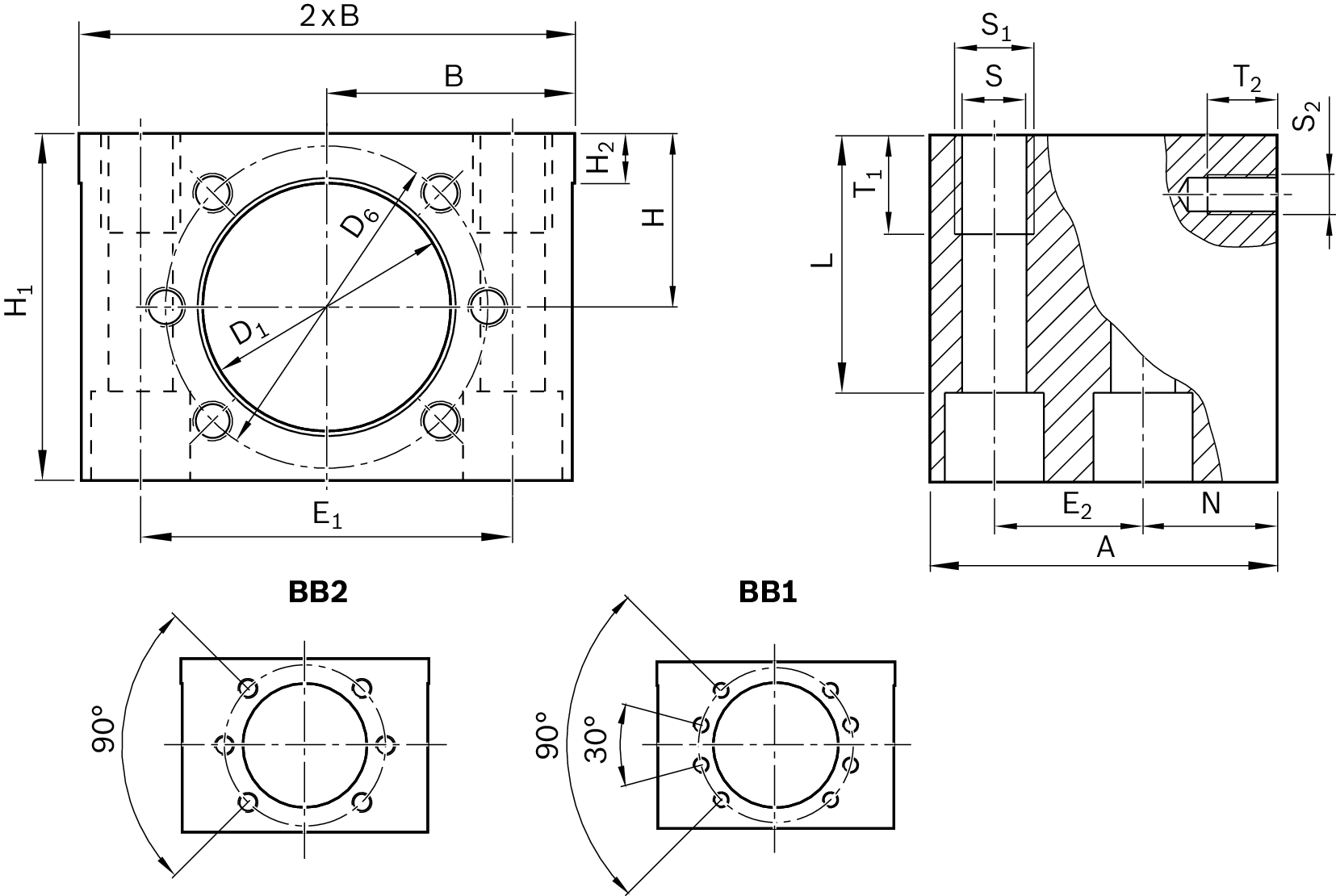

| Nominal size [mm] | 63 x 20R x 6,5; 63 x 40R x 6,5 |
| Weight [kg] | 7.52 |
| Dimension A (profiled rail systems) [mm] | 100 |
| Dimension B (profiled rail systems) [mm] | 80 |
| Dimension D1 H7 [mm] | 95 |
| Dimension D6 [mm] | 115 |
| Dimension E1 [mm] | 130 |
| Dimension E2 [mm] | 46 |
| Dimension H [mm] | 58.0 |
| Dimension H1 (profiled rail systems) [mm] | 116 |
| Dimension L [mm] | 95 |
| Dimension N [mm] | 37 |
| Dimension S [mm] | 17 |
| Dimension T1 [mm] | 30 |
| Dimension T2 [mm] | 20 |
