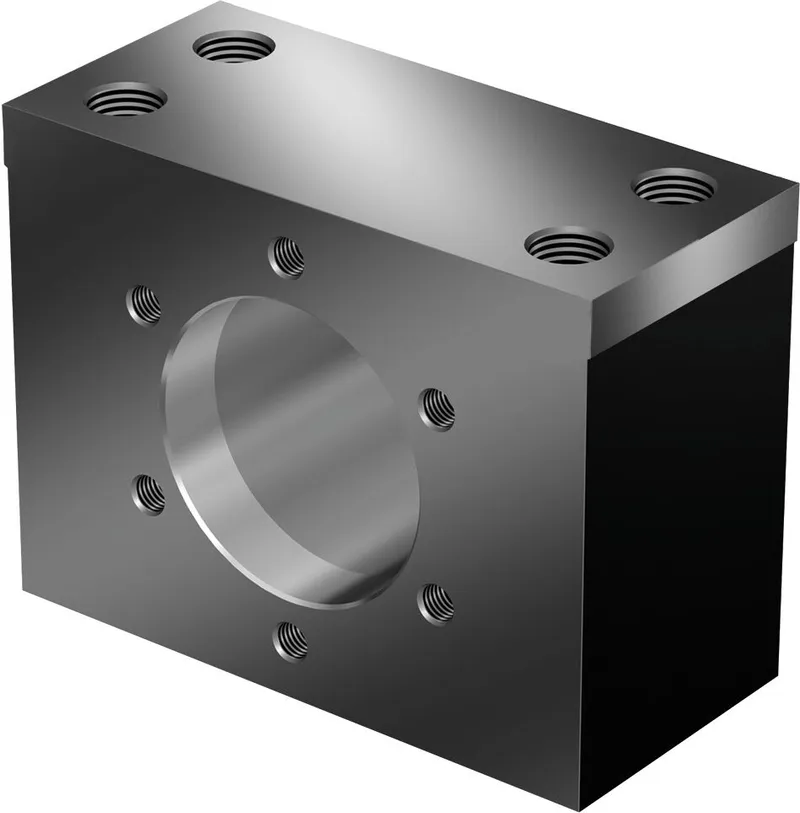

HOUSING MGS 63X10/50X20/40

Name: HOUSING MGS 63X10/50X20/40
Brand: Bosch Rexroth
SKU: R150660020

MPN: R150660020 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories for ball screw assemblies
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R150660020 be shipped?

R150660020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R150660020 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R150660020 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R150660020, subject to availability and destination.

Steel nut housings MGS are designed for FEM-E-S, FDM-E-S, FEP-E-S and SEM-E-S nuts, size 50x20/40 - 63x10 Steel nut housings MGS are designed for FEM-E-S, FDM-E-S, FEP-E-S and SEM-E-S nuts

Specifications

Nominal size [mm]	50 x 20R x 6,5; 50 x 40R x 6,5; 63 x 10R x 6
Weight [kg]	7.04

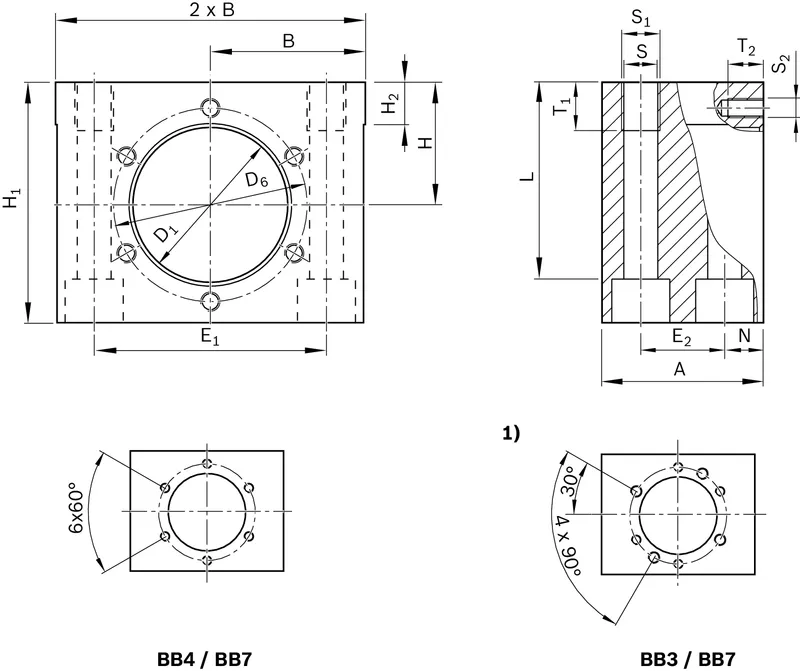

Dimension A (profiled rail systems) [mm]	80
Dimension B (profiled rail systems) [mm]	75
Dimension D1 H7 [mm]	85
Dimension D6 [mm]	105
Dimension E1 [mm]	121
Dimension E2 [mm]	46
Dimension H [mm]	65.0
Dimension H1 (profiled rail systems) [mm]	128
Dimension L [mm]	107
Dimension N [mm]	17
Dimension S [mm]	17
Dimension T1 [mm]	30
Dimension T2 [mm]	18
