LINEAR-SET LSSDR2-40-WV-X90-K
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R109654079 be shipped?
R109654079 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R109654079 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R109654079 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R109654079, subject to availability and destination.
Linear set (steel)<br>1 torque-resistant LB<br>Ball guide grooves = 2<br>Shaft diameter d = 40<br>With X90 corrosion-resistant shaft<br>L = shaft length to specification (cut)<br>Without seal<br>Version: Standard Steel precision housing Precision steel shaft with two ball guide grooves torque-resistant linear bushing Torque-transmitting, hardened steel bearing plates set to zero clearance ex works Stability against cocking loads External seals
Specifications
Specifications
| Shaft diameter d [mm] | 40.0 |
| Series | Torque |
| Type | Linear set |
| Dynamic load capacity C [N] | 6320.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 86.0 |
| Outer diameter D [mm] | 62.0 |
| Mass m (kg/m) [kg/m] | 9.8 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Static load capacity C0 [N] | 4350.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |

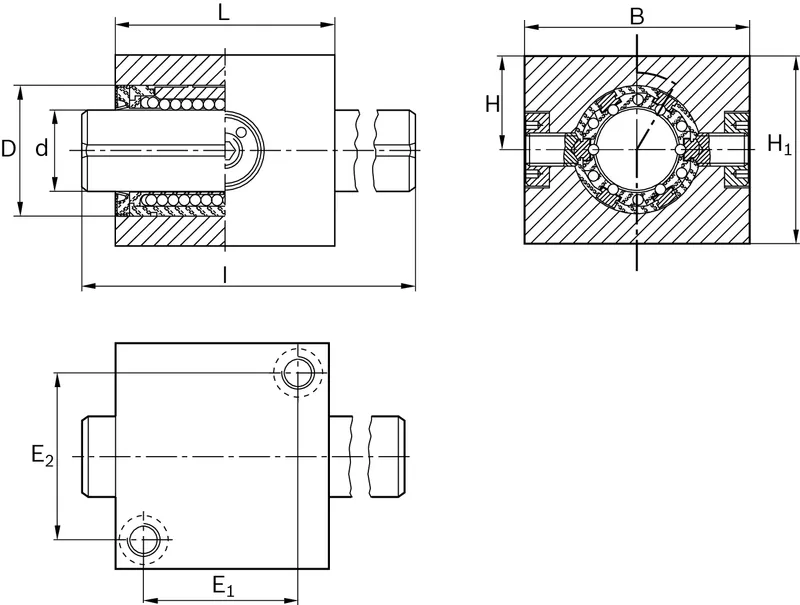

| Dimension B (profiled rail systems) [mm] | 108 |
| Dimension D [mm] | 62 |
| Dimension E1 [mm] | 64 |
| Dimension E2 [mm] | 80 |
| Dimension H [mm] | 45.0 |
| Dimension H1 (profiled rail systems) [mm] | 90 |
| Dimension L [mm] | 92 |
