LINEAR-SET LSAT-A-50-DD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R108565020 be shipped?
R108565020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R108565020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R108565020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R108565020, subject to availability and destination.

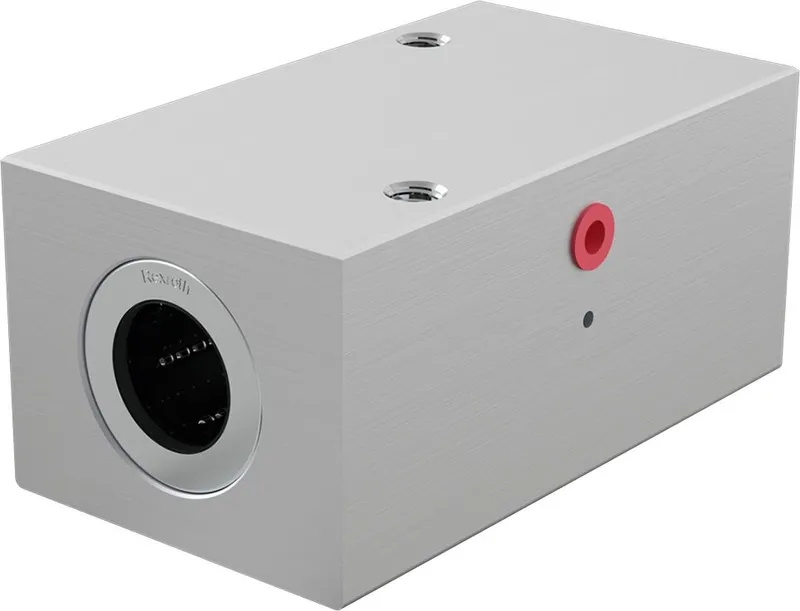

Linear set (aluminum)<br>Tandem, closed<br>With super LB A<br>Shaft diameter d = 50<br>With two seals<br>Version: Standard Lightweight precision tandem housing (aluminum) Two super linear bushings A External seals Relubricatable Also available as linear motion slide.
Specifications
Specifications
| Shaft diameter d [mm] | 50.0 |
| Format of linear bushings | T - Tandem |
| Series | Super A (with self-alignment feature) |
| Type | Linear set |
| Dynamic load capacity C [N] | 23930.0 |
| Note: dynamic load capacity C | Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 10 to 16: f = 0.82, f<sub>0</sub> = 0.86, Ø d 20 to 50: f = 0.82, f<sub>0</sub> = 0.78 |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure. |
| Dynamic longitudinal moment load capacity ML [Nm] | 1097.0 |
| Outer diameter D [mm] | 75.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 6.9 |
| Static load capacity C0 [N] | 16560.0 |
| Note: static load capacity C0 | Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 10 to 16: f = 0.82, f<sub>0</sub> = 0.86, Ø d 20 to 50: f = 0.82, f<sub>0</sub> = 0.78 |
| Static longitudinal moment load capacity ML0 [Nm] | 725 |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 10 |

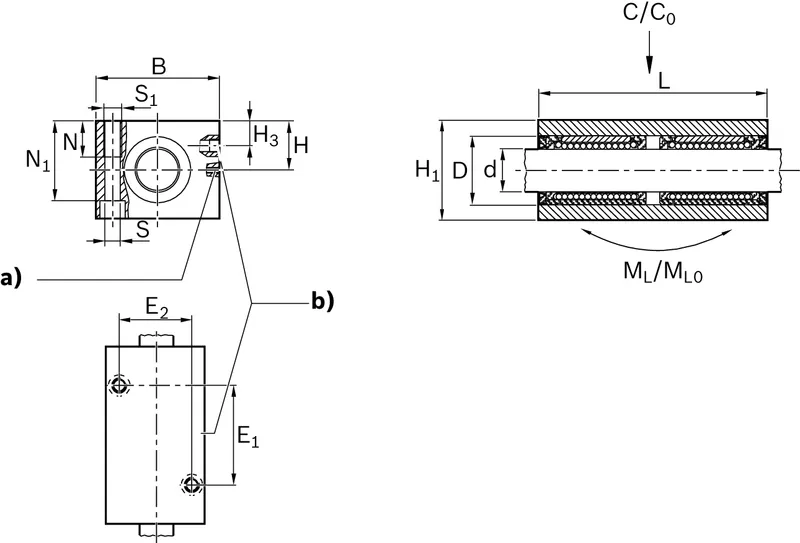

| Dimension B (profiled rail systems) [mm] | 130 |
| Dimension D [mm] | 75 |
| Dimension E1 [mm] | 125 |
| Dimension E2 [mm] | 100 |
| Dimension H [mm] | 50.0 |
| Dimension H1 (profiled rail systems) [mm] | 105 |
| Dimension H3 [mm] | 20 |
| Dimension L [mm] | 224 |
| Dimension N [mm] | 34 |
| Dimension N1 (profiled rail systems) [mm] | 89 |
| Dimension S [mm] | 13.5 |
