LINEAR-SET LSGF-A-50-DD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R108165040 be shipped?
R108165040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R108165040 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R108165040 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R108165040, subject to availability and destination.

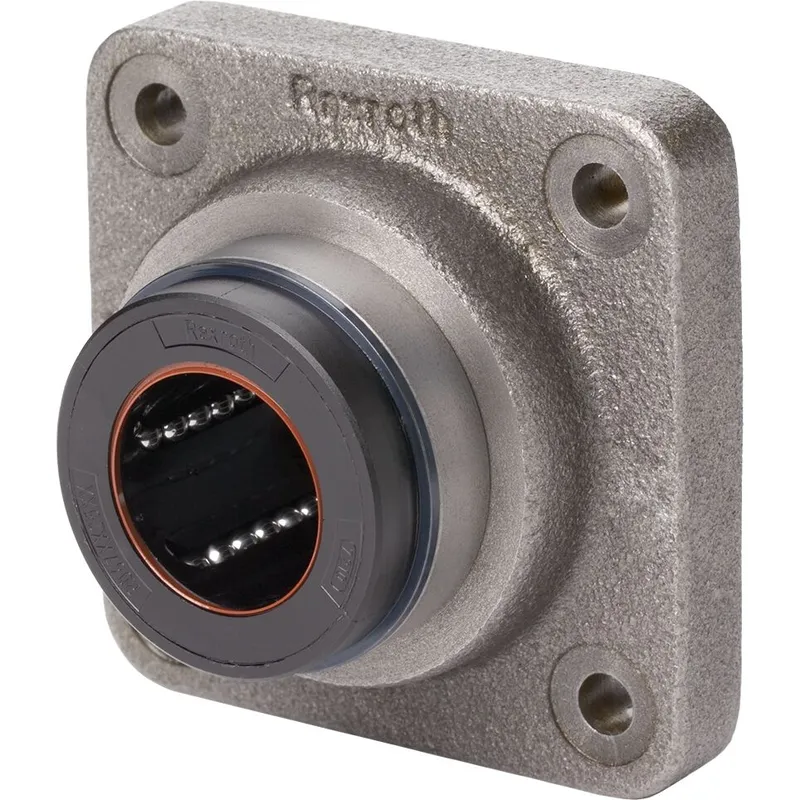

Linear set (steel)<br>Flange<br>With super LB A<br>Shaft diameter d = 50<br>With two seals<br>Version: Standard Precision flanged housing (lamellar graphite cast iron) super linear bushing A with self-alignment feature Two retaining rings with two additional spacer rings (steel) for shaft diameters 12 to 40 Integrated wiper seals Radial clearance not adjustable No initial lubrication
Specifications
Specifications
| Shaft diameter d [mm] | 50.0 |
| Format of linear bushings | F - Flange |
| Series | Super A (with self-alignment feature) |
| Type | Linear set |
| Dynamic load capacity C [N] | 12060.0 |
| Note: dynamic load capacity C | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure. |
| Outer diameter D [mm] | 75.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 3.46 |
| Static load capacity C0 [N] | 6470.0 |
| Note: static load capacity C0 | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 10 |

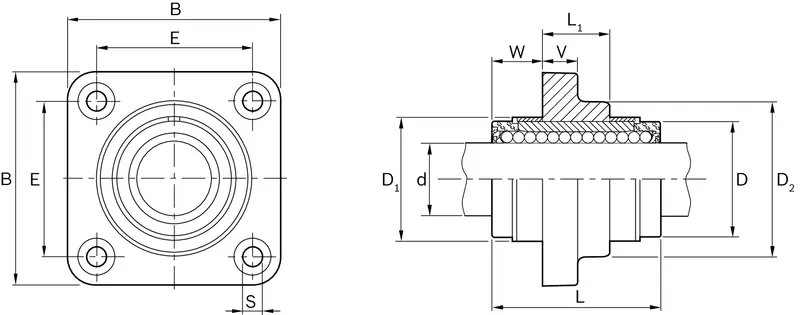

| Dimension B (profiled rail systems) [mm] | 130 |
| Dimension D [mm] | 75 |
| Dimension D1 [mm] | 81 |
| Dimension D1 tolerance | +0.8 |
| Dimension D2 [mm] | 98 |
| Dimension E [mm] | 98 |
| Dimension L [mm] | 100 |
| Dimension L1 [mm] | 72 |
| Dimension S H13 [mm] | 11 |
| Dimension V [mm] | 18 |
| Dimension W [mm] | 14 |
