LINEAR-SET LSGF-M-50
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R108115000 be shipped?
R108115000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R108115000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R108115000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R108115000, subject to availability and destination.

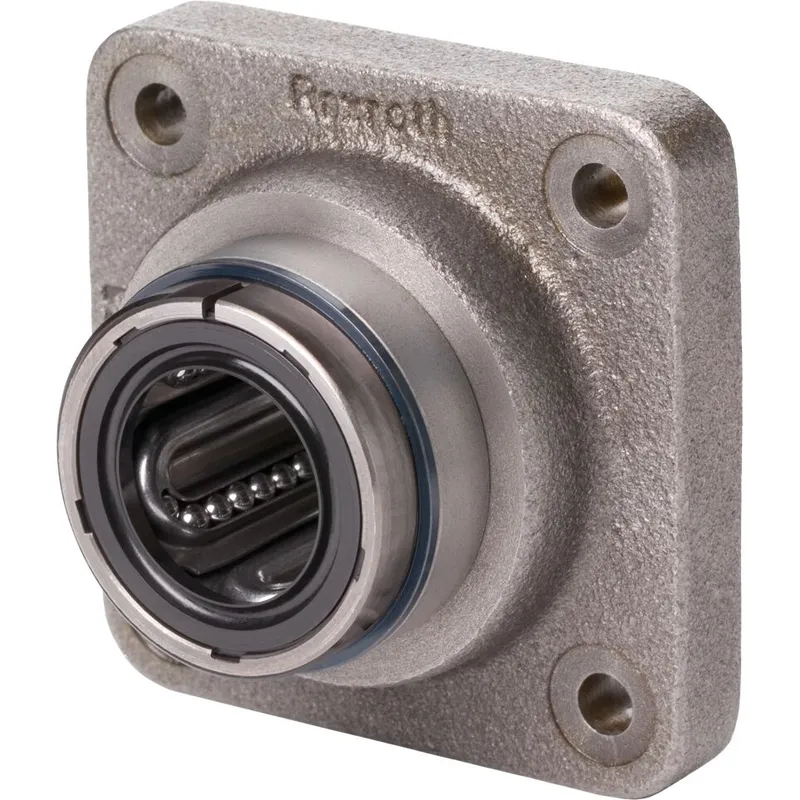

Linear set (steel)<br>Flange<br>With standard LB (metal)<br>Shaft diameter d = 50<br>Without seal<br>Version: Standard Flanged housing (lamellar graphite cast iron) Standard linear bushing with wiper seals Two retaining rings with two additional spacer rings (steel) for shaft diameters 12 to 40 Radial clearance not adjustable
Specifications
Specifications

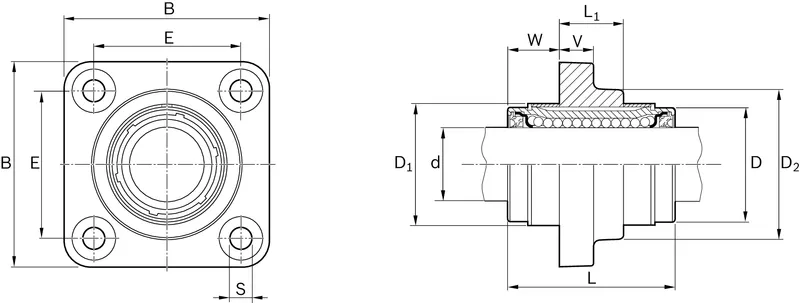

| Shaft diameter d [mm] | 50.0 |
| Format of linear bushings | F - Flange |
| Series | Standard (metal) |
| Type | Linear set |
| Dynamic load capacity C [N] | 8260.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Maximum permissible linear speed vmax [m/s] | 2.0 |
| Outer diameter D [mm] | 75.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +100 °C |
| Note: permissible ambient temperature (min. ... max.) | for standard linear bushings without wiper seals |
| Weight [kg] | 0.1 |
| Static load capacity C0 [N] | 6470.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Footnote shaft radial clearance h6 | “Determined from working bore diameter and shaft tolerance statistics. When factoring in the outer diameter of the linear bushings and the housing bore, an h6 shaft produces similar radial clearance values as specified in the “h6/H7" column under "Radial clearance" for the R0610 standard linear bushing.” |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 30 |
| Dimension B (profiled rail systems) [mm] | 130 |
| Dimension D [mm] | 75 |
| Dimension D1 [mm] | 81 |
| Dimension D1 tolerance | +0.8 |
| Dimension D2 [mm] | 98 |
| Dimension E [mm] | 98 |
| Dimension L [mm] | 100 |
| Dimension L1 [mm] | 72 |
| Dimension S H13 [mm] | 11 |
| Dimension V [mm] | 18 |
| Dimension W [mm] | 14 |
