LINEAR-SET LSRE-80-DD

Name: LINEAR-SET LSRE-80-DD
Brand: Bosch Rexroth
SKU: R107628020

MPN: R107628020 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear sets with linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R107628020 be shipped?

R107628020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R107628020 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R107628020 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R107628020, subject to availability and destination.

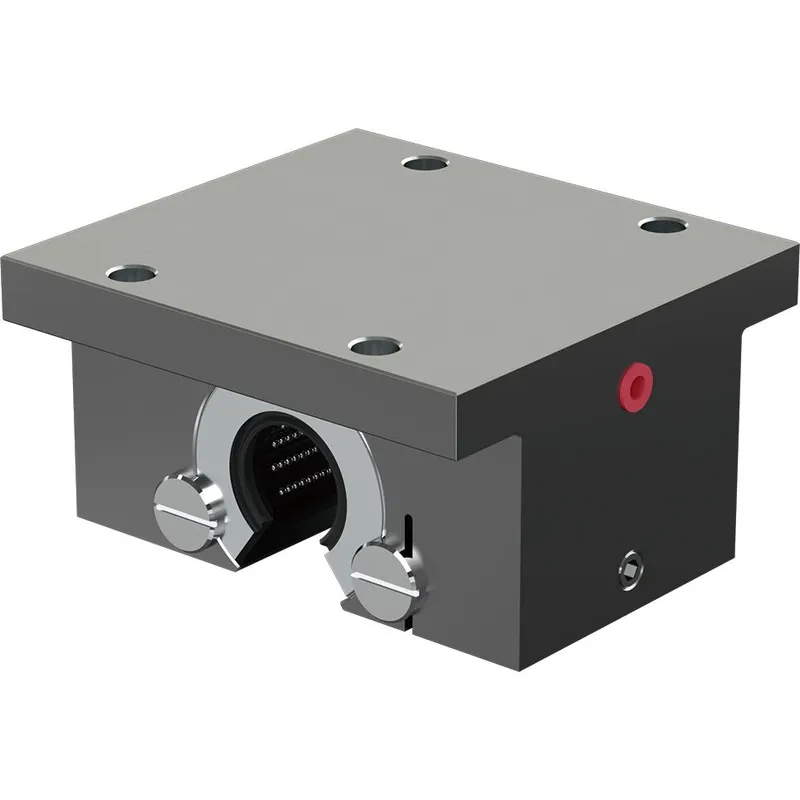

Linear set (steel)<br>With radial LB, open, adjustable<br>Shaft diameter d = 80<br>With two seals<br>Version: Standard Precision housing (steel) radial linear bushing Two wiper seals Relubricatable

Specifications

Shaft diameter d [mm]	80.0
Format of linear bushings	OE - Open, adjustable
Series	Radial, open
Type	Linear set
Dynamic load capacity C [N]	54800.0
Note: dynamic load capacity C	The stated load capacities apply for the main direction of loading ρ = 0°.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	2.0
Radial clearance	Comes with an h5 shaft (lower limit) and set to zero-clearance before delivery
Outer diameter D [mm]	145.0
Permissible ambient temperature (min. ... max.)	-20 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	short-time 100 °C
Weight [kg]	75
Static load capacity C0 [N]	61500.0
Note: static load capacity C0	The stated load capacities apply for the main direction of loading ρ = 0°.
Breakaway force [N]	60
Product information	Please ask for delivery time!

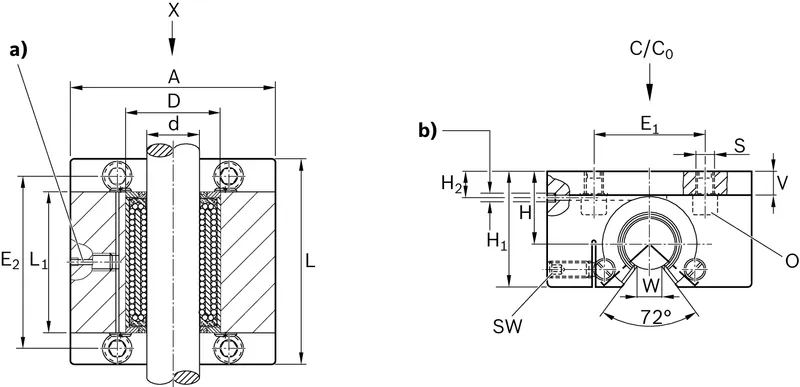

Dimension A js16 [mm]	310
Dimension D [mm]	145
Dimension E1 [mm]	170
Dimension E2 [mm]	260
Dimension H [mm]	110.0
Dimension H1 js16 [mm]	175
Dimension L js16 [mm]	310
Dimension L1 [mm]	213
Dimension O thread diameter x lead [mm]	M24x80
Dimension S H13 [mm]	26
Dimension SW [mm]	12
Dimension V js16 [mm]	35
Dimension W [mm]	39
