LINEAR-SET LSASE-M-50-DD

Name: LINEAR-SET LSASE-M-50-DD
Brand: Bosch Rexroth
SKU: R107225000

MPN: R107225000 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear sets with linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R107225000 be shipped?

R107225000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R107225000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R107225000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R107225000, subject to availability and destination.

Linear set (aluminum) Side opening, adjustable With standard LB (metal) Shaft diameter d = 50 With two seals Version: Standard Lightweight precision housing (aluminum) standard linear bushing Secured by grooved taper pin External seals No lube port

Specifications

Shaft diameter d [mm]	50.0
Format of linear bushings	SE - With side opening, adjustable
Series	Standard (metal)
Type	Linear set
Dynamic load capacity C [N]	8470.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	2.0
Radial clearance	Clamped to h5 shaft (lower limit) and set to zero-clearance before delivery
Outer diameter D [mm]	75.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	3.71
Static load capacity C0 [N]	6900.0
Note: static load capacity C0	The load capacities apply for the main direction of loading.
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	40

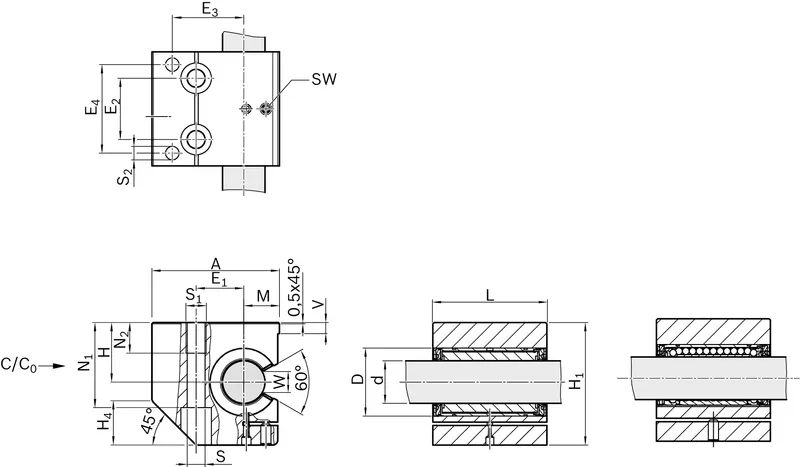

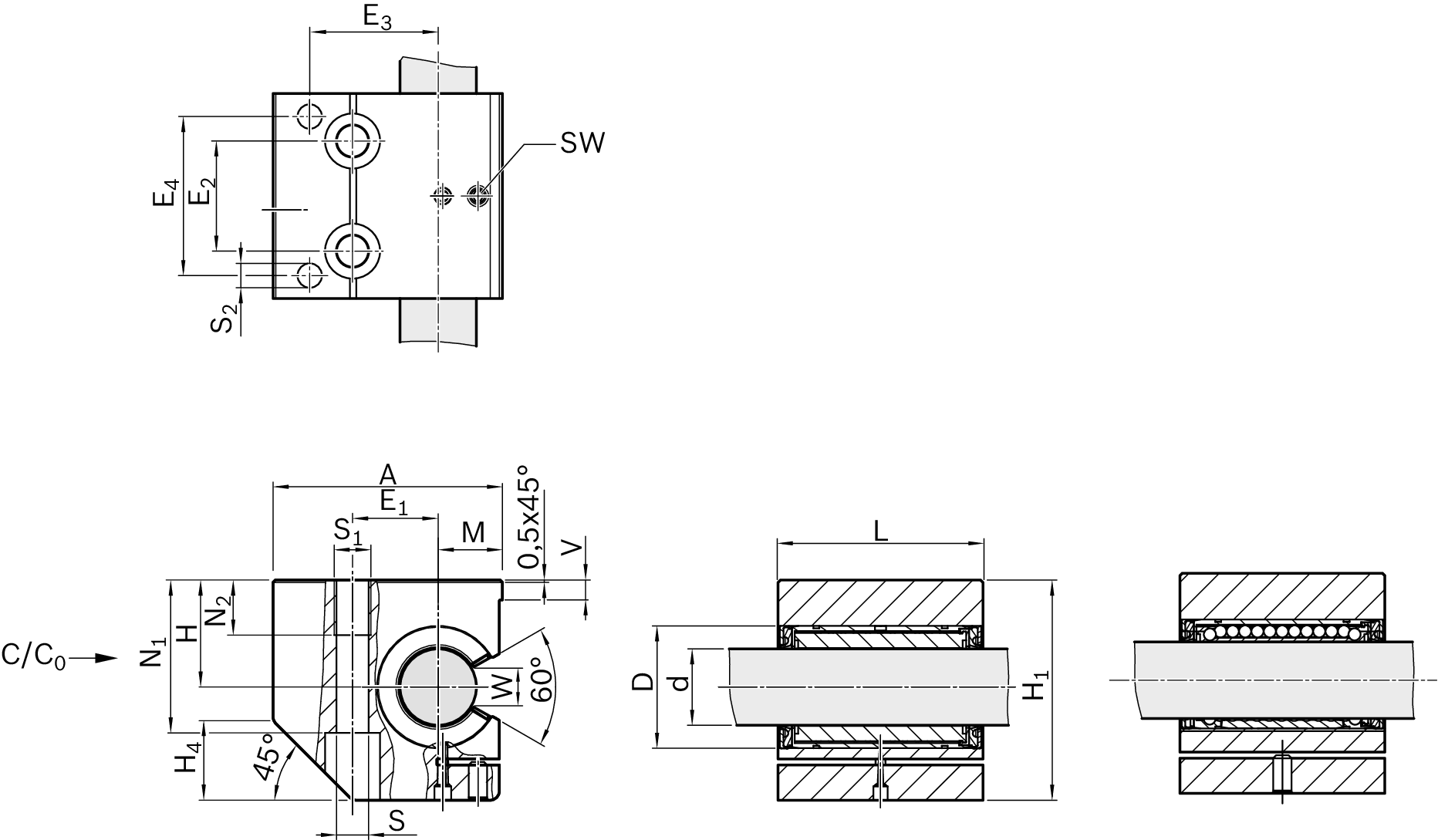

Dimension A (profiled rail systems) [mm]	127
Dimension D [mm]	75
Dimension E1 [mm]	50
Dimension E2 [mm]	62
Dimension E3 (profiled rail systems) [mm]	70
Dimension E4 [mm]	85
Dimension H [mm]	50.0
Dimension H1 (profiled rail systems) [mm]	115
Dimension H4 [mm]	45
Dimension L [mm]	113
Dimension M [mm]	38
Dimension N1 (profiled rail systems) [mm]	78
Dimension N2 (profiled rail systems) [mm]	30
Dimension S [mm]	17.5
Dimension S2 [mm]	12
Dimension SW [mm]	5
Dimension V [mm]	12
Dimension W [mm]	21
