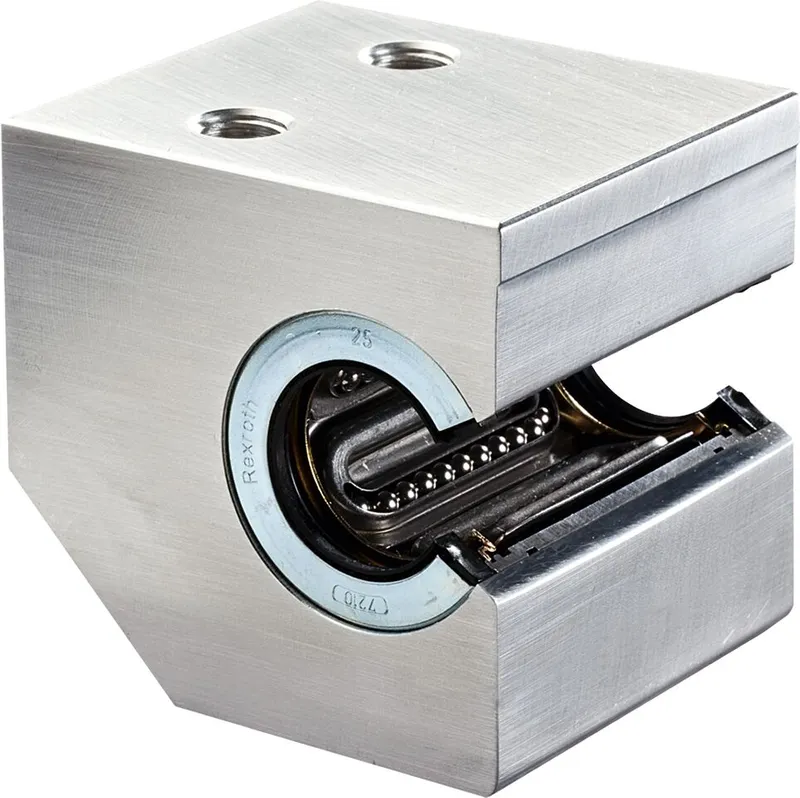

LINEAR-SET LSAS-M-25-DD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R107122500 be shipped?
R107122500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R107122500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R107122500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R107122500, subject to availability and destination.
Linear set (aluminum)<br>Side opening<br>With standard LB (metal)<br>Shaft diameter d = 25<br>With two seals<br>Version: Standard Lightweight precision housing (aluminum) standard linear bushing Secured by grooved taper pin External seals No lube port
Specifications
Specifications
| Shaft diameter d [mm] | 25.0 |
| Format of linear bushings | S - With side opening |
| Series | Standard (metal) |
| Type | Linear set |
| Dynamic load capacity C [N] | 2270.0 |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Outer diameter D [mm] | 40.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.83 |
| Static load capacity C0 [N] | 1750.0 |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
| Footnote shaft radial clearance h6 | Clamped (fastened). |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 19 |
| Dimension A (profiled rail systems) [mm] | 75 |
| Dimension D [mm] | 40 |
| Dimension E1 [mm] | 28 |
| Dimension E2 [mm] | 36 |
| Dimension E3 (profiled rail systems) [mm] | 42 |
| Dimension E4 [mm] | 52 |
| Dimension H [mm] | 35.0 |
| Dimension H1 (profiled rail systems) [mm] | 72 |
| Dimension H4 [mm] | 26 |
| Dimension L [mm] | 67 |
| Dimension M [mm] | 21 |
| Dimension N1 (profiled rail systems) [mm] | 50 |
| Dimension N2 (profiled rail systems) [mm] | 18 |
| Dimension S [mm] | 10.5 |
| Dimension S2 [mm] | 8 |
| Dimension SW [mm] | 3 |
| Dimension V [mm] | 6.5 |
| Dimension W [mm] | 12.5 |
