LINEAR-SET LSGOE-A-20-DD

Name: LINEAR-SET LSGOE-A-20-DD
Brand: Bosch Rexroth
SKU: R106862040

MPN: R106862040 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear sets with linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R106862040 be shipped?

R106862040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R106862040 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R106862040 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R106862040, subject to availability and destination.

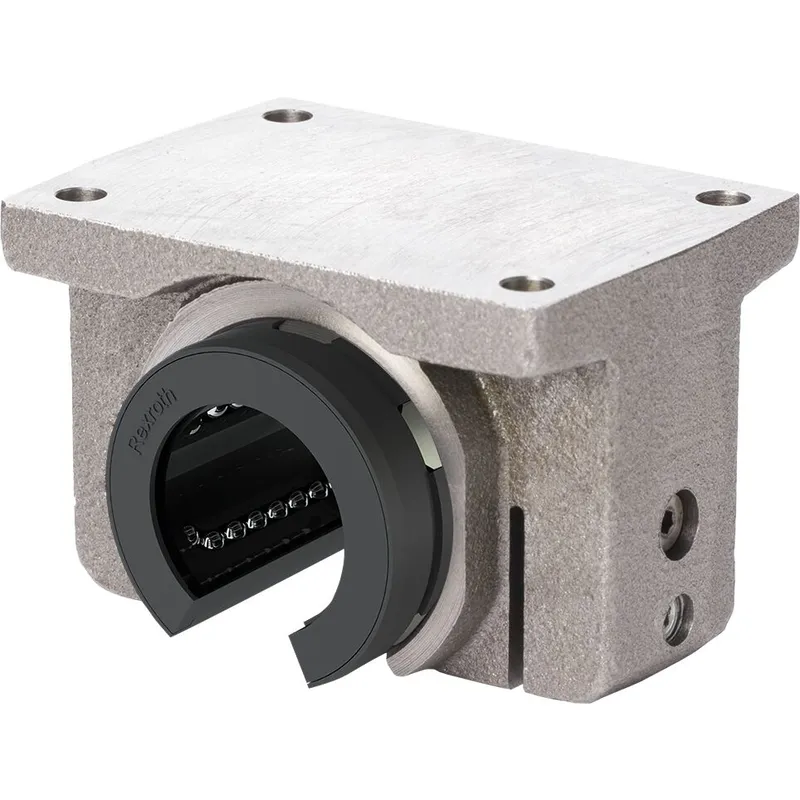

Linear set (steel) Open, adjustable With super LB A Shaft diameter d = 20 With two seals Version: Standard Precision housing (spheroidal graphite cast iron/steel) super linear bushing A with self-alignment feature Secured with locating screw Integrated wiper seals

Specifications

Shaft diameter d [mm]	20.0
Format of linear bushings	OE - Open, adjustable
Series	Super A (with self-alignment feature)
Type	Linear set
Dynamic load capacity C [N]	2570.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Note: maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure.
Radial clearance	Clamped to h5 shaft (lower limit) and set to zero-clearance before delivery
Outer diameter D [mm]	32.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.38
Static load capacity C0 [N]	1180.0
Note: static load capacity C0	The load capacities apply for the main direction of loading.
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	3

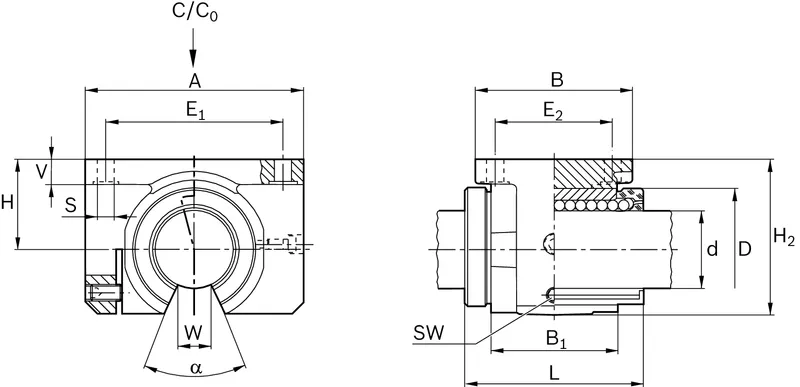

Dimension A (profiled rail systems) [mm]	60
Dimension B (profiled rail systems) [mm]	42
Dimension B1 [mm]	28
Dimension D [mm]	32
Dimension E1 [mm]	45
Dimension E2 [mm]	32
Dimension H [mm]	25.0
Dimension L [mm]	45
Dimension S [mm]	4.5
Dimension SW [mm]	2.5
Dimension V [mm]	8
Dimension W [mm]	9
Angle α [°]	55
