LINEAR-SET LSGO-M-50
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R106715000 be shipped?
R106715000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R106715000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R106715000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R106715000, subject to availability and destination.

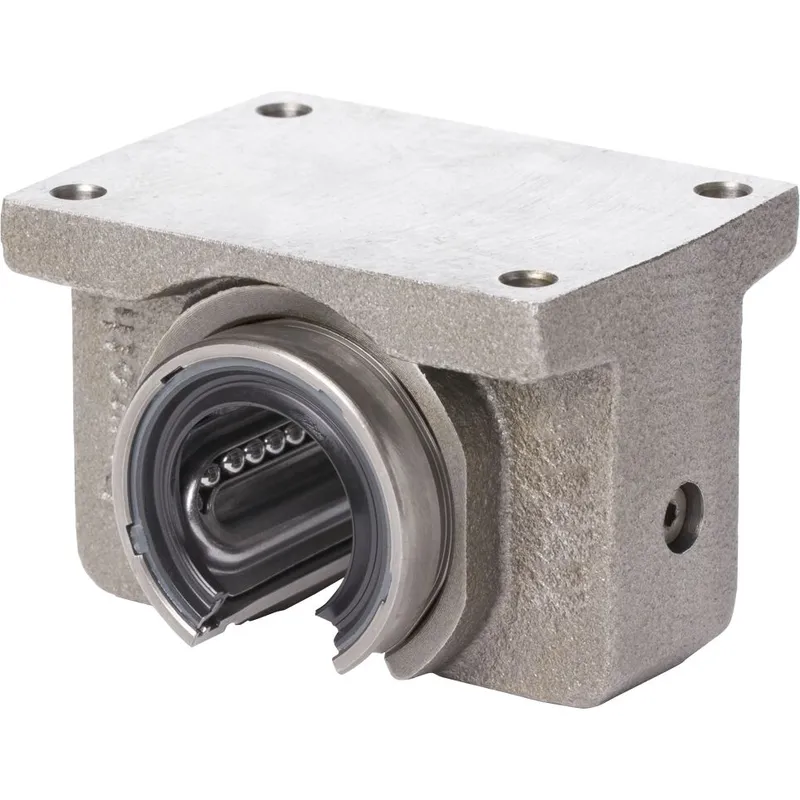

Linear set (steel)<br>Open<br>With standard LB (metal)<br>Shaft diameter d = 50<br>Without seal<br>Version: Standard Precision housing (lamellar graphite cast iron/steel) Standard linear bushing with wiper seals Secured with locating screw
Specifications
Specifications
| Shaft diameter d [mm] | 50.0 |
| Format of linear bushings | O - Open |
| Series | Standard (metal) |
| Type | Linear set |
| Dynamic load capacity C [N] | 8470.0 |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Maximum permissible linear speed vmax [m/s] | 2.0 |
| Outer diameter D [mm] | 75.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +100 °C |
| Note: permissible ambient temperature (min. ... max.) | for standard linear bushings without wiper seals |
| Weight [kg] | 3.09 |
| Static load capacity C0 [N] | 6900.0 |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 40 |

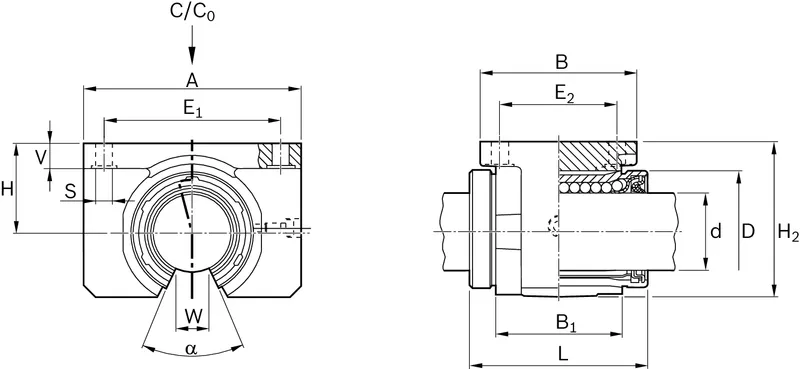

| Dimension A (profiled rail systems) [mm] | 130 |
| Dimension B (profiled rail systems) [mm] | 70 |
| Dimension B1 [mm] | 72 |
| Dimension D [mm] | 75 |
| Dimension E1 [mm] | 108 |
| Dimension E2 [mm] | 50 |
| Dimension H [mm] | 50.0 |
| Dimension L [mm] | 100 |
| Dimension S [mm] | 9 |
| Dimension V [mm] | 14 |
| Dimension W [mm] | 21 |
| Angle α [°] | 50 |
