LINEAR-SET LSG-B-40-DD

Name: LINEAR-SET LSG-B-40-DD
Brand: Bosch Rexroth
SKU: R106584040

MPN: R106584040 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear sets with linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R106584040 be shipped?

R106584040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R106584040 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R106584040 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R106584040, subject to availability and destination.

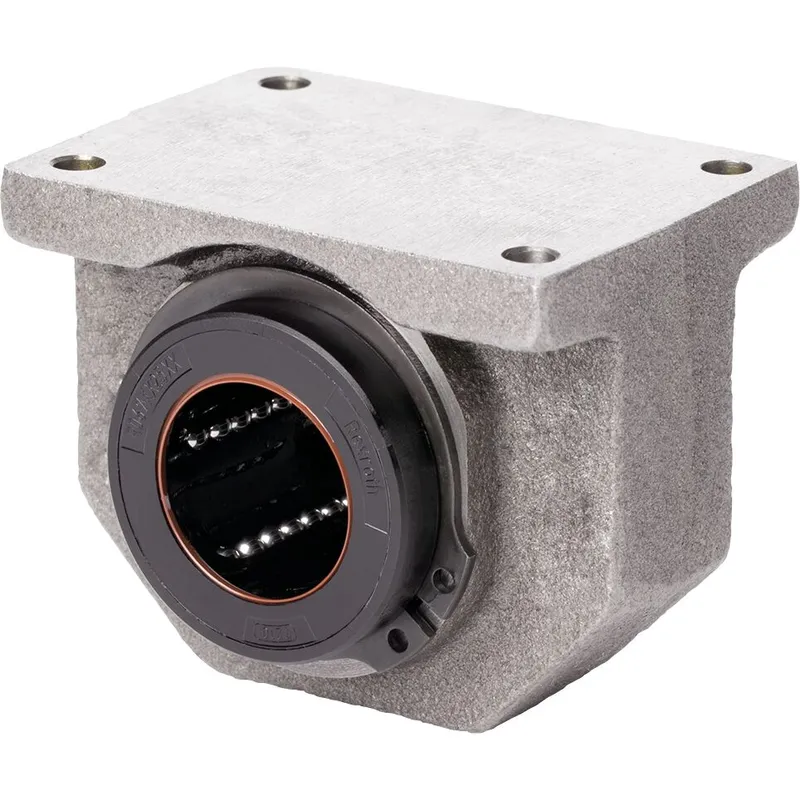

Linear set (steel) Closed With super LB B Shaft diameter d = 40 With two seals Version: Standard Precision housing (lamellar graphite cast iron/steel) super linear bushing B without self-alignment feature Integrated wiper seals

Specifications

Shaft diameter d [mm]	40.0
Format of linear bushings	– Closed
Series	Super B (no self-alignment feature)
Type	Linear set
Dynamic load capacity C [N]	10070.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 12 and 16: f = 0.82, f<sub>0</sub> = 0.86, Ø d 20 to 50: f = 0.82, f<sub>0</sub> = 0.78
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Outer diameter D [mm]	62.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	2.35
Static load capacity C0 [N]	5570.0
Note: static load capacity C0	The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 12 and 16: f = 0.82, f<sub>0</sub> = 0.86, Ø d 20 to 50: f = 0.82, f<sub>0</sub> = 0.78
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	8

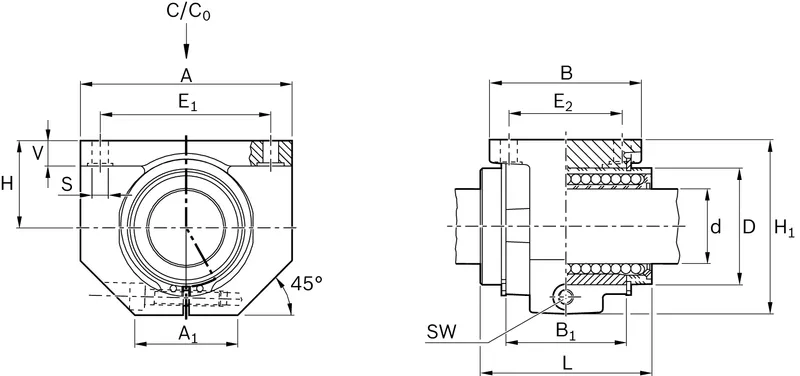

Dimension A (profiled rail systems) [mm]	108
Dimension A1 (profiled rail systems) [mm]	51
Dimension B (profiled rail systems) [mm]	78
Dimension B1 [mm]	56
Dimension D [mm]	62
Dimension E1 [mm]	86
Dimension E2 [mm]	58
Dimension H [mm]	45.0
Dimension H1 (profiled rail systems) [mm]	90
Dimension L [mm]	80
Dimension S [mm]	9
Dimension SW [mm]	6
Dimension V [mm]	12
Footnote Dimension H1	Tolerance ISO 8062-3 - DCTG 9.
