LINEAR-SET LSK-20-DD-NR

Name: LINEAR-SET LSK-20-DD-NR
Brand: Bosch Rexroth
SKU: R106022020

MPN: R106022020 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear sets with linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R106022020 be shipped?

R106022020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R106022020 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R106022020 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R106022020, subject to availability and destination.

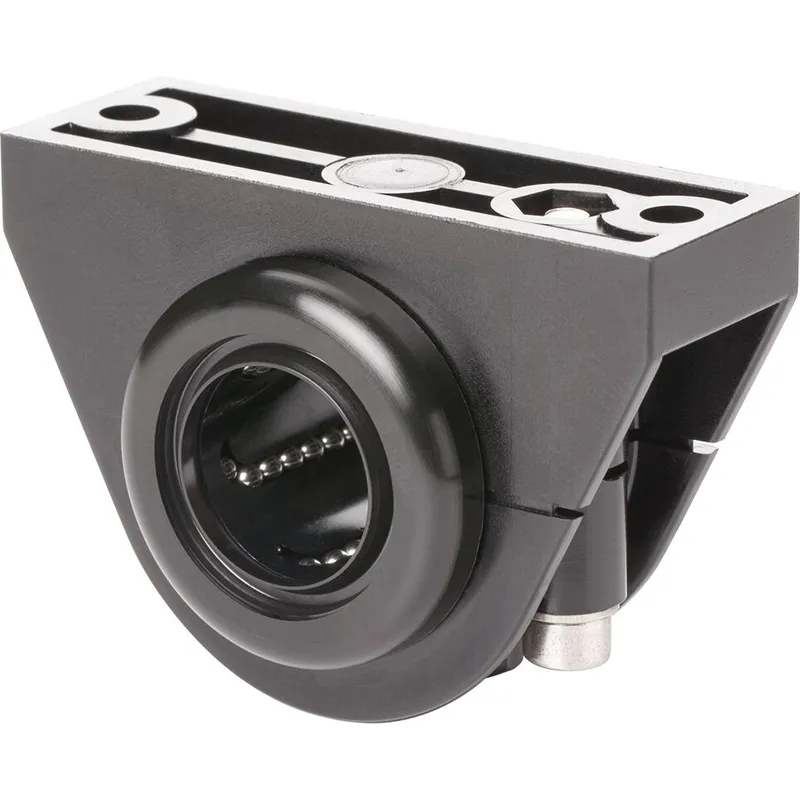

Linear set (plastic)<br>Plastic, with segmental LB<br>Shaft diameter d = 20<br>With two seals<br>Version: Rust-resistant pillow block housing made of reinforced PA segmental linear bushing Lightweight, stable and affordable Two interchangeable wiper seals Radial clearance adjustable A2 stainless steel bolt, washer and nut

Specifications

Shaft diameter d [mm]	20.0
Version	Corrosion-resistant
Format of linear bushings	– Closed
Type	Linear set
Dynamic load capacity C [N]	510.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Radial clearance	Clamped to h5 shaft (lower limit) and set to zero-clearance before delivery
Permissible ambient temperature (min. ... max.)	-10 °C ... +65 °C
Weight [kg]	0.08
Static load capacity C0 [N]	690.0
Note: static load capacity C0	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Footnote breakaway force	Frictional drags generated by linear bushings with seals on both ends when not under radial load. This depends on speed and lubrication.
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	5

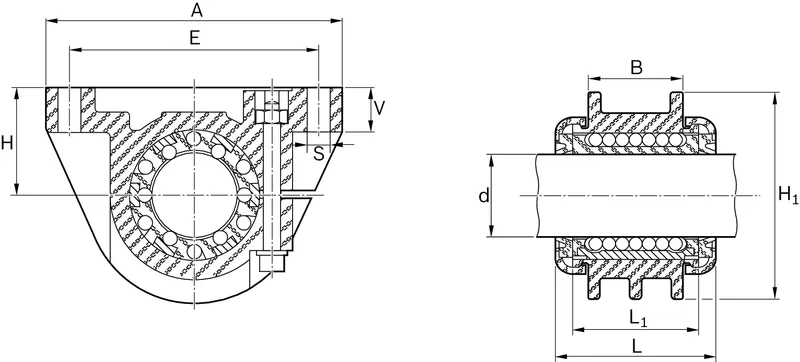

Dimension A (profiled rail systems) [mm]	69
Dimension B (profiled rail systems) [mm]	23
Dimension E [mm]	58
Dimension H [mm]	25.0
Dimension H1 (profiled rail systems) [mm]	50
Dimension L [mm]	38
Dimension L1 [mm]	30
Dimension S [mm]	5.5
Dimension V [mm]	10.5
