LINEAR-SET LSATOE-A-16-DD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R103461620 be shipped?
R103461620 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R103461620 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R103461620 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R103461620, subject to availability and destination.

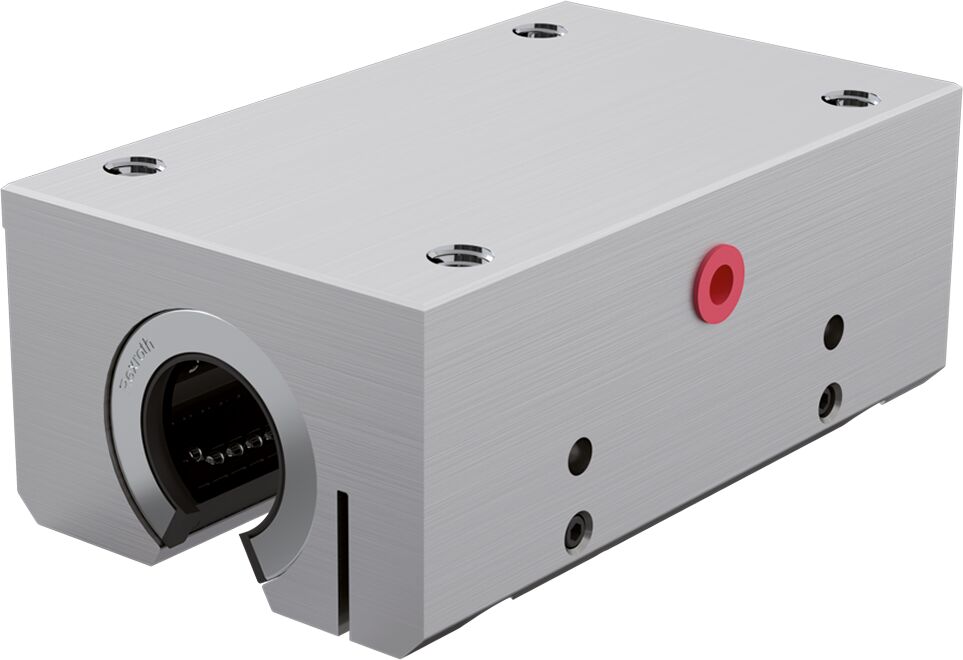

Linear set (aluminum)<br>Tandem, open, adjustable<br>With super LB A<br>Shaft diameter d = 16<br>With two seals<br>Version: Standard Lightweight precision tandem housing (aluminum) Two super linear bushings A Reference edge External seals Relubricatable Also available as linear motion slide.
Specifications
Specifications
| Shaft diameter d [mm] | 16.0 |
| Format of linear bushings | TOE - Tandem, open, adjustable |
| Series | Super A (with self-alignment feature) |
| Type | Linear set |
| Dynamic load capacity C [N] | 2430.0 |
| Note: dynamic load capacity C | Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure. |
| Dynamic longitudinal moment load capacity ML [Nm] | 18.0 |
| Radial clearance | Clamped to h5 shaft (lower limit) and set to zero-clearance before delivery |
| Outer diameter D [mm] | 26.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.33 |
| Static load capacity C0 [N] | 1660.0 |
| Note: static load capacity C0 | Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading. |
| Static longitudinal moment load capacity ML0 [Nm] | 13 |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 2 |

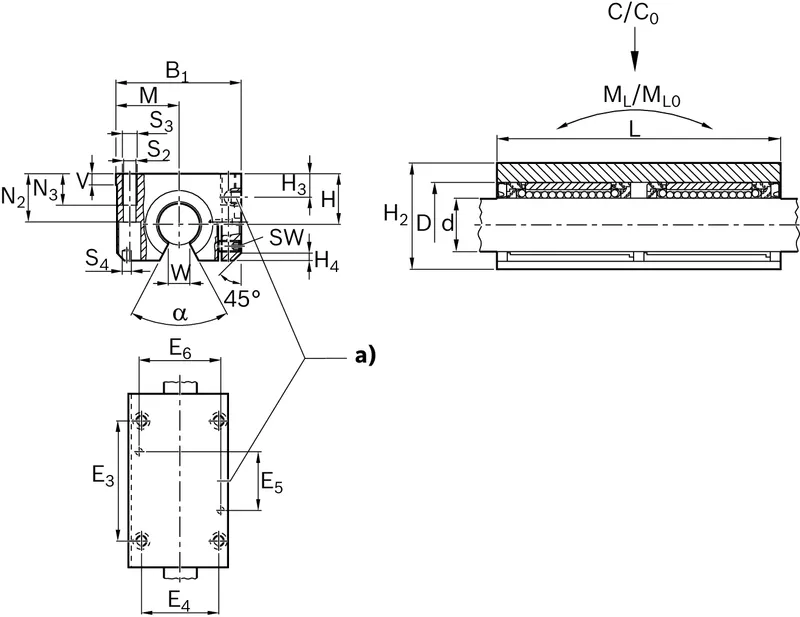

| Dimension B1 [mm] | 53 |
| Dimension D [mm] | 26 |
| Dimension E3 (profiled rail systems) [mm] | 64 |
| Dimension E3 tolerance [mm] | ±0.15 |
| Dimension E4 [mm] | 40 |
| Dimension E5 [mm] | 28 |
| Dimension E6 [mm] | 42 |
| Dimension H [mm] | 22.0 |
| Dimension H3 [mm] | 12 |
| Dimension H4 [mm] | 2.5 |
| Dimension L [mm] | 84 |
| Dimension M [mm] | 26.5 |
| Dimension N2 (profiled rail systems) [mm] | 21 |
| Dimension N3 (profiled rail systems) [mm] | 13 |
| Dimension S2 [mm] | 5.3 |
| Dimension S4 [mm] | 4 |
| Dimension SW [mm] | 2.5 |
| Dimension V [mm] | 5 |
| Dimension W [mm] | 9 |
| Angle α [°] | 68 |
