SHAFT WITH SUPPORT WM-20-AP-H6-

Name: SHAFT WITH SUPPORT WM-20-AP-H6-
Brand: Bosch Rexroth
SKU: R102502000

MPN: R102502000 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Precision steel shafts with shaft support rails
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R102502000 be shipped?

R102502000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R102502000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R102502000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R102502000, subject to availability and destination.

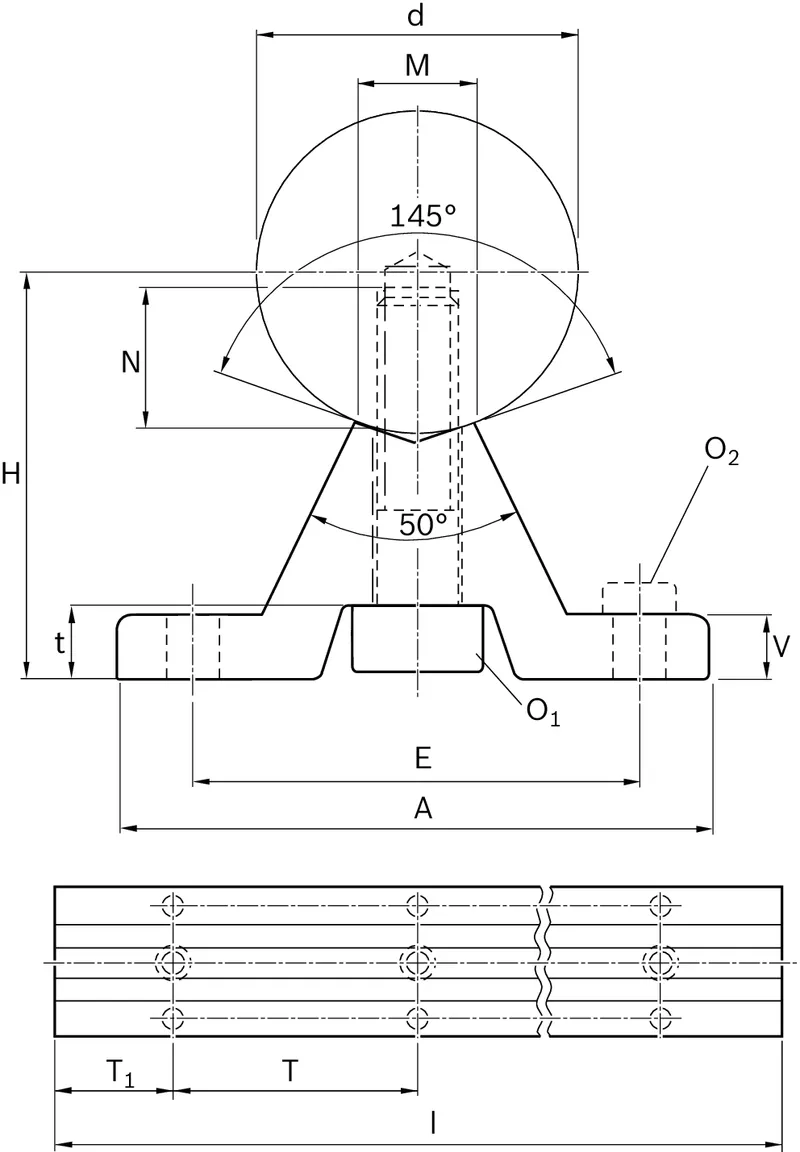

Shaft support rail with shaft mounted<br>made of heat-treated steel<br>Shaft diameter d = 20<br>Tolerance = H6<br>Shaft support rail: Aluminum, for aluminum framing systems Fast, easy, modular linear bushing and shaft construction on aluminum framing systems Highly affordable due to less stringent height tolerance Shaft support rail material: Aluminum For use with open linear bushings For long guides or high loads where self-supporting shafts cannot be used due to shaft warping Unlimited length when using interconnecting shafts Support rails for various requirements Additional degrees of freedom in circumferential direction compared to profiled guide rails. For applications where other linear guides tend to warp due to imprecise substructures.

Specifications

Shaft diameter d [mm]	20.0
Material of precision steel shafts	Heat-treated steel Cf53
Tolerance grade shaft	h6
Material shaft support rails	Aluminum
Mass m (kg/m) [kg/m]	3.8
Weight [kg]	0
Dimension A (profiled rail systems) [mm]	52
Dimension E [mm]	40
Dimension H [mm]	32.0
Dimension M [mm]	8.3
Dimension N [mm]	11
Dimension O1 thread x lead [mm]	M6x25
Dimension O2 thread diameter	M6
Dimension t [mm]	7
Dimension V [mm]	6
