SOLID SHAFT WV-22H6
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Precision steel shafts |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R100002200 be shipped?
R100002200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R100002200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R100002200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R100002200, subject to availability and destination.

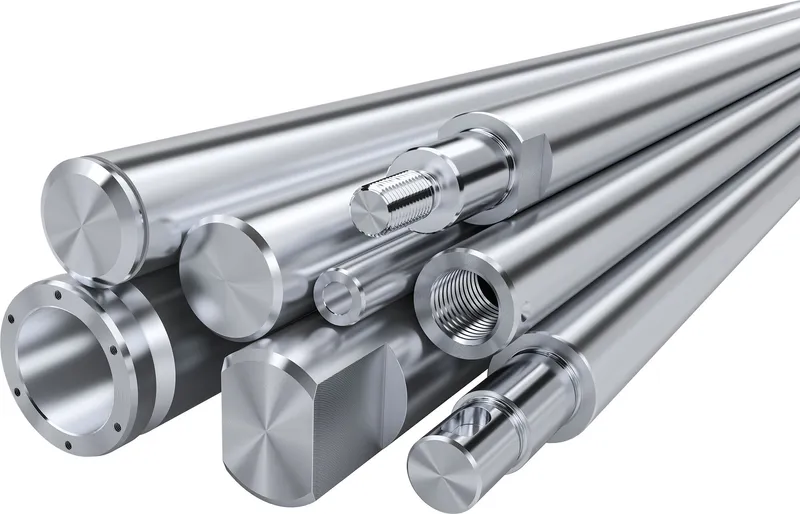

Solid shaft<br>made of heat-treated steel<br>Shaft diameter d = 22<br>Tolerance = H6 For particularly high demands with a very long service life under rolling loads.
Specifications
Specifications
| Shaft diameter d [mm] | 22.0 |
| Material of precision steel shafts | Heat-treated steel Cf53 |
| Tolerance grade shaft | h6 |
| Version of precision steel shaft | Solid shaft |
| Note: tolerance grade | Other tolerances upon request |
| Type | Precision steel shaft |
| Note: Lmax | Sections are combined for longer overall lengths. Linear bushings can simply be rolled over joints. |
| Mass m (kg/m) [kg/m] | 2.97 |
| Weight [kg] | 0 |
| Hardness [HRC] | min. 60 |
| Straightness tolerance t3 footnote | The smallest possible value is 40 µm for lengths under 1 m. Straightness is measured based on ISO 13012. |
| Footnote length L | Regarding geometry and hardness |
| Cylindricity tolerance t2 footnote | Measurement of differences in diameter |
