HOLLOW SHAFT WOD4-6-400 &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Precision steel shafts |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R072400632 be shipped?
R072400632 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R072400632 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R072400632 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R072400632, subject to availability and destination.

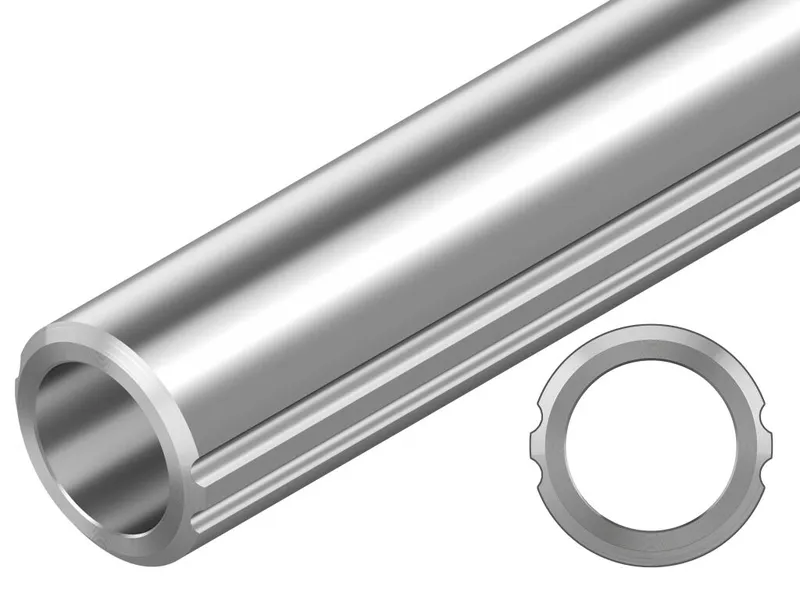

Tubular Shaft<br>made of heat-treated steel<br>Shaft diameter d = 6<br>Ball guide grooves = 4<br>600 = standard length as per table for torque-resistant linear bushings R0724, flanged type R0725, miniature flanged R0726, and rotational flanged R0727
Specifications
Specifications

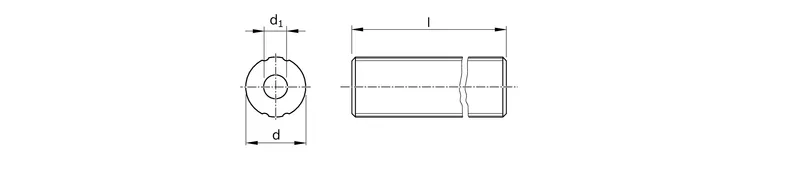

| Shaft diameter d [mm] | 6.0 |
| Material of precision steel shafts | Heat-treated steel Cf53 |
| Tolerance grade shaft | h7 |
| Version of precision steel shaft | Hollow shaft with 4 ball guide grooves |
| Series | Torque |
| Type | Hollow shaft |
| Raceway grooves | 4 |
| Note: Lmax | for version with shaft length lmax. and customized shaft |
| Mass m (kg/m) [kg/m] | 0.195 |
| Weight [kg] | 0.13 |
| Footnote diameter d | Actual shaft diameter varies |
| Shaft diameter, detailed [mm] | 6 |
| Dimension d1 [mm] | 2 |
