LINEAR-SET LSFDR1-16-WV-2000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R072321688 be shipped?
R072321688 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R072321688 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R072321688 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R072321688, subject to availability and destination.

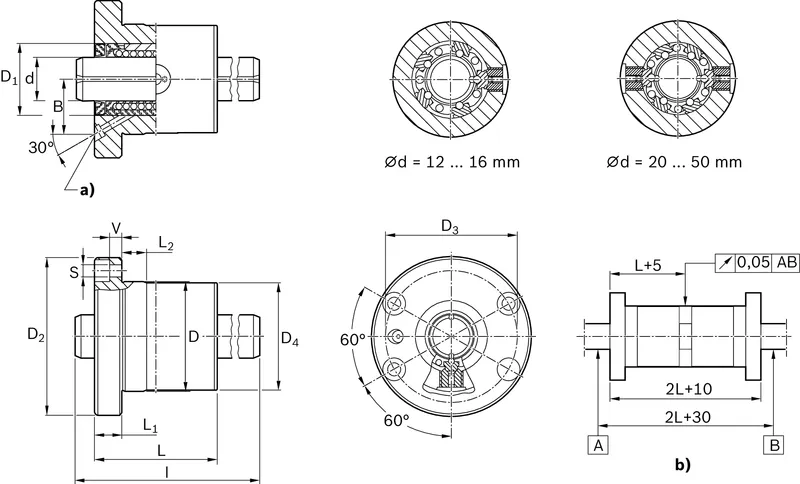

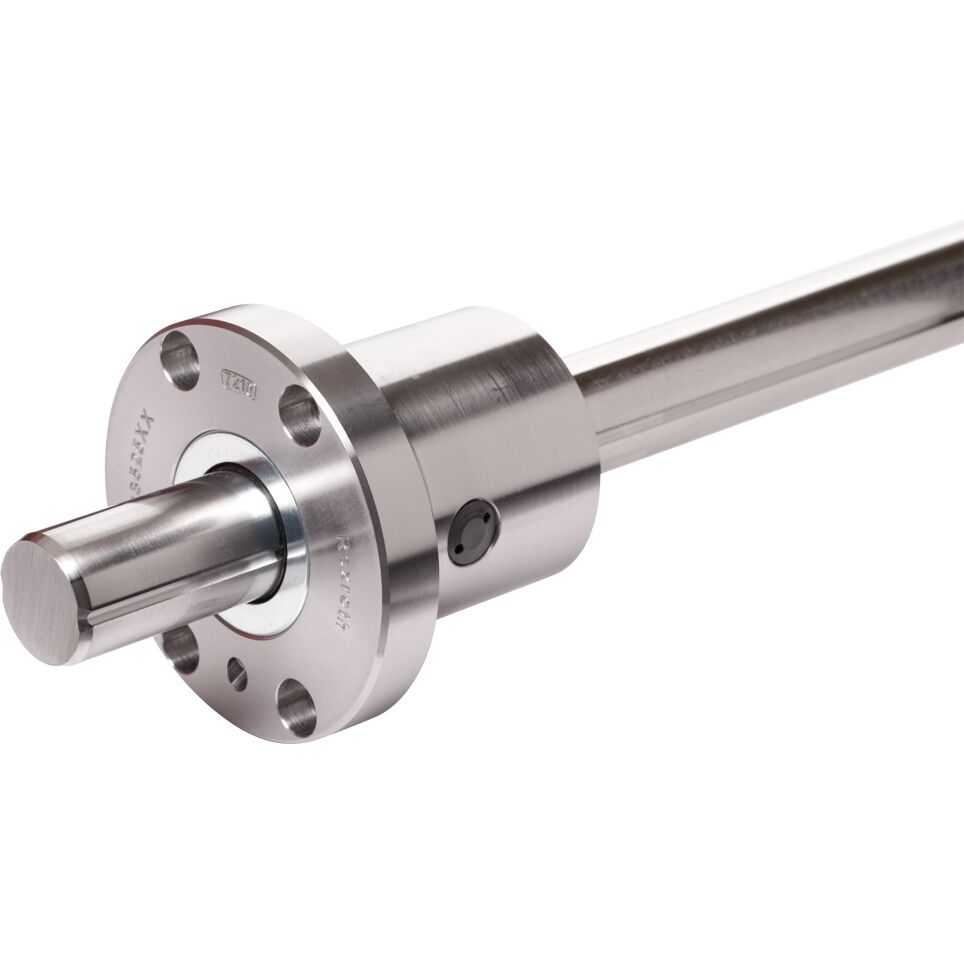

Linear set (steel)<br>Compact LB, flange<br>Ball guide grooves = 1<br>Shaft diameter d = 16<br>Shaft included<br>2000 = standard length as per table<br>Without seal<br>Version: Standard Steel flanged sleeve Torque-resistant compact linear bushing One ball guide groove for diameter shafts 12 and 16 mm Two ball guide grooves for diameter shafts 20 mm and higher Torque-transmitting, hardened steel bearing plates set to zero clearance ex works External seals Stability against tipping loads: Installation of 2 linear sets, see chapter "Mounting" Relubricatable
Specifications
Specifications
| Shaft diameter d [mm] | 16.0 |
| Format of linear bushings | F - Flange |
| Series | Torque |
| Type | Linear set |
| Dynamic load capacity C [N] | 780.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 3.3 |
| Mass m (kg/m) [kg/m] | 1.57 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.1 |
| Static load capacity C0 [N] | 530.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Dimension B (profiled rail systems) [mm] | 20 |
| Dimension D1 [mm] | 26 |
| Dimension D h6 [mm] | 36 |
| Dimension D2 [mm] | 54 |
| Dimension D3 [mm] | 44 |
| Dimension D4 [mm] | 36 |
| Dimension L H11 [mm] | 44 |
| Dimension L1 [mm] | 10 |
| Dimension L2 [mm] | 10 |
| Dimension S [mm] | 4.5 |
| Dimension V [mm] | 4.5 |
| Standard length l of the shaft footnote [mm] | R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm |
| Standard length l of the shaft [mm] | 400 |
