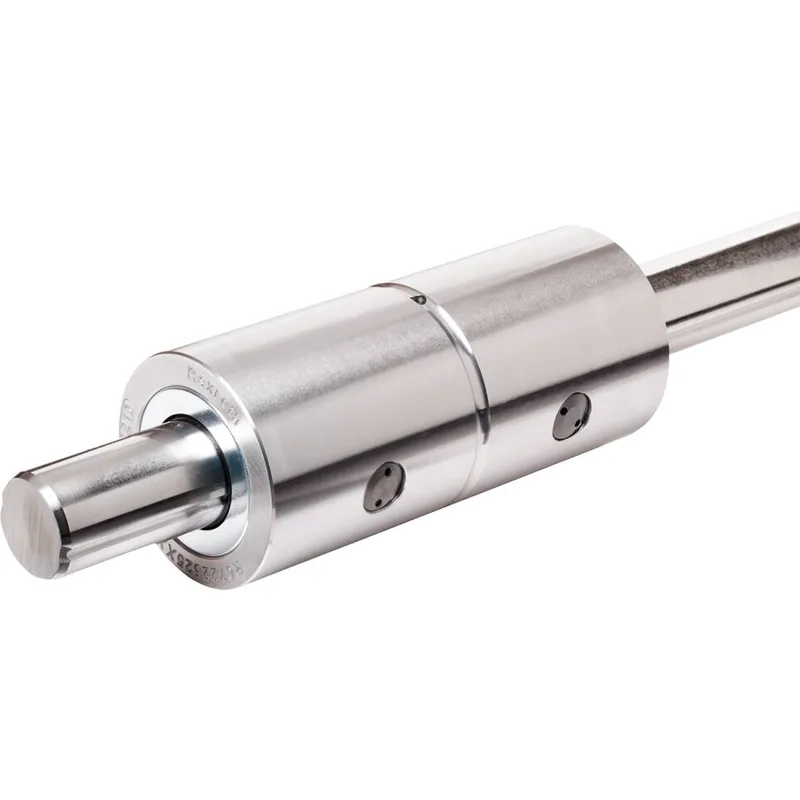

LINEAR-SET LSHDR2T-25-SPECIAL
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R072252586 be shipped?
R072252586 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R072252586 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R072252586 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R072252586, subject to availability and destination.
Linear set (steel)<br>Compact LB, sleeve version, tandem<br>Ball guide grooves = 2<br>Shaft diameter d = 25<br>SPECIAL = shaft length processing in acc. with drawing<br>Without seal<br>Version: Standard Compact steel sleeve Two torque-resistant compact linear bushings One ball guide groove for diameter shafts 12 and 16 mm Two ball guide grooves for diameter shafts 20 mm and higher Keyway for torque transmission Torque-transmitting, hardened steel bearing plates set to zero clearance ex works Stability against cocking loads External seals Relubricatable
Specifications
Specifications
| Shaft diameter d [mm] | 25.0 |
| Format of linear bushings | H - Sleeve design |
| Series | Torque |
| Type | Linear set |
| Dynamic load capacity C [N] | 4900.0 |
| Note: dynamic load capacity C | Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 40.0 |
| Mass m (kg/m) [kg/m] | 3.8 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Static load capacity C0 [N] | 4360.0 |
| Note: static load capacity C0 | Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |

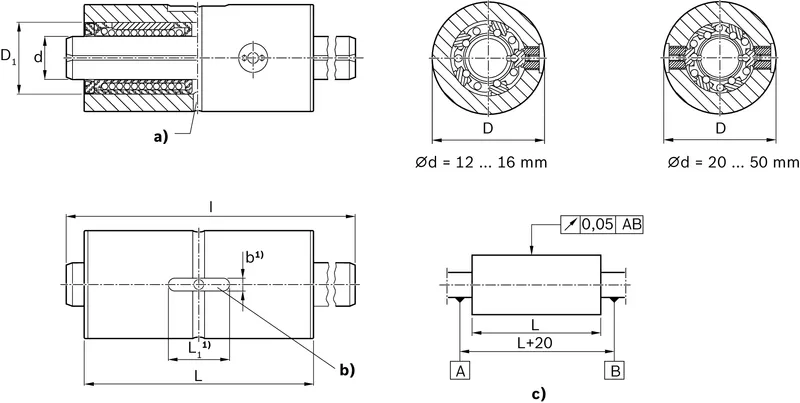

| Dimension b P9 [mm] | 6 |
| Dimension D1 [mm] | 40 |
| Dimension D h6 [mm] | 56 |
| Dimension L H11 [mm] | 130 |
| Dimension L1 [mm] | 36 |
| Dimension t [mm] | 3.5 |
| Standard length l of the shaft [mm] | 500 |
