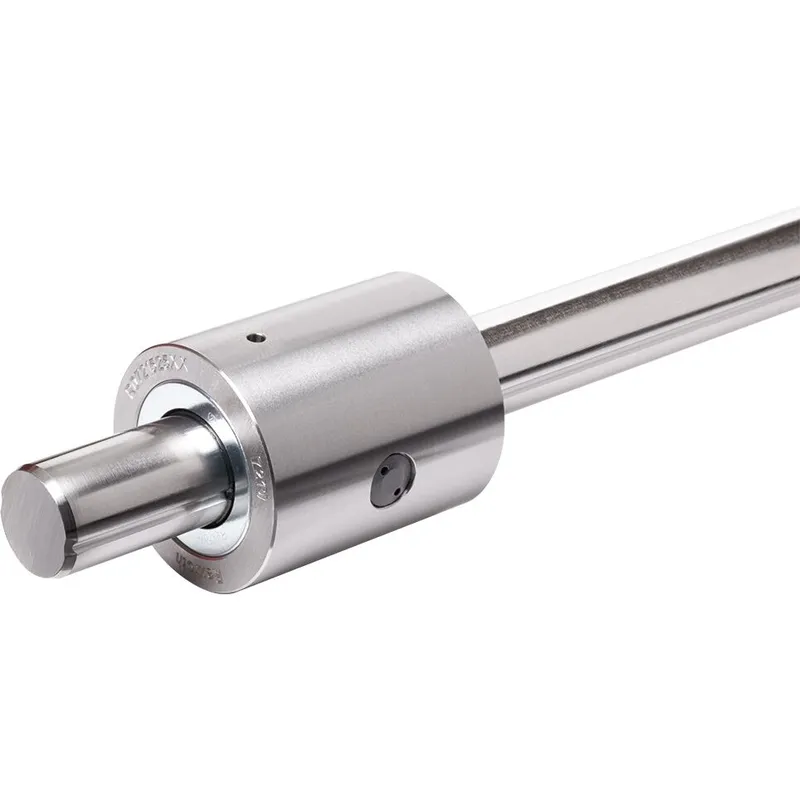

LINEAR-SET LSHDR2-30-WV-900
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R072153085 be shipped?
R072153085 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R072153085 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R072153085 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R072153085, subject to availability and destination.
Linear set (steel)<br>Compact LB, sleeve design<br>Ball guide grooves = 2<br>Shaft diameter d = 30<br>Shaft included<br>900 = standard length as per table<br>Without seal<br>Version: Standard Steel precision tandem housing Precision steel shaft with two ball guide grooves One ball guide groove for diameter shafts 12 and 16 mm Two ball guide grooves for diameter shafts 20 mm and higher Keyway for torque transmission Torque-transmitting, hardened steel bearing plates set to zero clearance ex works Stability against cocking loads External seals Relubricatable Torque-resistant compact linear bushing
Specifications
Specifications
| Shaft diameter d [mm] | 30.0 |
| Format of linear bushings | H - Sleeve design |
| Series | Torque |
| Type | Linear set |
| Dynamic load capacity C [N] | 3680.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 37.0 |
| Mass m (kg/m) [kg/m] | 5.5 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.1 |
| Static load capacity C0 [N] | 2790.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |

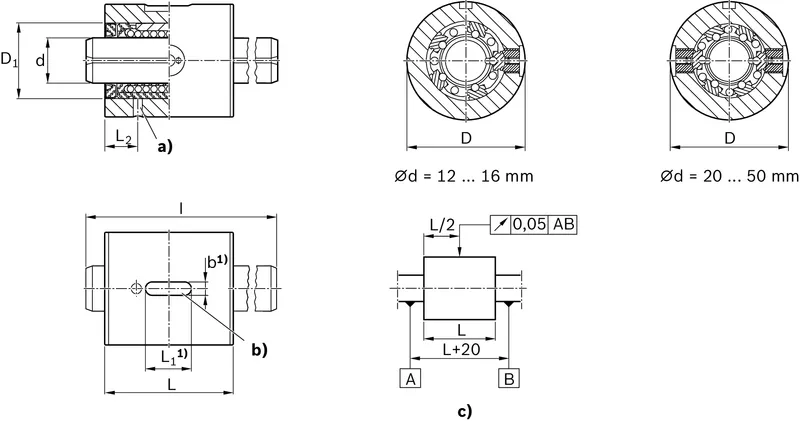

| Dimension b P9 [mm] | 6 |
| Dimension D1 [mm] | 47 |
| Dimension D h6 [mm] | 65 |
| Dimension L H11 [mm] | 80 |
| Dimension L1 [mm] | 28 |
| Dimension L2 [mm] | 16.5 |
| Dimension t [mm] | 3.5 |
| Standard length l of the shaft footnote [mm] | R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm |
| Standard length l of the shaft [mm] | 600 |
