RADIAL LINEAR BUSHING KBR-30-VD &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R067823045 be shipped?
R067823045 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R067823045 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R067823045 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R067823045, subject to availability and destination.

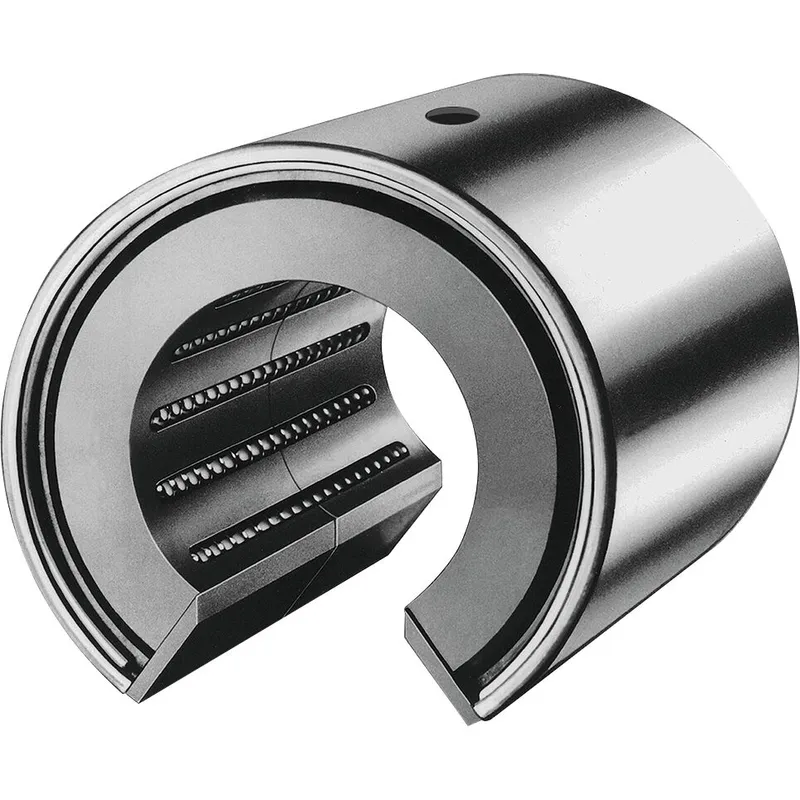

radial linear bushing<br>Shaft diameter d = 30<br>Fully sealed High-precision linear bushing for moving very heavy loads Radial ball redirection allows numerous rows of balls and extremely high load ratings Heavy-duty guide with degrees of freedom in circumferential direction For applications where other linear guides tend to warp due to imprecise substructures. Very high rigidity Extra smooth running Fully sealed or without wiper seals Separate wiper seals optional Relubricatable Hardened and machined steel sleeve Ball retainer made of reinforced PA Balls made of rolling bearing steel Two retaining rings
Specifications
Specifications
| Shaft diameter d [mm] | 30.0 |
| Version | Standard |
| Format of linear bushings | O - Open |
| Series | Radial |
| Type | Linear bushing |
| Seal | Fully sealed |
| Lubrication | Not lubricated |
| Dynamic load capacity C [N] | 8500.0 |
| Note: dynamic load capacity C | The stated load capacities apply for the main direction of loading ρ = 0°. |
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Maximum permissible linear speed vmax [m/s] | 2.0 |
| Length of linear bushing [mm] | 75.0 |
| Outer diameter D [mm] | 60.0 |
| Permissible ambient temperature (min. ... max.) | -20 °C ... +100 °C |
| Friction coefficient μ | 0.001 ... 0.002 |
| Note: friction coefficient μ | Friction coefficients of unsealed radial linear bushings when lubricated with oil. |
| Weight [kg] | 0.86 |
| Static load capacity C0 [N] | 9520.0 |
| Note: static load capacity C0 | The stated load capacities apply for the main direction of loading ρ = 0°. |
| Footnote shaft radial clearance h6/bore JS6 | Observe the reduction in service life owing to high preload |
| Footnote shaft radial clearance h6/bore K6 | Observe the reduction in service life owing to high preload |
| Footnote friction force FR | Frictional drag for linear bushings with separate wiper seals |
| Breakaway force [N] | 24 |

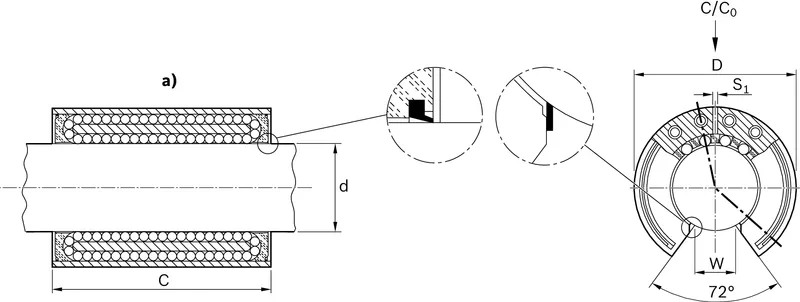

| Dimension C h11 [mm] | 75 |
| Dimension D [mm] | 60 |
| Dimension S1 (profiled rail systems) [mm] | 3 |
| Dimension W [mm] | 14 |
