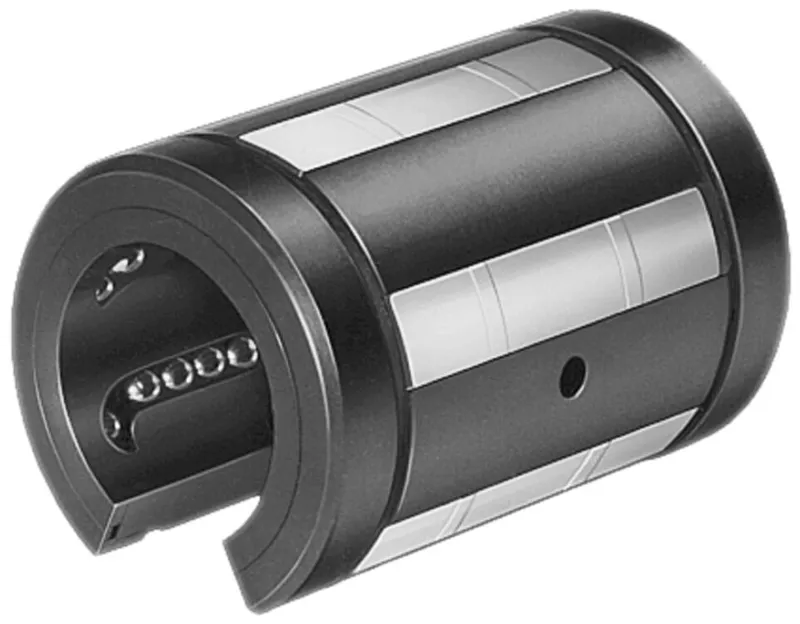

SUPER LINEAR BUSHING KBB-O-30-VD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R067323045 be shipped?
R067323045 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R067323045 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R067323045 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R067323045, subject to availability and destination.
Super linear bushing<br>Super B (no self-alignment feature)<br>Open<br>Shaft diameter d = 30<br>Fully sealed Low-cost linear bushing for high requirements Steel bearing plates with machined ball guide grooves and optimized ball lead-in chamfers for outstandingly smooth travel and a long service life Without self-alignment feature for transferring lower tipping force along the axial direction Open linear bushing on fully supported shafts for applications where other linear guides tend to warp due to imprecise substructures. High travel speed (5 m/s) With longitudinal seal Integrated wiper seals, external seals or no wiper seals Ball retainer and outer sleeve made of PA or POM Balls made of rolling bearing steel No initial lubrication
Specifications
Specifications
| Shaft diameter d [mm] | 30.0 |
| Version | Standard |
| Format of linear bushings | O - Open |
| Series | Super B (no self-alignment feature) |
| Type | Linear bushing |
| Seal | Fully sealed |
| Lubrication | Not lubricated |
| Dynamic load capacity C [N] | 5020.0 |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure. |
| Length of linear bushing [mm] | 68.0 |
| Outer diameter D [mm] | 47.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Friction coefficient μ | 0.001 ... 0.0025 |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Weight [kg] | 0.18 |
| Static load capacity C0 [N] | 2880.0 |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote friction force FR | 1. One wiper seal: Multiply value with factor 0.5 2. Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 18 |

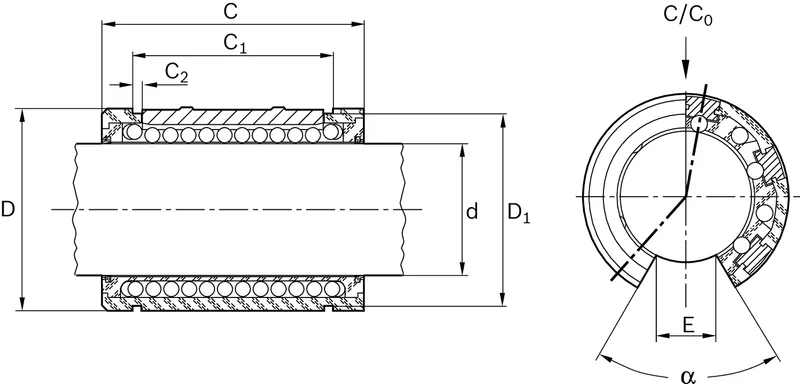

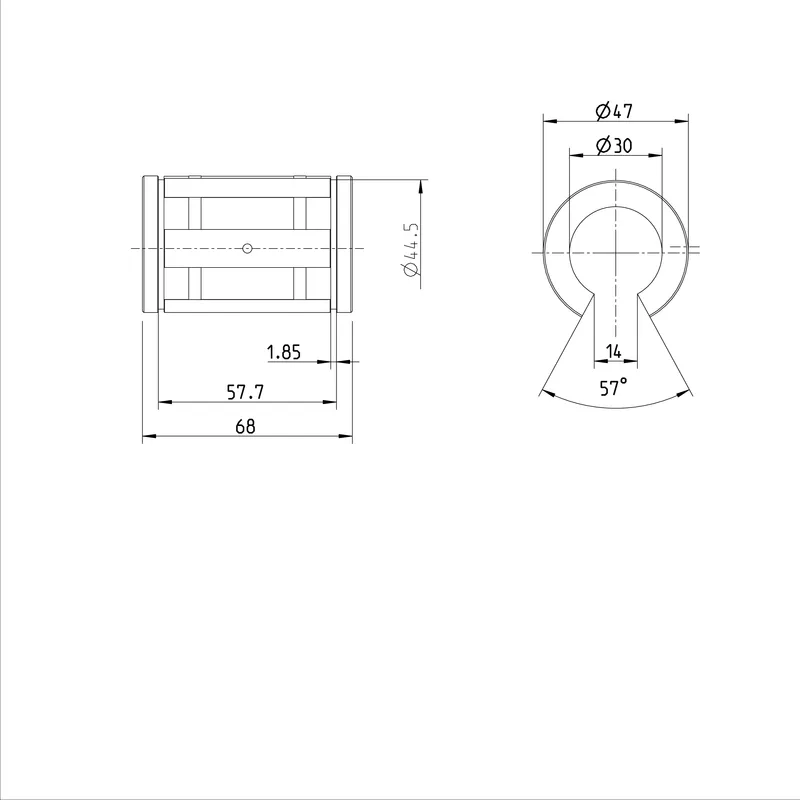

| Dimension C h13 [mm] | 68 |
| Dimension C1 H13 [mm] | 51.7 |
| Dimension C2 [mm] | 1.85 |
| Dimension D [mm] | 47 |
| Dimension E [mm] | 14 |
| Footnote Dimension E | Lower limit relative to Ø d. |
| Angle α [°] | 57 |
