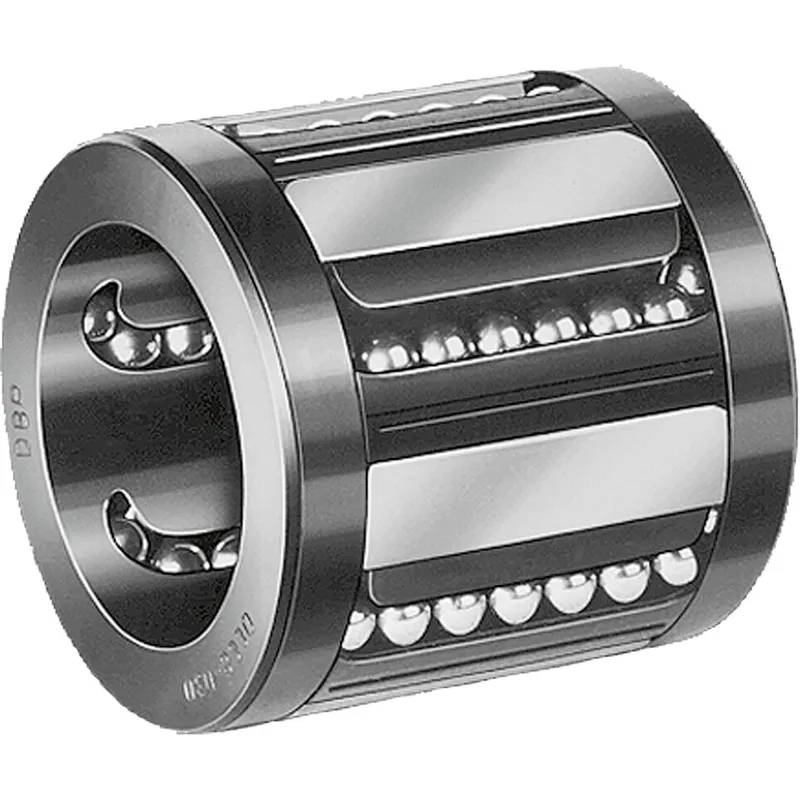

SEGMENTAL LINEAR BUSHING KBSE-30-NR

Name: SEGMENTAL LINEAR BUSHING KBSE-30-NR
Brand: Bosch Rexroth
SKU: R066803030

MPN: R066803030 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R066803030 be shipped?

R066803030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R066803030 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R066803030 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R066803030, subject to availability and destination.

Segmental linear bushing<br>Closed<br>Shaft diameter d = 30<br>Without seal<br>Version: Corrosion-resistant Designed especially for general requirements Stainless steel for the medical, chemistry and food industries Separate wiper seals optional Segmental load bearing plates made of 1.4300 steel Balls made of 1.3541 steel Ball retainer and retaining rings made of PA 11

Specifications

Shaft diameter d [mm]	30.0
Version	Corrosion-resistant
Format of linear bushings	– Closed
Series	Segment
Type	Linear bushing
Seal	Without wiper seals
Lubrication	Not lubricated
Maximum dynamic load capacity Cmax [N]	1270.0
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0

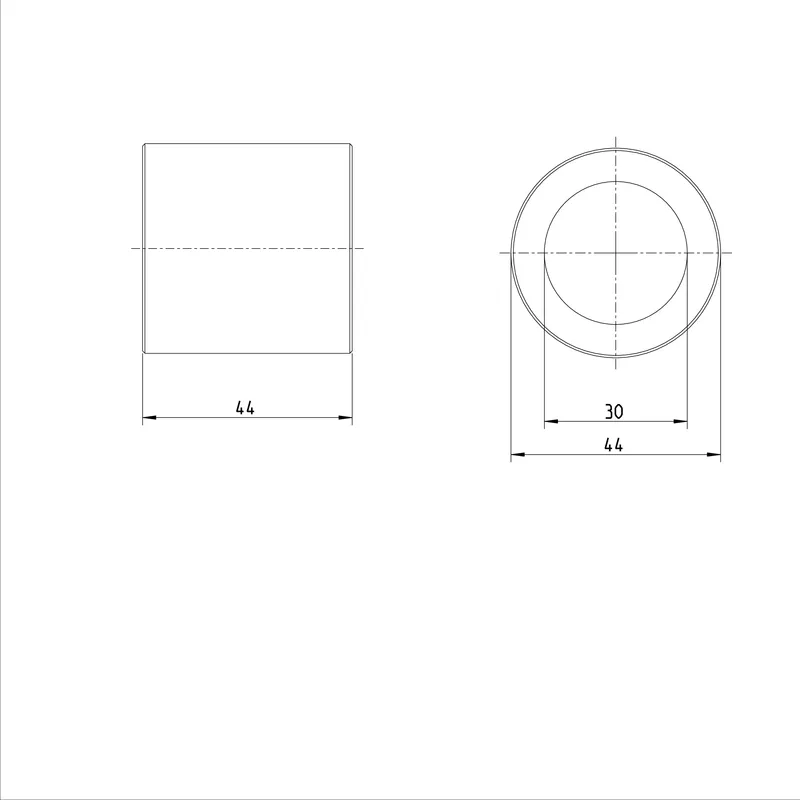

Length of linear bushing [mm]	44.0
Outer diameter D [mm]	44.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +65 °C
Friction coefficient μ	0.001 ... 0.004
Note: friction coefficient μ	Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
Weight [kg]	0.11
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote friction force FR	Frictional drags generated by linear bushings with seals on both ends when not under radial load. This depends on speed and lubrication.
Breakaway force [N]	9

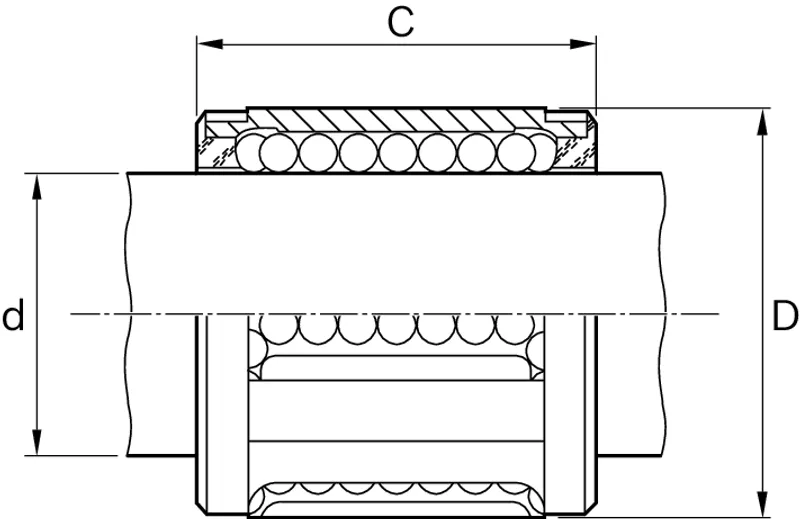

Dimension C js14 [mm]	44
Dimension D [mm]	44
