ROTARY LINEAR BUSHING KBROR-16-DD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R066321600 be shipped?
R066321600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R066321600 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R066321600 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R066321600, subject to availability and destination.

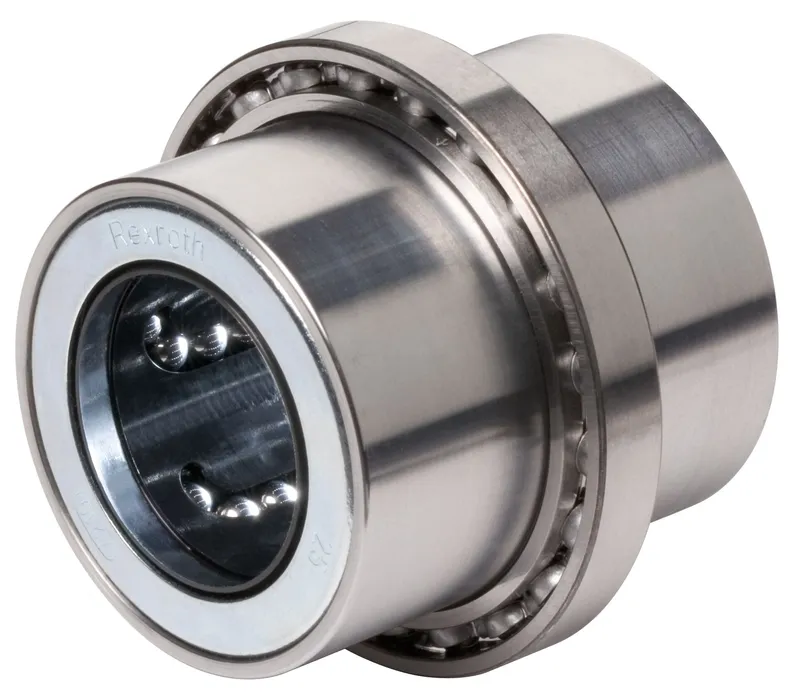

Rotary motion linear bushing<br>With deep-groove ball bearing<br>Shaft diameter d = 16<br>With two seals Linear bushings with deep-groove ball bearing Precise guiding at high load rating High speed and low friction For linear applications with additional rotary motion For grip and swivel functions For winding applications Maintenance-free sealed shields segmental linear bushings (for shaft diameters 12 to 40). Steel sleeve (for shaft diameters 12 to 40). External seals (for shaft diameters 12 to 40) Pressed-on deep-groove ball bearing standard linear bushing (for shaft diameters 5, 8, 50, 60 and 80) Integrated wiper seals (for shaft diameters 5, 8, 50, 60 and 80)
Specifications
Specifications
| Shaft diameter d [mm] | 16.0 |
| Version | Standard |
| Format of linear bushings | R - With deep-groove ball bearing (series 618) |
| Series | Combined linear and rotary motion (rotation) |
| Type | Linear bushing |
| Seal | 2 integrated wiper seals |
| Lubrication | Not lubricated |
| Dynamic load capacity C [N] | 720.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Length of linear bushing [mm] | 34.0 |
| Outer diameter D [mm] | 42.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.15 |
| Static load capacity C0 [N] | 620.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |

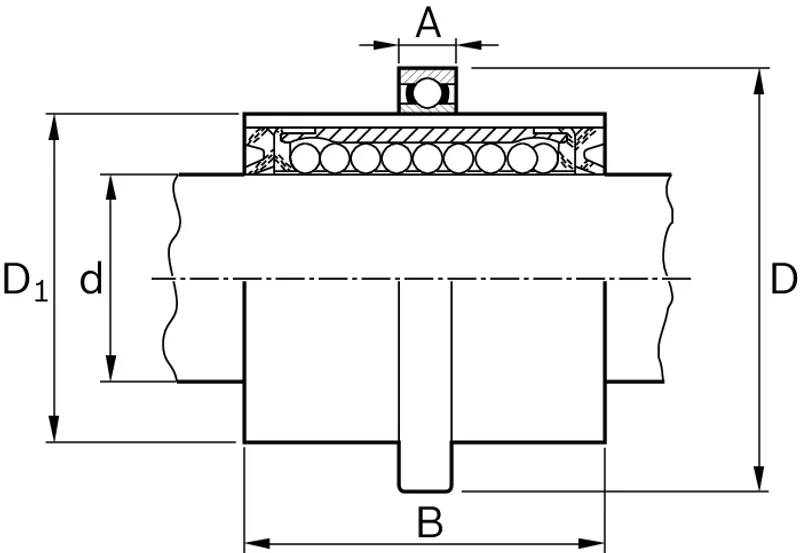

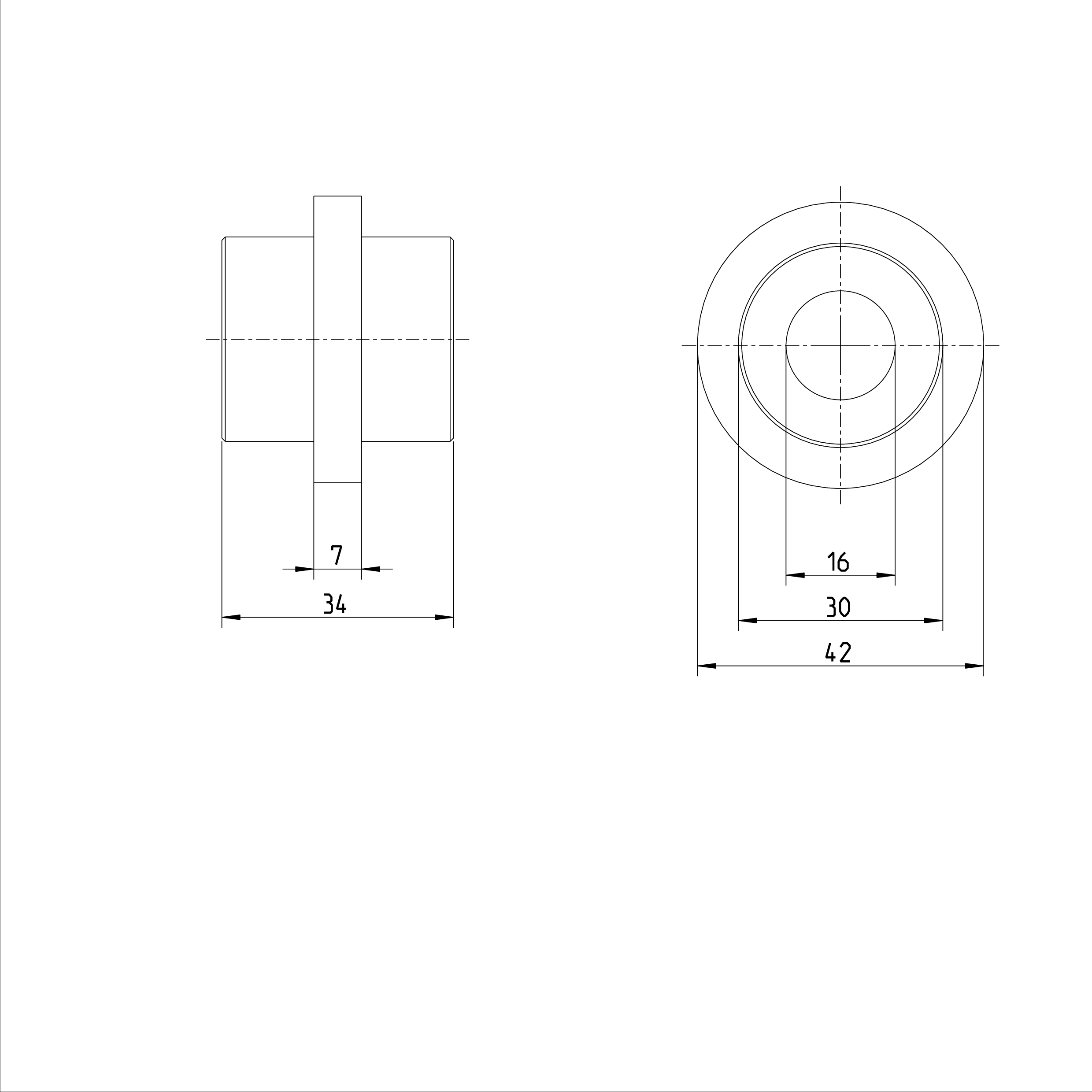

| Dimension A (profiled rail systems) [mm] | 7 |
| Dimension B (profiled rail systems) [mm] | 34 |
| Dimension D [mm] | 42 |
| Dimension D1 [mm] | 30 |
