STANDARD LINEAR BUSHING KBM-O-60-VD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R063206005 be shipped?
R063206005 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R063206005 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R063206005 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R063206005, subject to availability and destination.

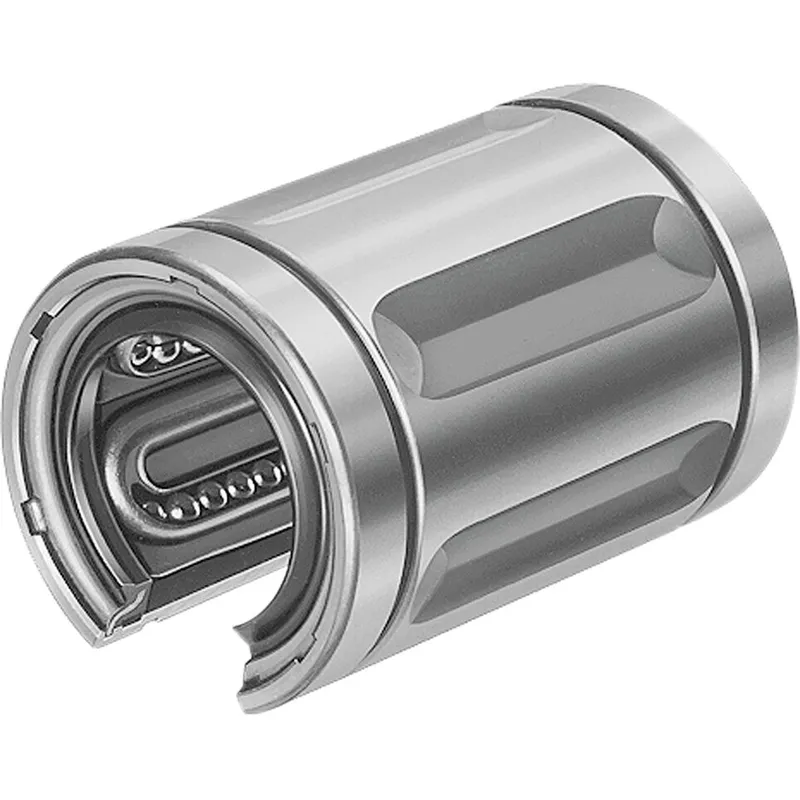

standard linear bushing<br>Standard (metal)<br>Open<br>Shaft diameter d = 60<br>Fully sealed<br>Version: Standard Rugged all-metal design with steel ball retainer for harsh environments and heavy contamination Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life Seal-free and with steel ball retainers for temperatures well above 80°C or under vacuum With locating hole for axial and radial securing (no locating hole for shaft diameters 12 and 16) Optional integrated wiper seals For use in woodworking, foundries, cement plants Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming. No wiper seals, come with integrated steel retaining rings; higher temperatures allowed with shaft diameters 12 and higher Hardened and ground outer sleeve Steel ball retainer Balls made of rolling bearing steel
Specifications
Specifications
| Shaft diameter d [mm] | 60.0 |
| Version | Standard |
| Format of linear bushings | O - Open |
| Series | Standard (metal) |
| Type | Linear bushing |
| Seal | Fully sealed |
| Lubrication | Not lubricated |
| Dynamic load capacity C [N] | 11800.0 |
| Note: dynamic load capacity C | The load capacities C and C<sub>0</sub> apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Maximum permissible linear speed vmax [m/s] | 2.0 |
| Length of linear bushing [mm] | 125.0 |
| Outer diameter D [mm] | 90.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity. |
| Friction coefficient μ | 0.001 ... 0.004 |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Weight [kg] | 1.68 |
| Static load capacity C0 [N] | 9780.0 |
| Note: static load capacity C0 | The load capacities C and C<sub>0</sub> apply for the main direction of loading. |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Breakaway force [N] | 48 |

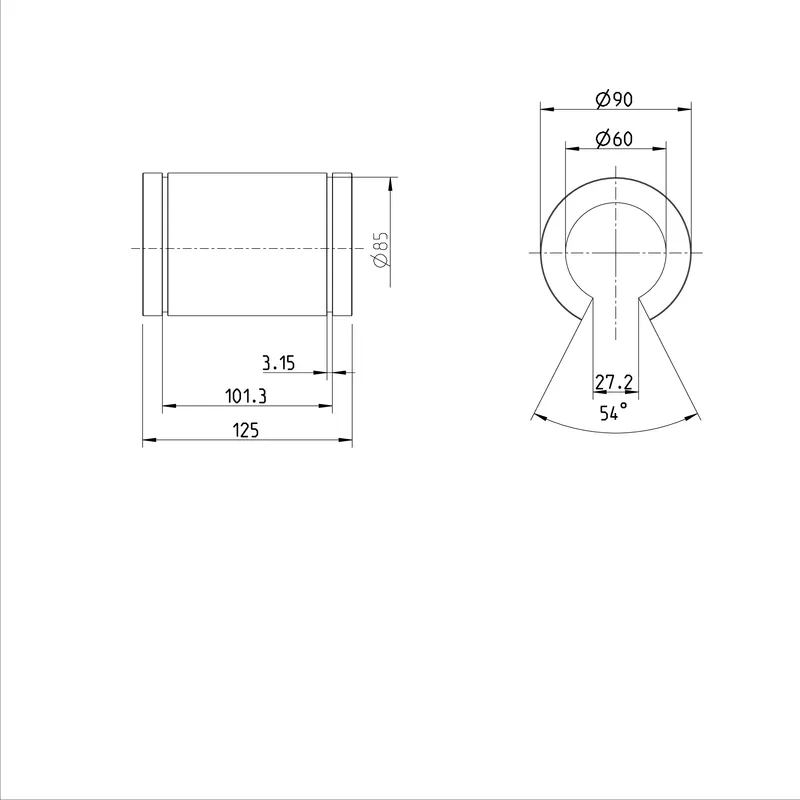

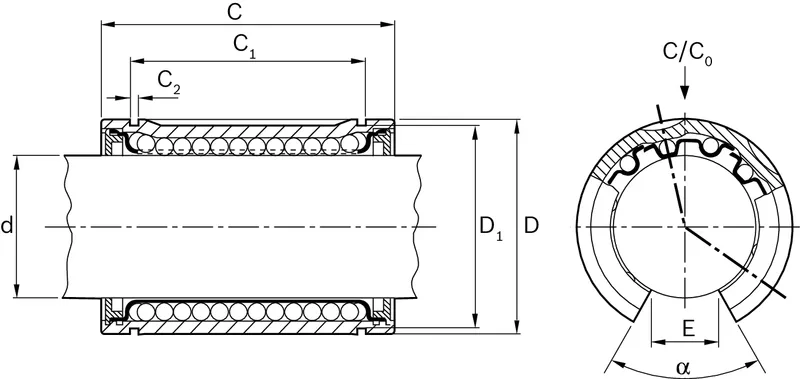

| Dimension C h12 [mm] | 125 |
| Dimension C1 H13 [mm] | 101.3 |
| Dimension C2 [mm] | 3.15 |
| Dimension D [mm] | 90 |
| Dimension D1 [mm] | 85 |
| Dimension E [mm] | 27.2 |
| Footnote Dimension E | Lower limit relative to Ø d. |
| Angle α [°] | 54 |
