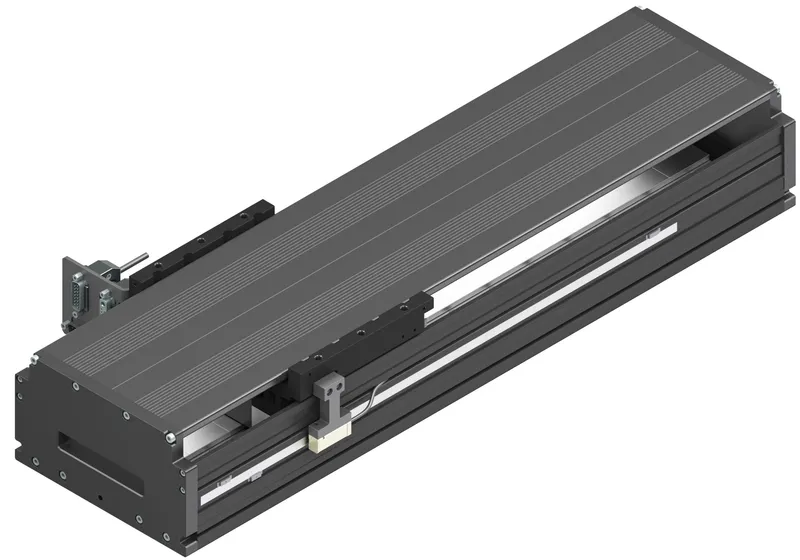

LINEAR MOTOR MODULE LMM-220-NN-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear motor modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R040637045 be shipped?
R040637045 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R040637045 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R040637045 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R040637045, subject to availability and destination.
Linear motor module LMM-220-NN-1<br>Size = 220<br>Length (L) = 1650 mm<br>Maximum travel range = 1420 mm<br>Version = MA01 - with linear motor<br>Guideway = 001 - frame with ball rail system<br>Drive = 003 - iron-free linear motor, type IL-50F-W3<br>Carriage = 003 - carriage length 190 mm<br>Cover = 001 - with cover plate<br>Length measuring system = 005 - optical, absolute, resolution 0.05 µm, BiSS-C interface<br>Lubrication = LSS - standard lubrication<br>Documentation = 001 - standard final testing
Specifications
Specifications
| Nominal size [mm] | LMM-220 |
| Motor type | Iron-free linear motor |
| Motor | IL-50F-W3 |
| Maximum permissible moving external load mex max [kg] | 20.0 |
| Length L [mm] | 1650.0 |
| Width [mm] | 225.0 |
| Height [mm] | 91.7 |
| Maximum travel range smax [mm] | 1420.0 |
| Maximum acceleration rate amax [m/s²] | 250.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Continuous nominal force FdN at 100 °C [N] | 192.0 |
| Max Force [N] | 958.0 |
| Note: maximum force | Maximum force and current: 4% duty cycle and 1 second duration |
| Dynamic load capacity, guideway Cgw [N] | 32035 |
| Dynamic torsional moment load capacity Mt [Nm] | 2307.0 |
| Maximum current [A] | 28.25 |
| Dynamic longitudinal moment load capacity ML [Nm] | 2132.0 |
| Moved mass of system mca [kg] | 3.5 |
| Continuous current at 100 °C [A] | 3.46 |
| Weight [kg] | 59 |
| Counter EMK constant KEMK [Vs/m] | 27.6 |
| Base friction force FRs [N] | 72 |
| Carriage length Lca [mm] | 190 |
| Graduated lengths [mm] | 60 |
| Intermediate circuit voltage V<sub>dc</sub> [V] | 330 |
