CONNECTING PLATE CKK 15-110 K BG

Name: CONNECTING PLATE CKK 15-110 K BG
Brand: Bosch Rexroth
SKU: R037540015

MPN: R037540015 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mechanical accessories for linear axes
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R037540015 be shipped?

R037540015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R037540015 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R037540015 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R037540015, subject to availability and destination.

Fastening of attachments (with sliding blocks) Lubrication of the ball rail system and the ball screw assembly possible via the connection plate For lube version LSS, LPG

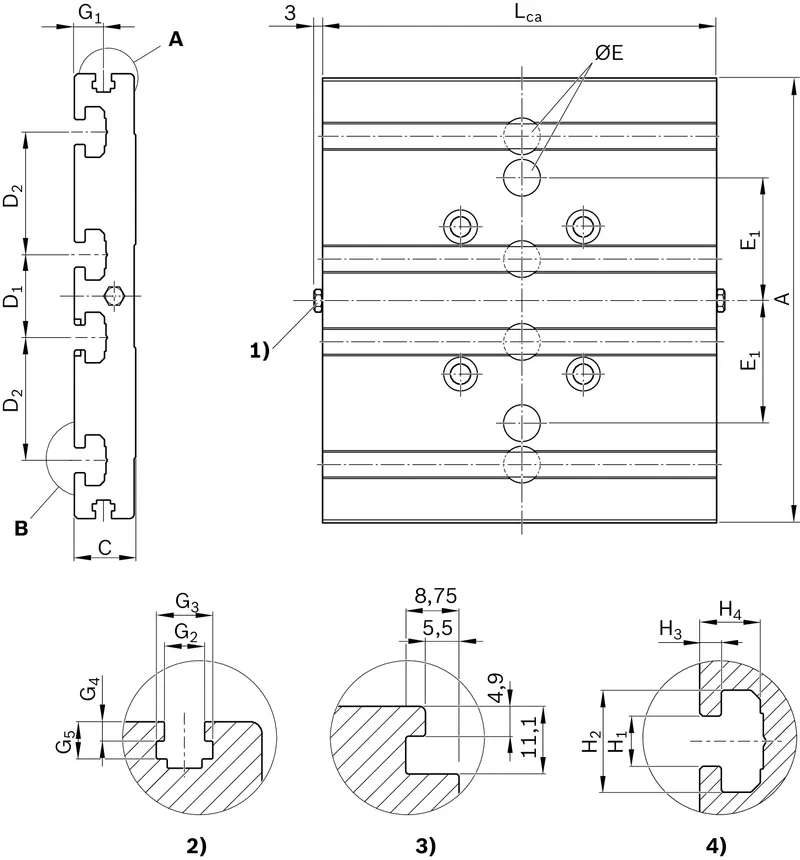

Specifications

Mechanical accessories for linear axes	Connection plates
Nominal size [mm]	110
Weight [kg]	0.23
Length of the carriage Lca [mm]	60
Dimension A (profiled rail systems) [mm]	110
Dimension C [mm]	16
Dimension D1 [mm]	20
Dimension D2 [mm]	20
Dimension E H7 [mm]	9
Dimension E H7 thread depth [mm]	2.1
Dimension E H7 thread depth (text)	deep
Dimension E H7 with thread depth	9 mm ‒ 2.1 mm deep
Dimension E3 (profiled rail systems) [mm]	20
Dimension E3 tolerance [mm]	±0.01
Dimension G1 [mm]	9.5
Dimension G2 [mm]	5.2
Dimension G3 [mm]	7.3
Dimension G4 [mm]	2.5
Dimension G5 [mm]	4.8
Dimension H1 (profiled rail systems) [mm]	6
Dimension H2 (profiled rail systems) [mm]	12
Dimension H3 [mm]	3.5
Dimension H4 [mm]	7.7
