CONNECTING PLATE CKK 15-110 L BG
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mechanical accessories for linear axes |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R037540010 be shipped?
R037540010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R037540010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R037540010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R037540010, subject to availability and destination.

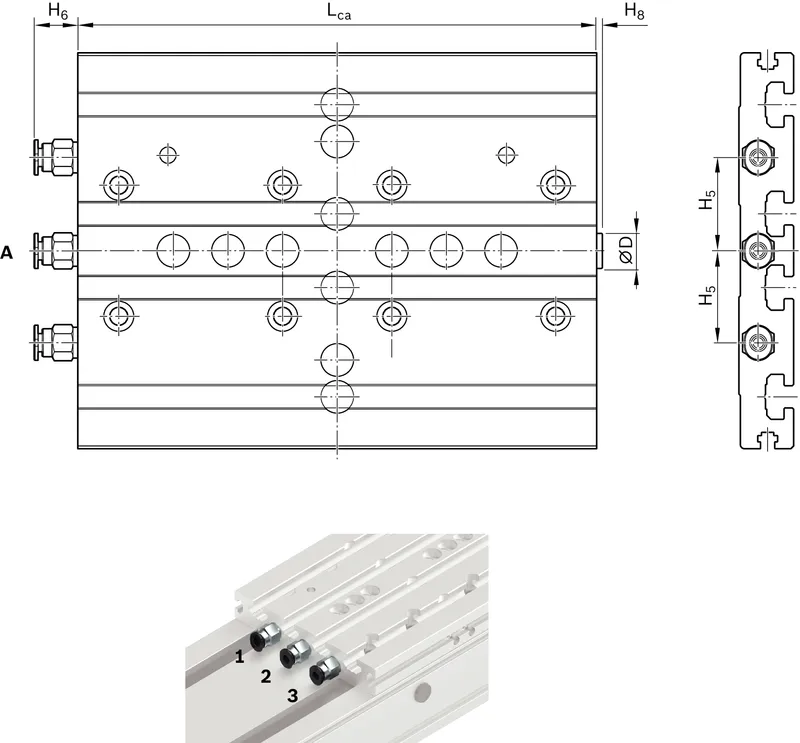

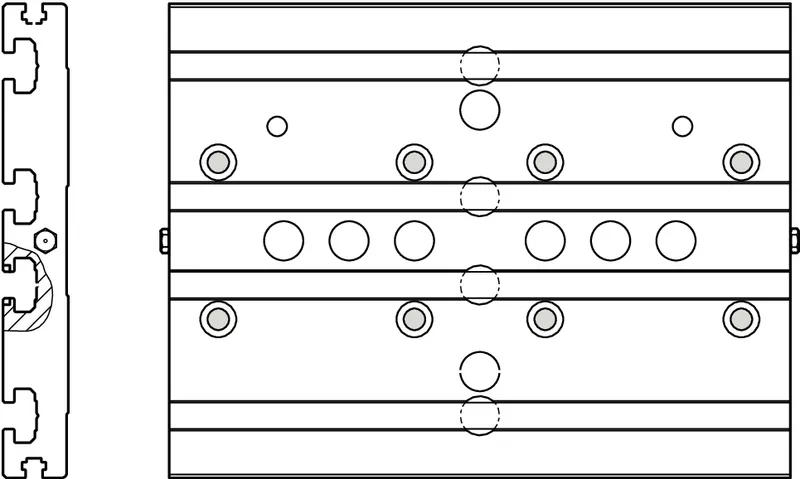

Fastening of attachments (with sliding blocks) Lubrication of the ball rail system and the ball screw assembly possible via the connection plate

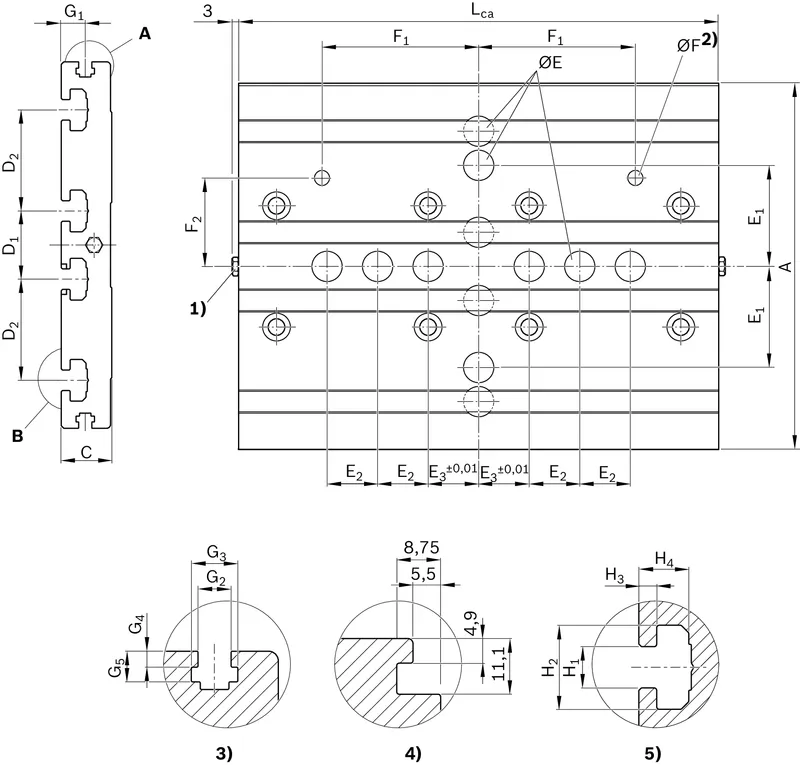

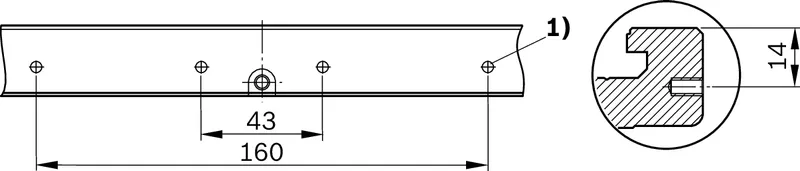

Specifications
Specifications
| Mechanical accessories for linear axes | Connection plates |
| Nominal size [mm] | 110 |
| Weight [kg] | 0.58 |
| Length of the carriage Lca [mm] | 155 |
| Lubrication type | LCF, LCO |
| Dimension A (profiled rail systems) [mm] | 110 |
| Dimension C [mm] | 16 |
| Dimension D [mm] | 8.5 |
| Dimension D1 [mm] | 20 |
| Dimension D2 [mm] | 20 |
| Dimension E H7 [mm] | 9 |
| Dimension E H7 thread depth [mm] | 2.1 |
| Dimension E H7 thread depth (text) | deep |
| Dimension E H7 with thread depth | 9 mm ‒ 2.1 mm deep |
| Dimension E2 [mm] | 10 |
| Dimension E2 tolerance [mm] | ±0.01 |
| Dimension E3 (profiled rail systems) [mm] | 20 |
| Dimension E3 tolerance [mm] | ±0.01 |
| Dimension F H7 [mm] | 5 |
| Dimension F H7 thread depth [mm] | 6.5 |
| Dimension F H7 thread depth (text) | deep |
| Dimension F H7 with thread depth | 5 mm ‒ 6.5 mm deep |
| Dimension F1 [mm] | 46 |
| Dimension F1 tolerance [mm] | ±0.01 |
| Dimension F2 [mm] | 42 |
| Dimension F2 tolerance [mm] | ±0.01 |
| Dimension G1 [mm] | 9.5 |
| Dimension G2 [mm] | 5.2 |
| Dimension G3 [mm] | 7.3 |
| Dimension G4 [mm] | 2.5 |
| Dimension G5 [mm] | 4.8 |
| Dimension H1 (profiled rail systems) [mm] | 6 |
| Dimension H2 (profiled rail systems) [mm] | 12 |
| Dimension H3 [mm] | 3.5 |
| Dimension H4 [mm] | 7.7 |
| Dimension H5 [mm] | 20 |
| Dimension H6 [mm] | 12.5 |
| Dimension H8 [mm] | 3 |
