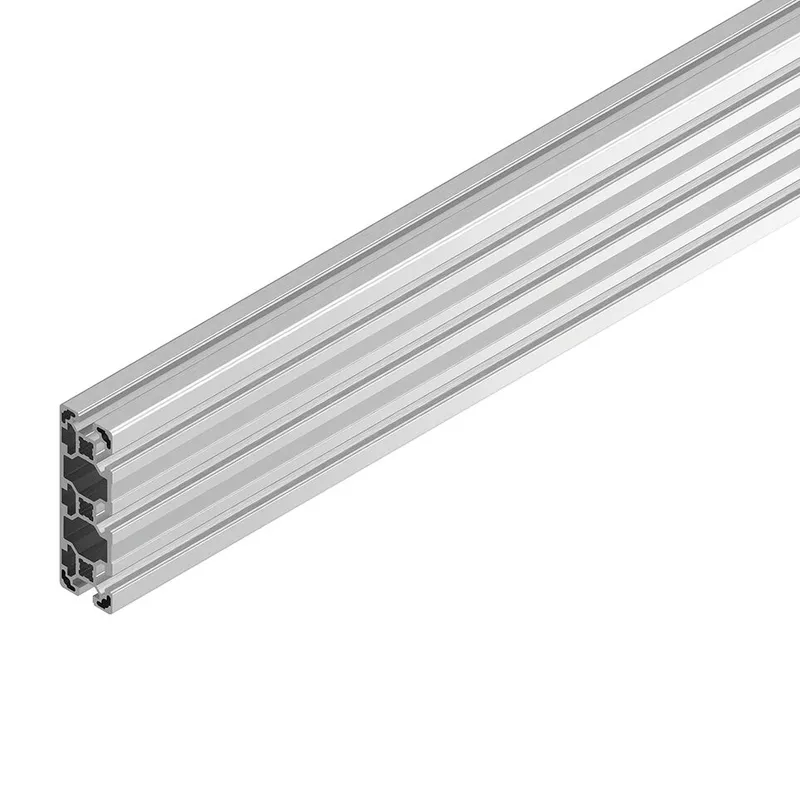

STRUT PROFILE 40X120L 5N Q&E

Name: STRUT PROFILE 40X120L 5N Q&E
Brand: Bosch Rexroth
SKU: 3842993771

MPN: 3842993771 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842993771 be shipped?

3842993771 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842993771 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842993771 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842993771, subject to availability and destination.

Strut profile 40x120L 5N Q&E

Specifications

Condition on delivery	Profile finishing
Cross-section	40x120L 5N
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	40x120
Open slots	5.0
Profile type	5N
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	M12 / D9,8 (B,C,D,F,G,H)<sup>1)</sup> / D17 (B,C,D,F,G,H)<sup>1)</sup> / DB17 / F1 (A,E)<sup>1)</sup>
Standard profile finishing minimum length	L<sub>max</sub> = 6000 mm (note minimum length, see MGE catalog)
Mass [m] [kg]	4.3
Area moment of inertia in x-direction [lx] [cm⁴]	212.4
Area moment of inertia in y-direction [ly] [cm⁴]	30.06
Profile surface [A] [cm²]	15.8
Moment of resistance in the x-direction [Wx] [cm³]	35.3
Moment of resistance in the y-direction [Wy] [cm³]	14.5
Notice	DGmax = 45°, Lmin1 / Lmin2 = 439/578mm; Standard profile finishing at specified slots
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	5400
Recommended accessories	Cover cap 40x40, black; Cover cap 40x40, signal gray; Cover cap 40x80, black; Cover cap 40x80, signal gray
Weight [kg]	0
