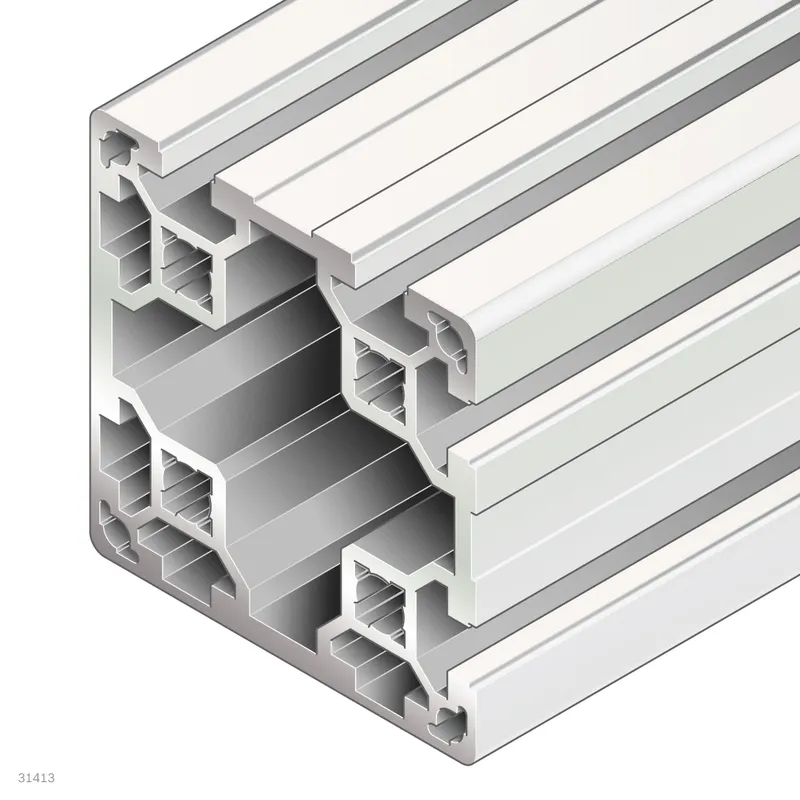

STRUT PROFILE 80X80L 4NVS Q&E

Name: STRUT PROFILE 80X80L 4NVS Q&E
Brand: Bosch Rexroth
SKU: 3842993758

MPN: 3842993758 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842993758 be shipped?

3842993758 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842993758 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842993758 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842993758, subject to availability and destination.

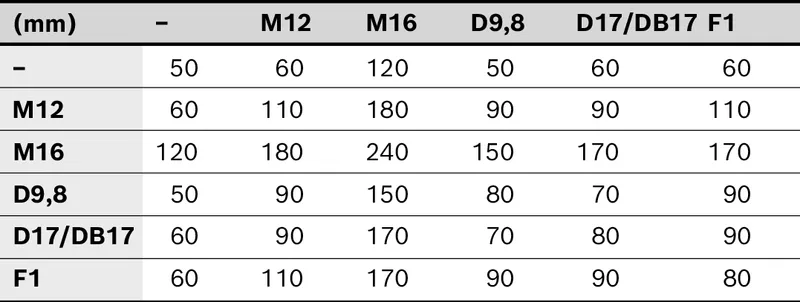

Strut profile 80x80L 4NVS Q&E Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing
Cross-section	80x80L 4NVS
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	80x80
Open slots	4.0
Profile type	4NVS
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	5.2
Area moment of inertia in x-direction [lx] [cm⁴]	142.5
Area moment of inertia in y-direction [ly] [cm⁴]	142.5
Profile surface [A] [cm²]	19.3
Moment of resistance in the x-direction [Wx] [cm³]	35.6
Moment of resistance in the y-direction [Wy] [cm³]	35.6
Torsional moment of inertia [It] [cm⁴]	92.0
Moment of torsion resistance [Wt] [cm³]	16.8
Notice	DGmax = 45°, Lmin1 / Lmin2 = 439/578mm
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	5400
Standard profile finishing [L max] [mm]	6000
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	M12 / D9.8 / D17 / DB17
Standard profile finishing minimum length	Observe minimum length
Recommended accessories	Cover cap 80x80, signal gray; Mounting hole plug 80x80, black
Weight [kg]	0
