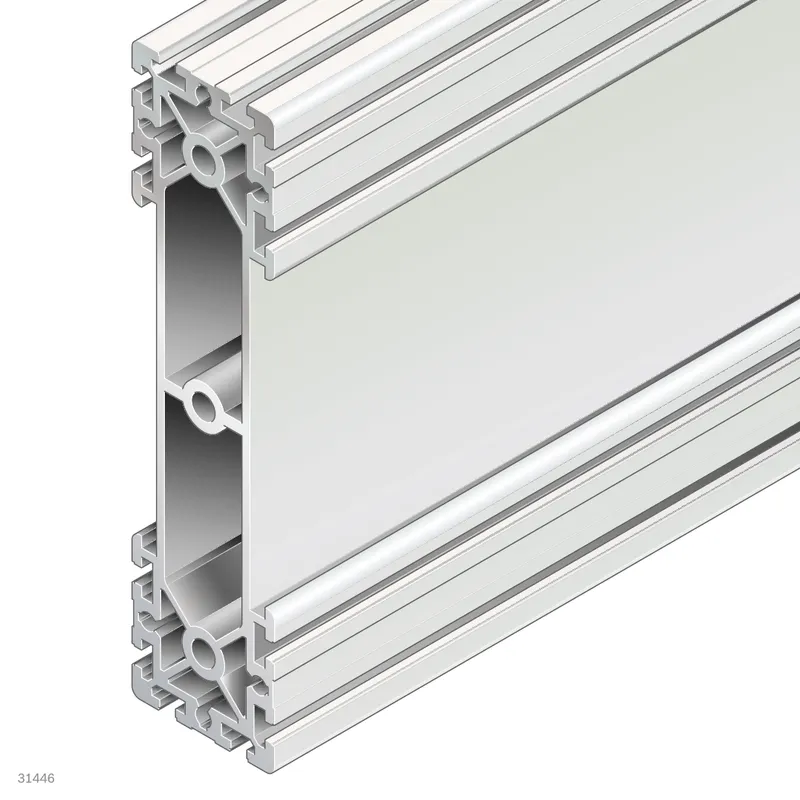

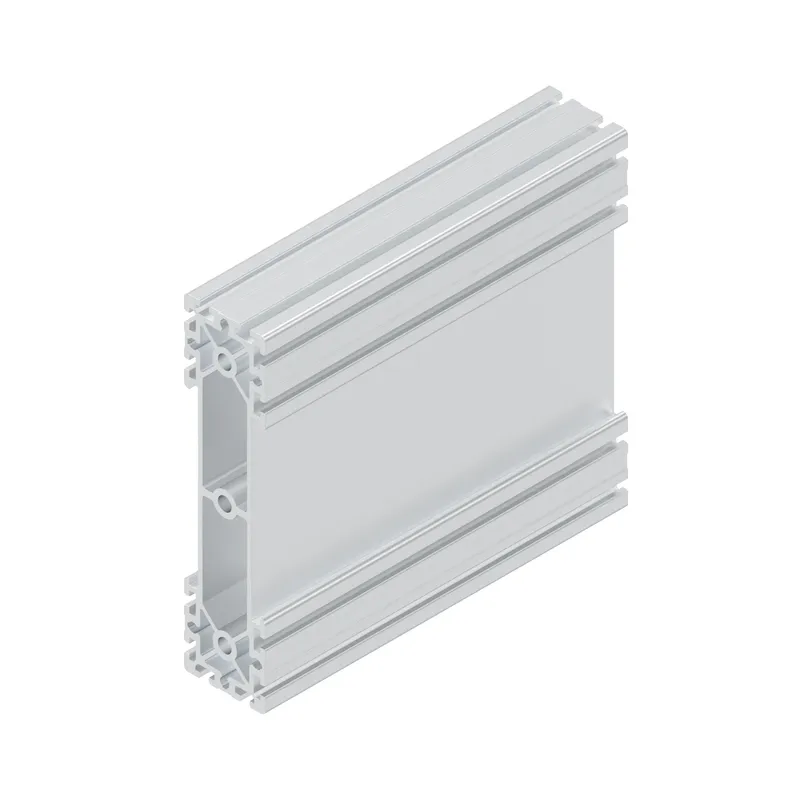

STRUT PROFILE 90X360 M16/M16

Name: STRUT PROFILE 90X360 M16/M16
Brand: Bosch Rexroth
SKU: 3842993435

MPN: 3842993435 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842993435 be shipped?

3842993435 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842993435 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842993435 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842993435, subject to availability and destination.

Strut profile 90x360 M16/M16

Specifications

Condition on delivery	Profile finishing
Cross-section	90x360
Modular dimension [mm]	45
Profile slot	10
Dimensions	90x360
Open slots	12.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	240
Packaging unit	1
Mass [m] [kg]	24.4

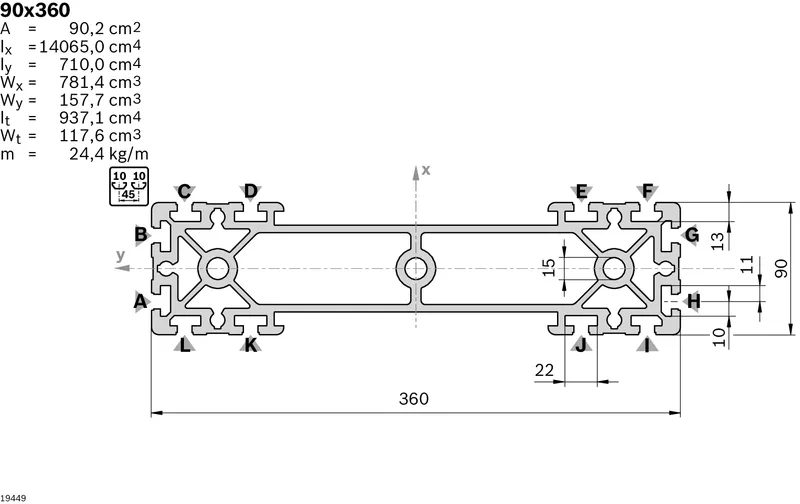

Area moment of inertia in x-direction [lx] [cm⁴]	14065
Area moment of inertia in y-direction [ly] [cm⁴]	710
Profile surface [A] [cm²]	90.2
Moment of resistance in the x-direction [Wx] [cm³]	781.4
Moment of resistance in the y-direction [Wy] [cm³]	157.7
Torsional moment of inertia [It] [cm⁴]	937.1
Moment of torsion resistance [Wt] [cm³]	117.6
Profile adaption	M16: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 90x90, black; Cover cap 90x90, signal gray; Cover cap with hole 90x90, black; Cover cap with hole 90x90, signal gray
Weight [kg]	0
