STRUT PROFILE 80X120L M12/-

Name: STRUT PROFILE 80X120L M12/-
Brand: Bosch Rexroth
SKU: 3842993202

MPN: 3842993202 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842993202 be shipped?

3842993202 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842993202 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842993202 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842993202, subject to availability and destination.

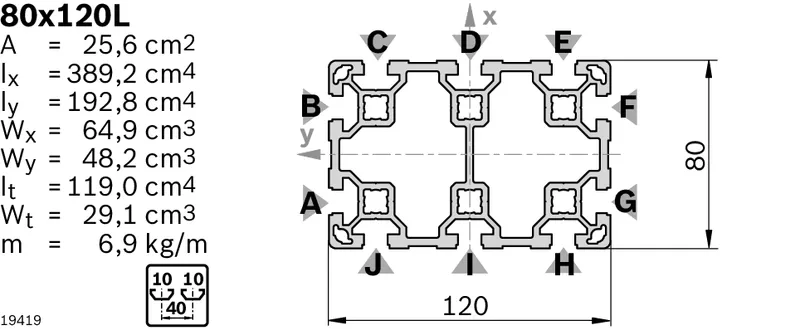

Strut profile 80x120L M12/-

Specifications

Condition on delivery	Profile finishing
Cross-section	80x120L
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	80x120
Open slots	10.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	60
Packaging unit	1
Mass [m] [kg]	6.9
Area moment of inertia in x-direction [lx] [cm⁴]	389.2
Area moment of inertia in y-direction [ly] [cm⁴]	192.8
Profile surface [A] [cm²]	25.6
Moment of resistance in the x-direction [Wx] [cm³]	64.9
Moment of resistance in the y-direction [Wy] [cm³]	48.2
Torsional moment of inertia [It] [cm⁴]	119.0
Moment of torsion resistance [Wt] [cm³]	29.1
Profile adaption	D17: in slots C/J, D/I, E/H; D17V: in slots A/G, B/F; M12: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 80x120, black; Cover cap 80x120, signal gray
Weight [kg]	0
