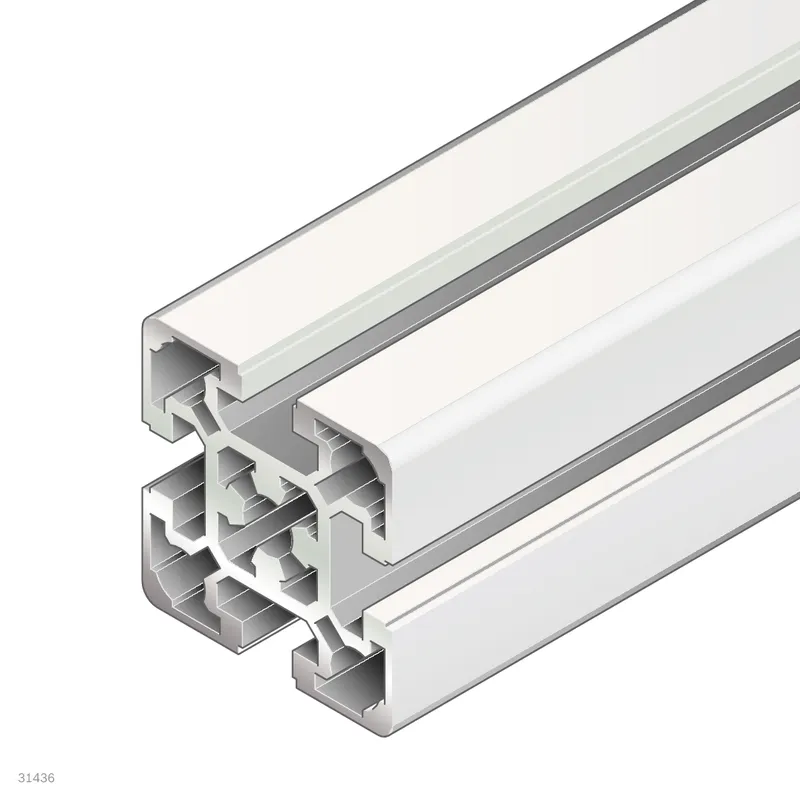

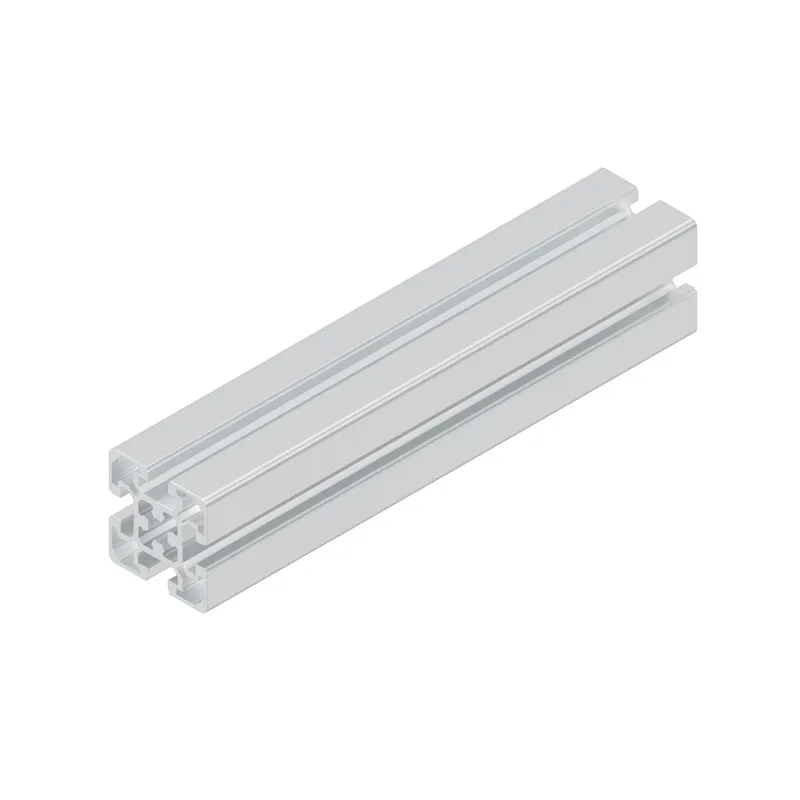

STRUT PROFILE 50X50L D17/D17V

Name: STRUT PROFILE 50X50L D17/D17V
Brand: Bosch Rexroth
SKU: 3842993162

MPN: 3842993162 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842993162 be shipped?

3842993162 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842993162 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842993162 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842993162, subject to availability and destination.

Strut profile 50x50L D17/D17V

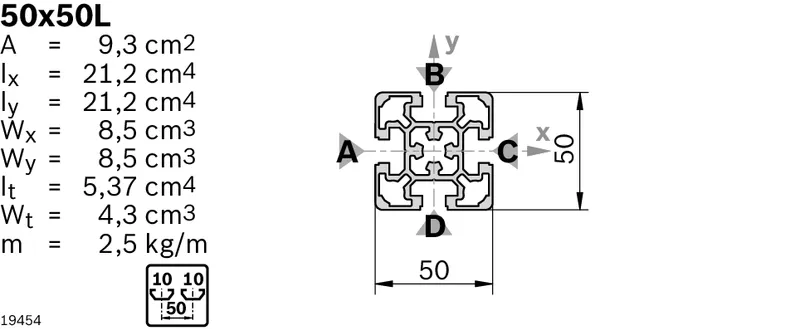

Specifications

Condition on delivery	Profile finishing
Cross-section	50x50L
Modular dimension [mm]	50
Profile slot	10
Dimensions	50x50
Open slots	4.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	80
Packaging unit	1
Mass [m] [kg]	2.5
Area moment of inertia in x-direction [lx] [cm⁴]	21.2
Area moment of inertia in y-direction [ly] [cm⁴]	21.2
Profile surface [A] [cm²]	9.3
Moment of resistance in the x-direction [Wx] [cm³]	8.5
Moment of resistance in the y-direction [Wy] [cm³]	8.5
Torsional moment of inertia [It] [cm⁴]	5.37
Moment of torsion resistance [Wt] [cm³]	4.3
Material	Aluminum, anodized
Recommended accessories	Cover cap 50x50, black; Cover cap 50x50, signal gray; Cover cap with hole 50x50, black; Cover cap with hole 50x50, signal gray
Weight [kg]	0
