STRUT PROFILE 45X60 M16/-

Name: STRUT PROFILE 45X60 M16/-
Brand: Bosch Rexroth
SKU: 3842990573

MPN: 3842990573 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842990573 be shipped?

3842990573 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842990573 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842990573 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842990573, subject to availability and destination.

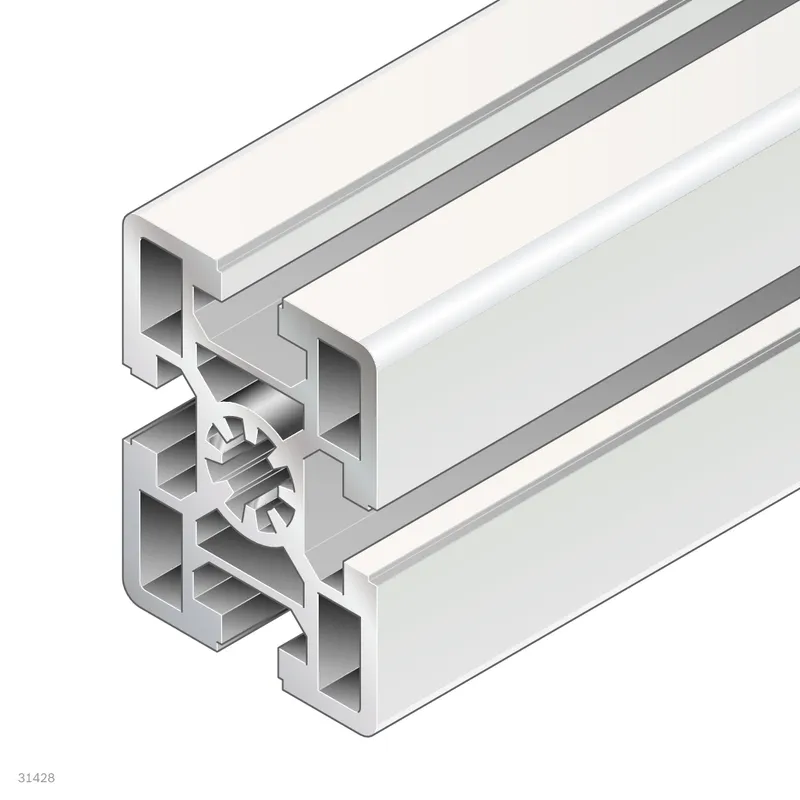

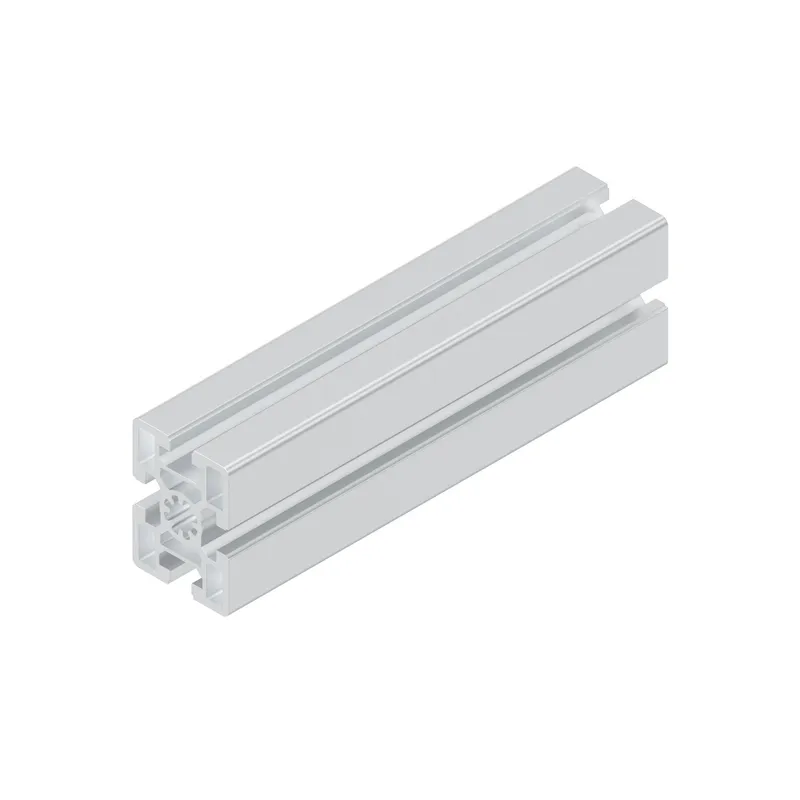

Strut profile 45x60 M16/-

Specifications

Condition on delivery	Profile finishing

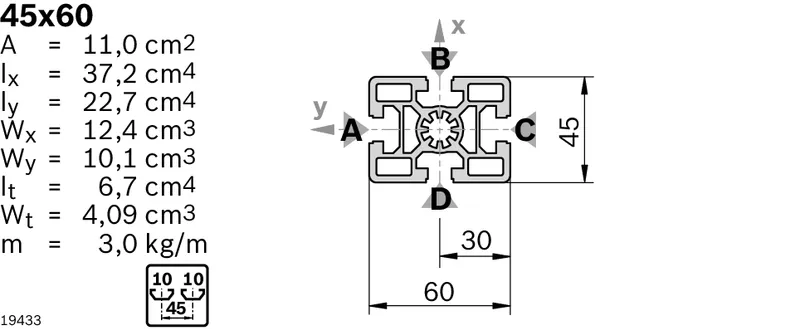

Cross-section	45x60
Modular dimension [mm]	45
Profile slot	10
Dimensions	45x60
Open slots	4.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	120
Packaging unit	1
Mass [m] [kg]	3
Area moment of inertia in x-direction [lx] [cm⁴]	37.2
Area moment of inertia in y-direction [ly] [cm⁴]	22.7
Profile surface [A] [cm²]	11
Moment of resistance in the x-direction [Wx] [cm³]	12.4
Moment of resistance in the y-direction [Wy] [cm³]	10.1
Torsional moment of inertia [It] [cm⁴]	6.7
Moment of torsion resistance [Wt] [cm³]	4.09
Profile adaption	D9.8, D17: in slots B/D; D9.8V, D17V: in slots A/C; F1: in slot A; LF: in slots A/C
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x60, black; Cover cap 45x60, signal gray; Cover cap with hole 45x60, black; Cover cap with hole 45x60, signal gray
Weight [kg]	0
