STRUT PROFILE 45X60 20X6070MM

Name: STRUT PROFILE 45X60 20X6070MM
Brand: Bosch Rexroth
SKU: 3842557200

MPN: 3842557200 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842557200 be shipped?

3842557200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842557200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842557200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842557200, subject to availability and destination.

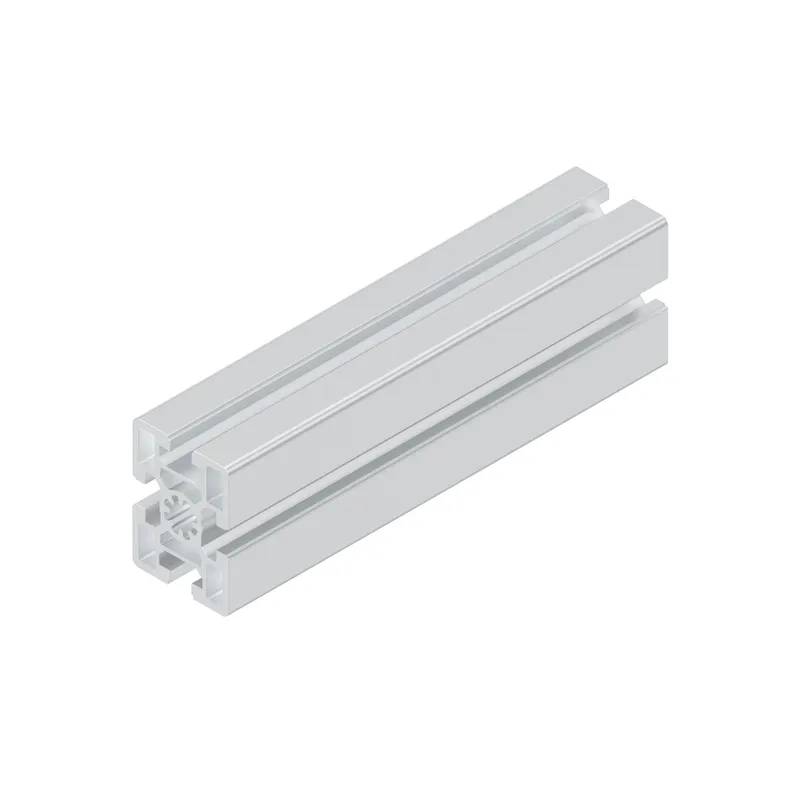

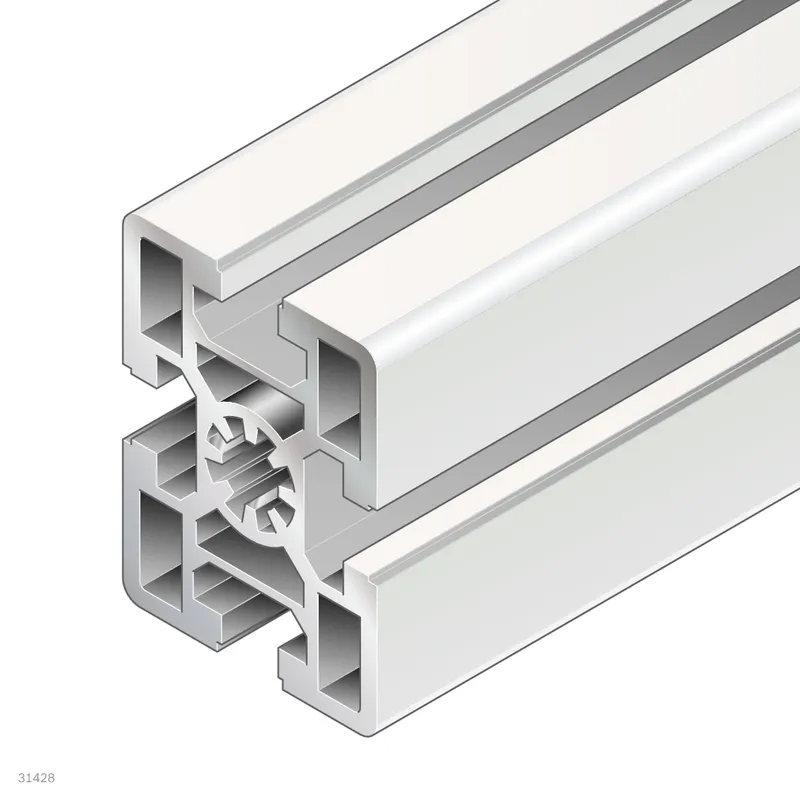

Strut profile 45x60, 20xL=6070mm

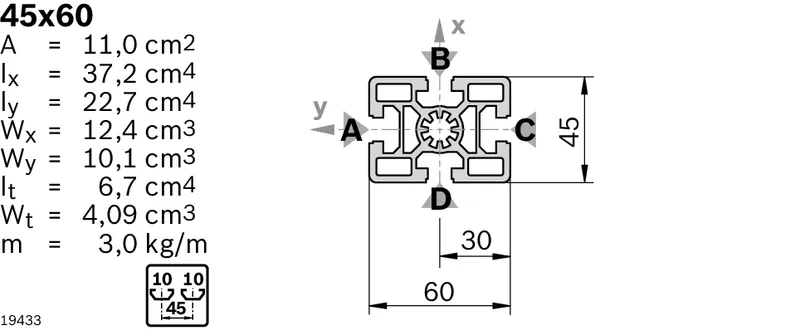

Specifications

Condition on delivery	Packaging unit in standard length
Cross-section	45x60
Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Dimensions	45x60
Open slots	4.0
Profile type	Standard
Color	Natural
Delivery unit	20
Mass [m] [kg]	3
Area moment of inertia in x-direction [lx] [cm⁴]	37.2
Area moment of inertia in y-direction [ly] [cm⁴]	22.7
Profile surface [A] [cm²]	11
Moment of resistance in the x-direction [Wx] [cm³]	12.4
Moment of resistance in the y-direction [Wy] [cm³]	10.1
Torsional moment of inertia [It] [cm⁴]	6.7
Moment of torsion resistance [Wt] [cm³]	4.09
Profile adaption	D9.8, D17: in slots B/D; D9.8V, D17V: in slots A/C; F1: in slot A; LF: in slots A/C
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x60, black ESD; Cover cap 45x60, signal gray; Cover cap with hole 45x60, black ESD; Cover cap with hole 45x60, signal gray
Weight [kg]	366.5
