STRUT PROFILE 90X180 3X6070MM

Name: STRUT PROFILE 90X180 3X6070MM
Brand: Bosch Rexroth
SKU: 3842553617

MPN: 3842553617 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842553617 be shipped?

3842553617 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842553617 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842553617 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842553617, subject to availability and destination.

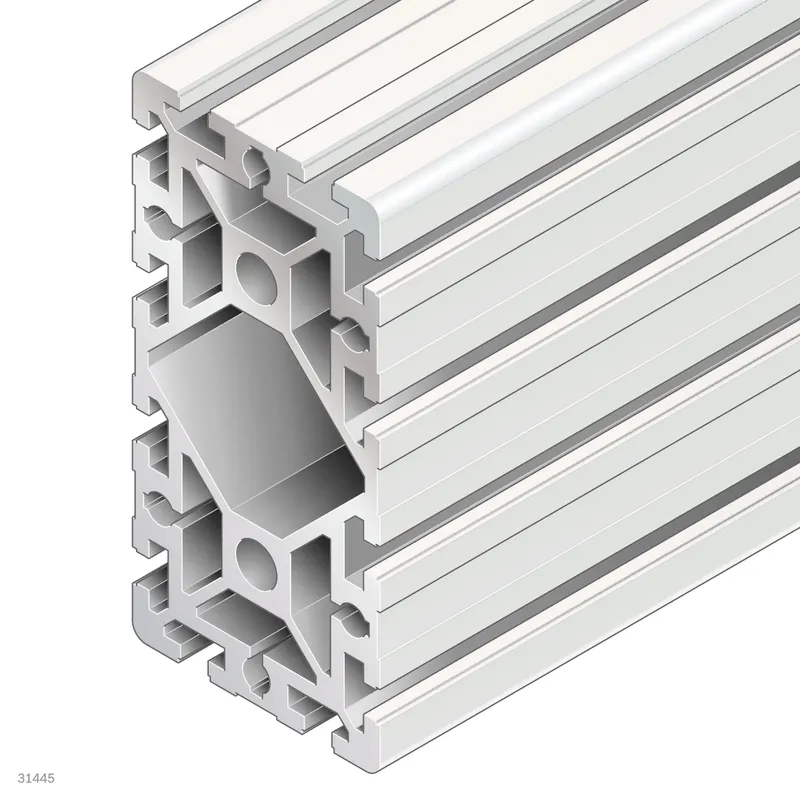

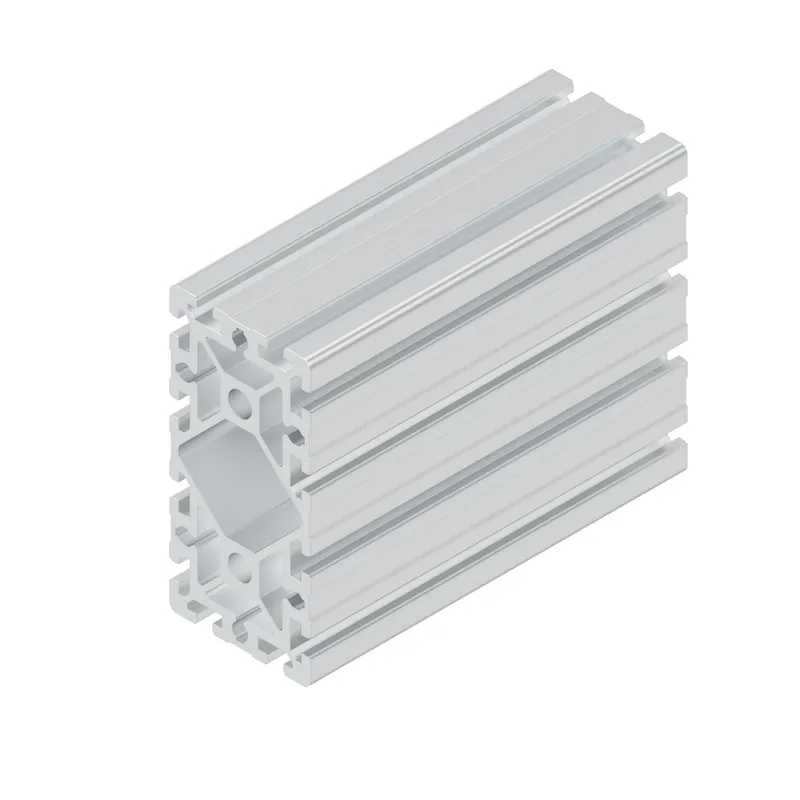

Strut profile 90x180, 3xL=6070mm

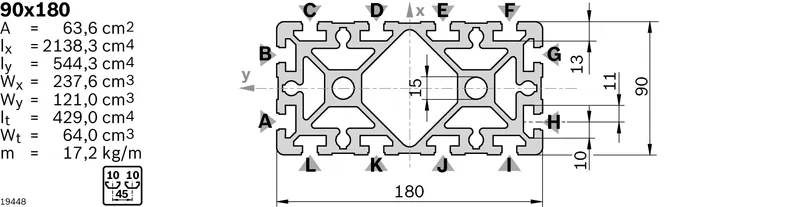

Specifications

Condition on delivery	Packaging unit in standard length
Cross-section	90x180
Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Dimensions	90x180
Open slots	12.0
Profile type	Standard
Color	Natural
Delivery unit	3
Mass [m] [kg]	17.2
Area moment of inertia in x-direction [lx] [cm⁴]	2138.3
Area moment of inertia in y-direction [ly] [cm⁴]	544.3
Profile surface [A] [cm²]	63.6
Moment of resistance in the x-direction [Wx] [cm³]	237.6
Moment of resistance in the y-direction [Wy] [cm³]	121
Torsional moment of inertia [It] [cm⁴]	429.0
Moment of torsion resistance [Wt] [cm³]	64.0
Profile adaption	D17V: in slots A/H, B/G; LF-S: in slots D/K, E/J; LF: in slots A/H, B/G; M16: in all core holes
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 90x90, black; Cover cap 90x90, signal gray; Cover cap with hole 90x90, black; Cover cap with hole 90x90, signal gray
Weight [kg]	336.3
