STRUT PROFILE 45X45L 20X6070MM

Name: STRUT PROFILE 45X45L 20X6070MM
Brand: Bosch Rexroth
SKU: 3842553611

MPN: 3842553611 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842553611 be shipped?

3842553611 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842553611 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842553611 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842553611, subject to availability and destination.

Strut profile 45x45L, 20XL=6070mm

Specifications

Condition on delivery	Packaging unit in standard length

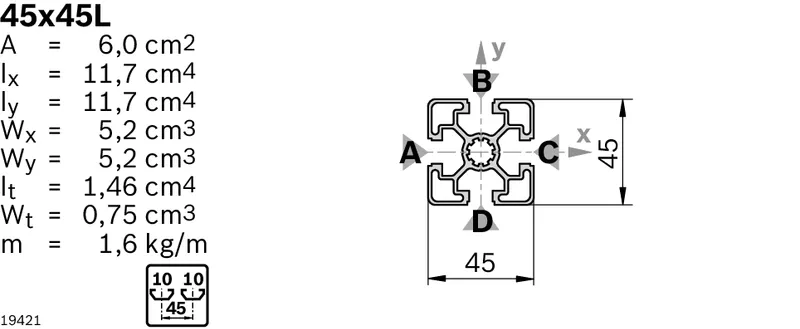

Cross-section	45x45L
Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Dimensions	45x45
Open slots	4.0
Profile type	Standard
Color	Natural
Delivery unit	20
Mass [m] [kg]	1.6
Area moment of inertia in x-direction [lx] [cm⁴]	11.7
Area moment of inertia in y-direction [ly] [cm⁴]	11.7
Profile surface [A] [cm²]	6
Moment of resistance in the x-direction [Wx] [cm³]	5.2
Moment of resistance in the y-direction [Wy] [cm³]	5.2
Torsional moment of inertia [It] [cm⁴]	1.46
Moment of torsion resistance [Wt] [cm³]	0.75
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cap with hole 45x45, black; Cover cap 45x45, black; Cover cap 45x45, signal gray; Cover cap with hole 45x45, signal gray
Weight [kg]	216
