T-SLOT STONE 10 M5 SUSPENDED VA
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sliding block, sliding block profile |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842547808 be shipped?
3842547808 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842547808 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842547808 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842547808, subject to availability and destination.

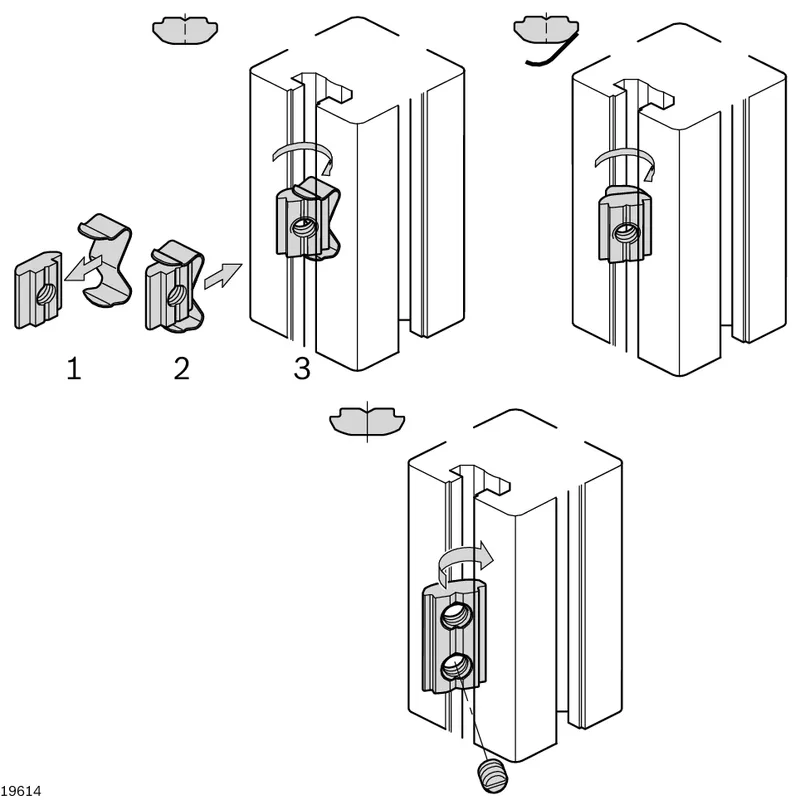

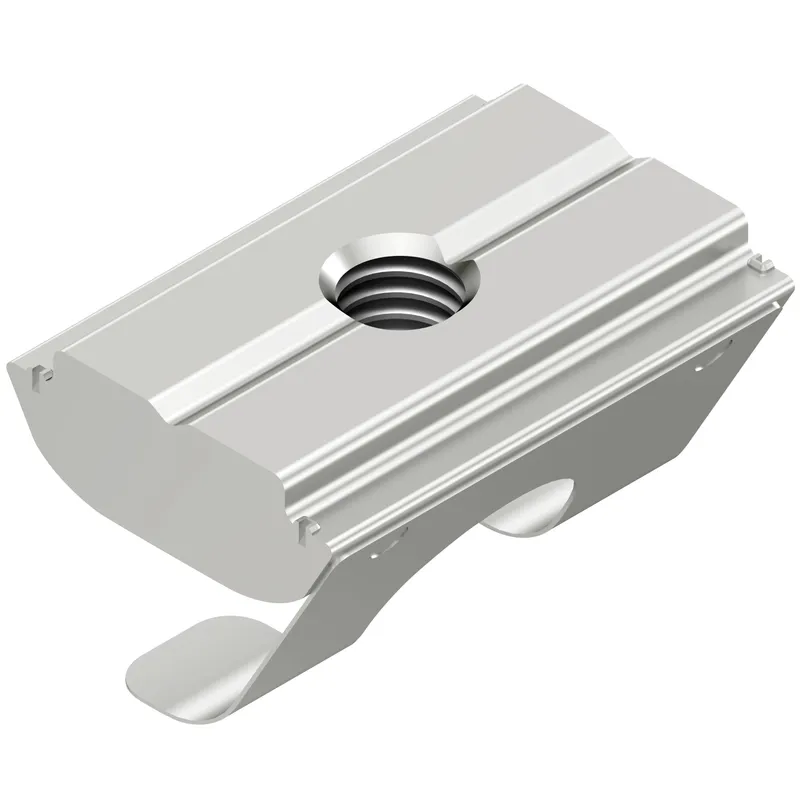

Swivel-in sliding block, with spring groove 10 steel, stainless M5 The swivel-in sliding block with spring can be inserted directly at the assembly point and fixed in position thanks to attached springs Profile finishing: not required
Specifications
Specifications
| Profile slot | 10 |
| ESD | Yes |
| Swivel-in | Yes |
| Thread size | M5 |

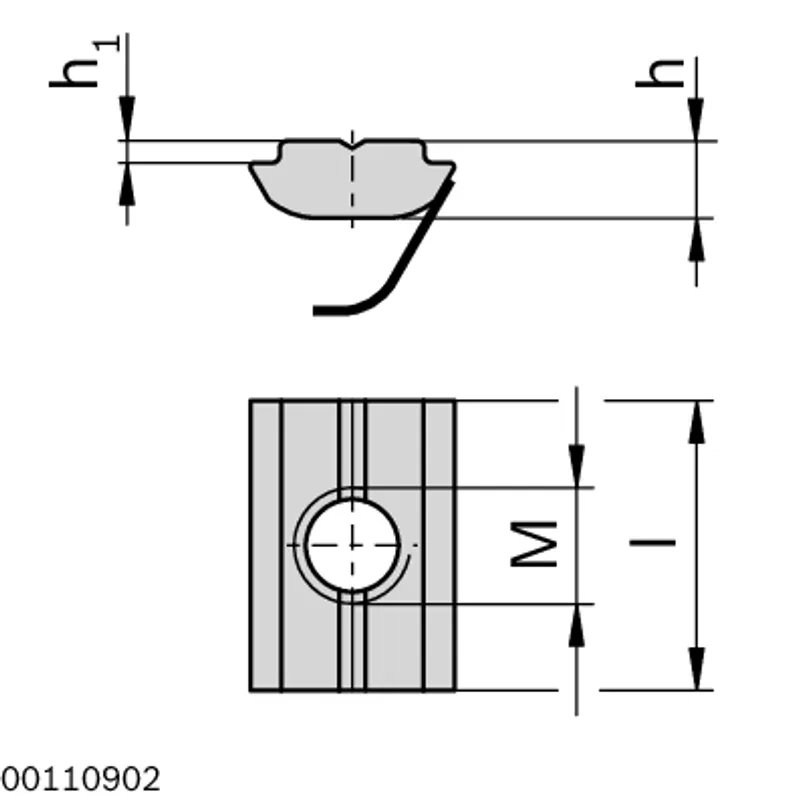

| Dimension h1 [mm] | 1.5 |
| Dimension h [mm] | 5.3 |
| Length [l] [mm] | 20 |
| Packaging unit | 100 |
| Max. groove retention [Fmax] [N] | 18000 |
| Min. groove retention [Fmin] [N] | 8000 |
| Material information | Spring: Spring steel, stainless; Steel, stainless |
| Material | Steel, stainless |
| Weight [kg] | 0.01 |
