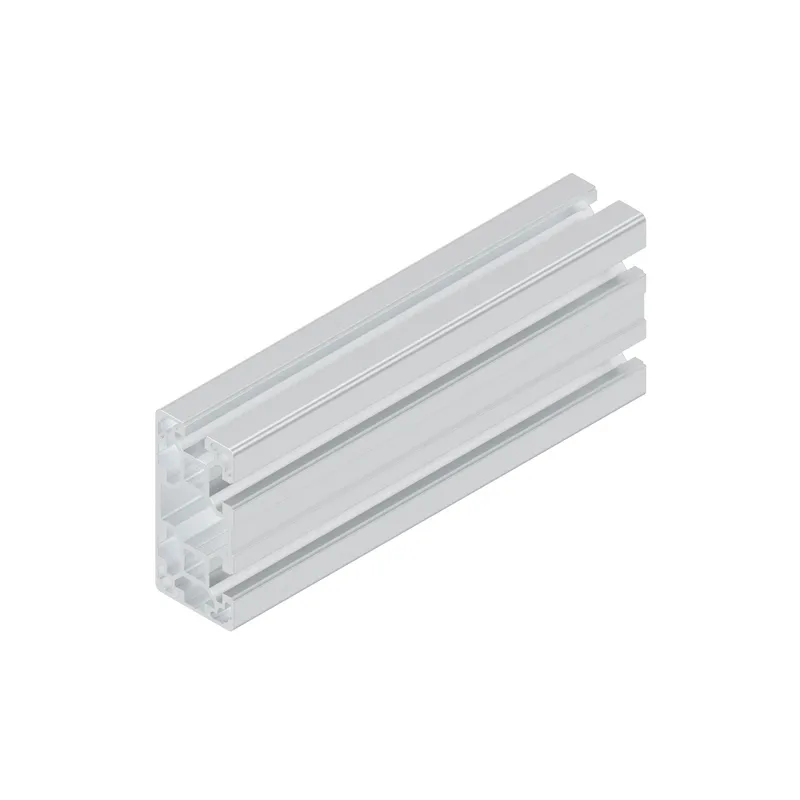

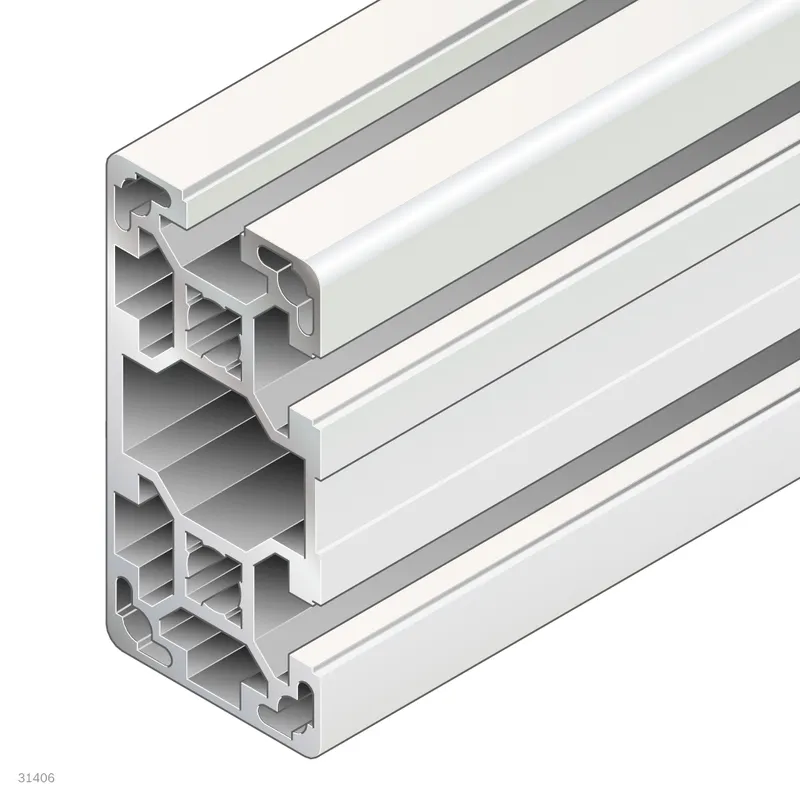

STRUT PROFILE 40X80L 3NVS L=6170

Name: STRUT PROFILE 40X80L 3NVS L=6170
Brand: Bosch Rexroth
SKU: 3842538329

MPN: 3842538329 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842538329 be shipped?

3842538329 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842538329 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842538329 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842538329, subject to availability and destination.

Strut profile 40x80L 3NVS

Specifications

Condition on delivery	Single rod in standard length

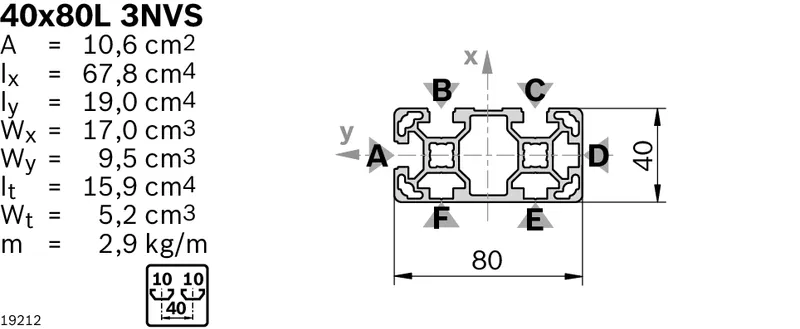

Cross-section	40x80L 3NVS
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	40x80
Open slots	3.0
Profile type	3NVS
Color	Natural
Packaging unit	1
Mass [m] [kg]	2.9
Area moment of inertia in x-direction [lx] [cm⁴]	67.8
Area moment of inertia in y-direction [ly] [cm⁴]	19
Profile surface [A] [cm²]	10.6
Moment of resistance in the x-direction [Wx] [cm³]	17
Moment of resistance in the y-direction [Wy] [cm³]	9.5
Torsional moment of inertia [It] [cm⁴]	15.9
Moment of torsion resistance [Wt] [cm³]	5.2
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 40x80, black; Cover cap 40x80, signal gray; Cover cap with hole 40x80, black; Cover cap with hole 40x80, signal gray
Weight [kg]	17.4
