STRUT PROFILE 40X40L 1N L=6170

Name: STRUT PROFILE 40X40L 1N L=6170
Brand: Bosch Rexroth
SKU: 3842529362

MPN: 3842529362 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Strut profile
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842529362 be shipped?

3842529362 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842529362 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842529362 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842529362, subject to availability and destination.

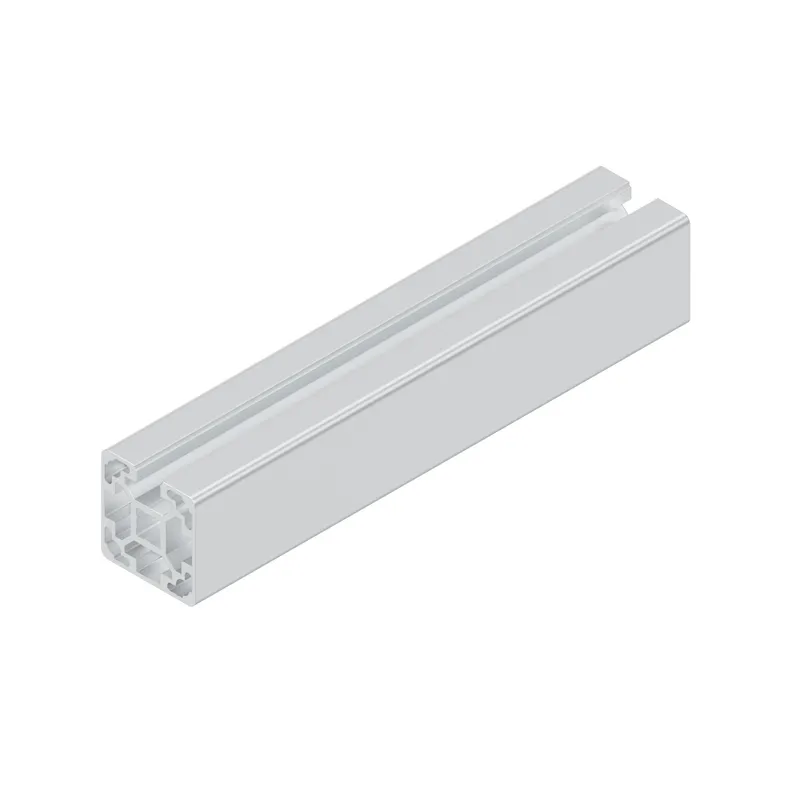

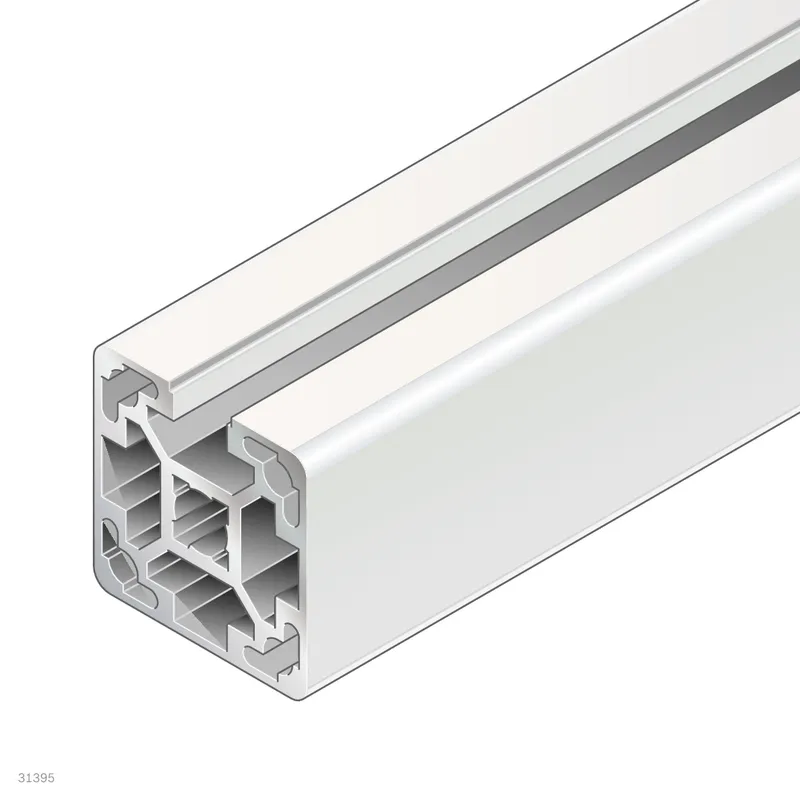

Strut profile 40x40L 1N

Specifications

Condition on delivery	Single rod in standard length

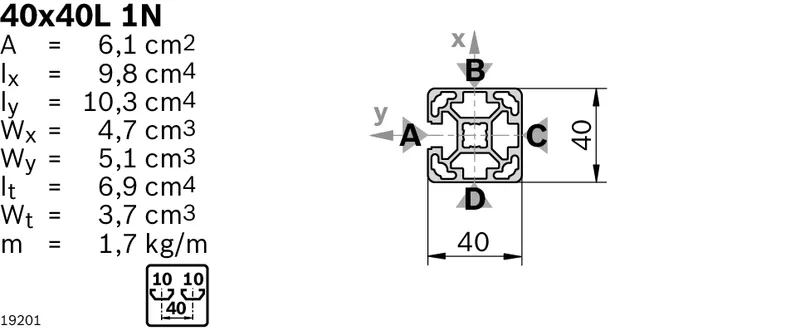

Cross-section	40x40L 1N
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	40x40
Open slots	1.0
Profile type	1N
Color	Natural
Packaging unit	1
Mass [m] [kg]	1.7
Length [L]	6070.0
Material	Aluminum, anodized
Area moment of inertia in x-direction [lx] [cm⁴]	9.8
Area moment of inertia in y-direction [ly] [cm⁴]	10.3
Profile surface [A] [cm²]	6.1
Moment of resistance in the x-direction [Wx] [cm³]	4.7
Moment of resistance in the y-direction [Wy] [cm³]	5.1
Torsional moment of inertia [It] [cm⁴]	6.9
Moment of torsion resistance [Wt] [cm³]	3.7
Recommended accessories	Cover cap 40x40, black; Cover cap 40x40, signal gray; Cover cap with hole 40x40, black; Cover cap with hole 40x40, signal gray
Weight [kg]	10.19
