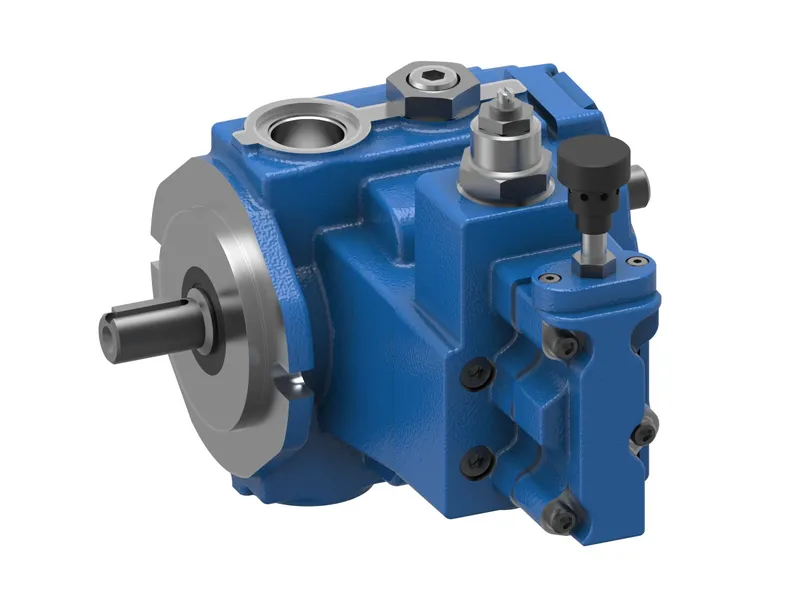

VANE PUMP 0513R18C3VPV63SM21HYB05
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Rotary vane variable displacement pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0513700218 be shipped?
0513700218 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0513700218 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0513700218 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0513700218, subject to availability and destination.
High reliability thanks to a robust design. Low noise and pulsation level. Dynamic control behavior. Pressure controller with optional hydraulic remote pressure adjustment With limitation of the maximum flow With FKM seals
Specifications
Specifications
| Displacement type | variable |
| Size [cm³] | 63 |
| Product family | VPV |
| Operating pressure, max. [bar] | 210.0 |
| Max. flow [l/min] | 113.0 |
| Controls | with hydraulic actuation |
| Through-drive | without |
| Direction of rotation | clockwise rotation |
| Shaft end | Cylindrical Ø 31.7 mm with fitting key |
| Mounting flange | 2-hole mounting flange 127-2 according to ISO 3019-1 |
| Connection type, working port | Flange connection |
| Hydraulic fluid | HETG; HFDU; HL; HLP; HEES; HEPG; HLPD; HVLP; HVLPD |
| Seals | FKM |
| Weight [kg] | 58 |
