Available on request

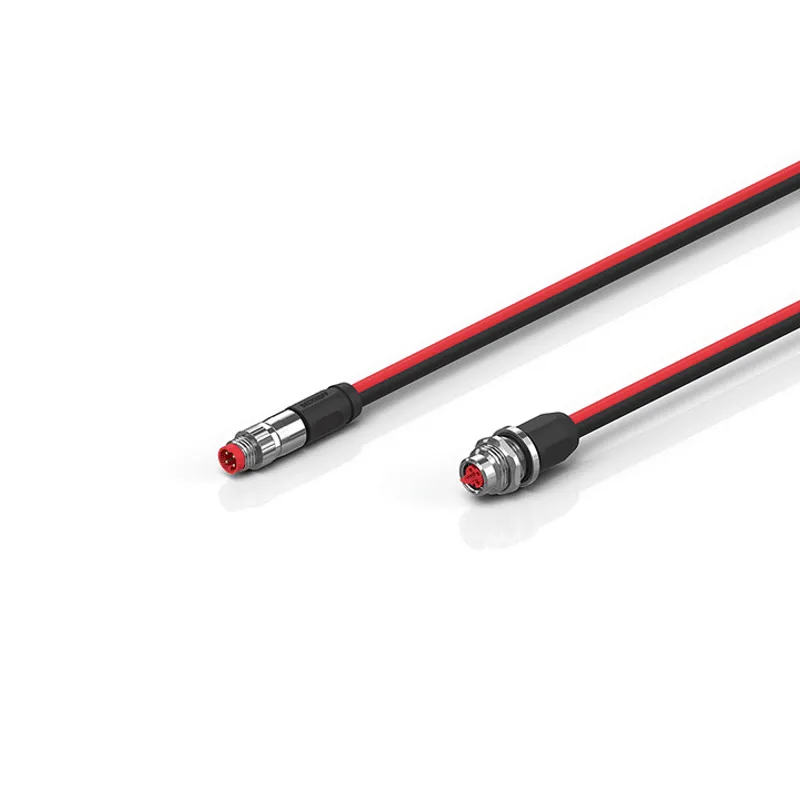

EtherCAT P cable, AWG22, PUR, capable of torsion
MPN: ZK7000-0105-6xxx · Brand: Beckhoff
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | EtherCAT and fieldbus cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZK7000-0105-6xxx be shipped?
ZK7000-0105-6xxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK7000-0105-6xxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK7000-0105-6xxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK7000-0105-6xxx, subject to availability and destination.
M8, plug, straight, male, 4-pin, P-coded – M8, socket (4-pin/straight)
Specifications
Specifications
| Shielding | yes |
| Installation size | M8 |
| Connector type | flange |
| Contact type | female |
| Number of positions (face) | 4-pin |
| Coding | EtherCAT P-coded |
| Rated current | 3 A at 40°C (according to IEC 61076-2-104) |
| Rated voltage | 24 V DC (according to IEC 61076-2-104) |
| Recommended torque, nut | 0.6 ... 0.8 Nm |
| Mating cycles | ≥ 100 |
| Cross-section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | suitable for torsion/robotic application |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 6.3 mm ± 0.2 mm (0.248" ± 0.0079") |
| Min. bending radius, moved | 10 x outer cable diameter |
| Min. bending radius, fixed installation | 5 x outer cable diameter |
| Jacket color | black (similar to RAL 9005) with red stripe (similar to RAL 3020) |
| A1 | 41.00 mm |
| A2 | Ø10.10 mm |
| B1 | 34.50 mm |
| B2 | M12 |
