7.5//5HP,3510//2925RPM,3PH,60//50HZ

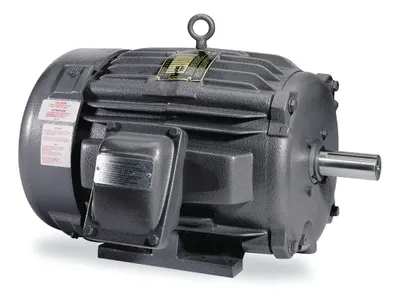

Name: ABB EM7145T – 7.5//5HP,3510//2925RPM,3PH,60//50HZ
Brand: ABB
SKU: EM7145T

MPN: EM7145T · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can EM7145T be shipped?

EM7145T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM7145T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM7145T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM7145T, subject to availability and destination.

5.000 hp, 7.500 hp, 3510//2925 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 213T, F1

Specifications

Additional Information

ABB Type Designation	7.5//5HP,3510//2925RPM,3PH,60//50HZ
Ambient Temperature	40 °C
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	EM7145T
Certification Agency	CSA, CSA EEV, UL, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Design	B
Dimension Diagram	07LYH271
Efficiency Level	IE3, Premium Efficiency (NEMA 12-12)
Enclosure Type	XPFC
ETIM 7	EC001851 - Electric motor
Explosion Proof Group Class	CLI GP D, CLII GP F,G G
Explosion Protection	Explosion-proof
Frame Material	Iron
Frame Size	Undefined
Frequency (f)	50 Hz, 60 Hz Hz
Global Commercial Alias	EM7145T
Gross Weight	69.916 kg kg
Horsepower Rating UL/CSA	5.000 Hp, 7.500 Hp
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
Insulation Class	B
Invoice Description	5.000 hp, 7.500 hp, 3510//2925 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 213T, F1 V
Made To Order	No
Marketing Description	5.000 hp, 7.500 hp, 3510//2925 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 213T, F1 V
Minimum Order Quantity	0.000 piece
Motor Base Type	Rigid
Motor Frame Size	213T
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Order Multiple	0.000 piece
Power Factor	86 %
Product Name	-
Product Net Depth / Length	19.90 in
Product Net Weight	69.916 kg kg
Quote Only	No
Rated Current (In)	18 A, 9 A, 15.2 A, 7.6 A A
Rated Efficiency	89.5 %
Rated Speed	3,510 r/min, 2,925 r/min
RoHS Declaration	RoHS Compliant
Selling Unit of Measure	piece
Service Factor	1.00
Service Factor Percentage	1.00 %
Shaft Diameter	1.375 in
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class	T3C
Type of Duty	CONT
UNSPSC	26101112
Voltage Rating	460 V, 380 V, 230 V, 190 V V
